FRONT FORK
ZR1100D1 ZRX1100 1997 FRANCE NL NR SD

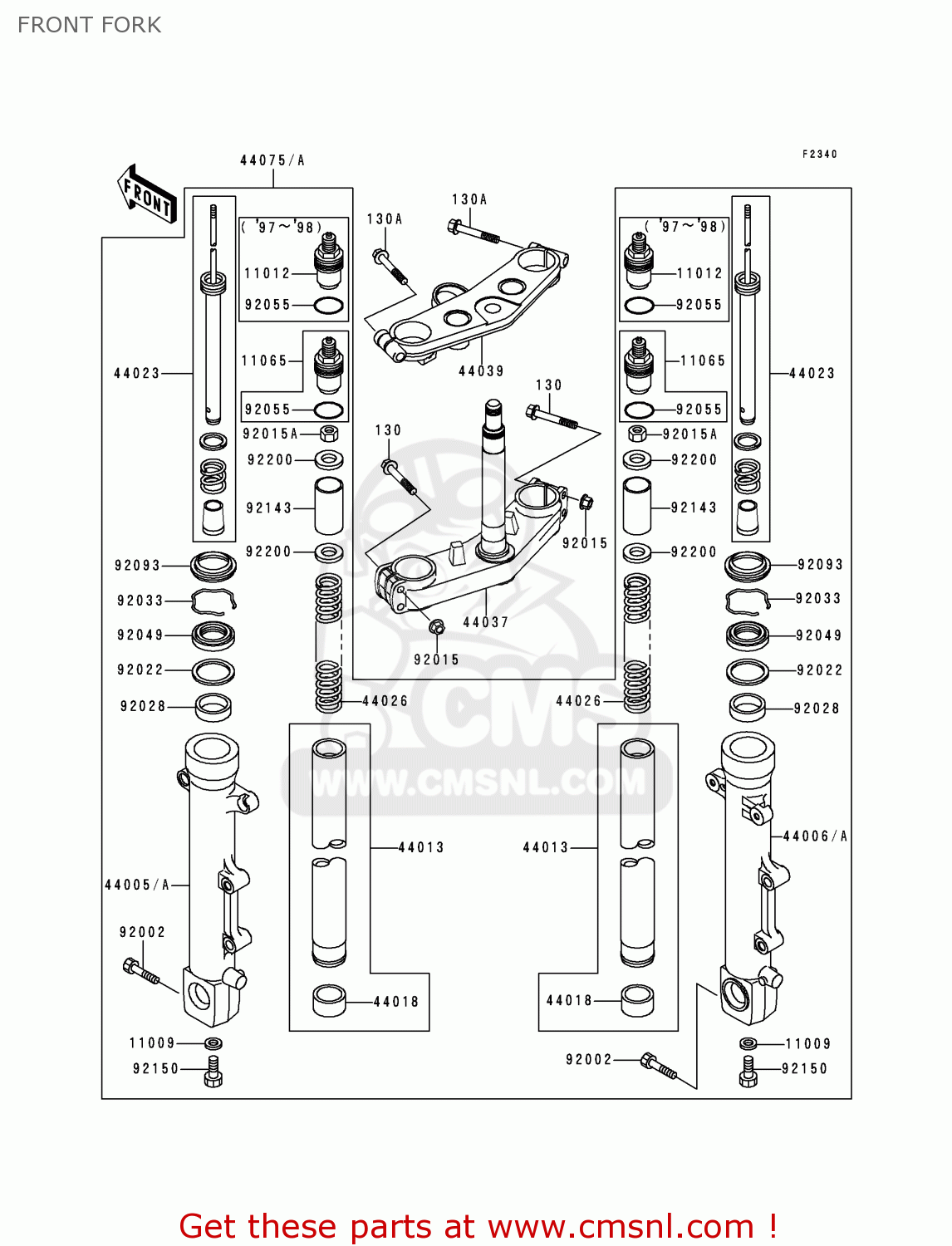

Front fork diagram ZR1100D1 ZRX1100 1997 FRANCE NL NR SD
FRONT FORK ZR1100D1 ZRX1100 1997 FRANCE NL NR SD
×
prices are in EUR
ref
part #
description
quantity
130
130J0850
ref: 130
BOLT-FLANGED,8X50
€ 2.50
130A
130J1045
ref: 130A
BOLT-FLANGED
€ 4.50
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11012
110121716
ref: 11012
CAP
€ 124.50
44005
440051376
ref: 44005
PIPE-LEFT FORK OUTER
€ 425.00
44006
440061375
ref: 44006
PIPE-RIGHT FORK OUTER
€ 425.00
44013
440131436
ref: 44013
PIPE-FORK INNER
€ 355.00
44018
440181060
ref: 44018
PISTON-FORK,INNER PIP
€ 22.00
44023
440231115
ref: 44023
CYLINDER-SET-FORK
€ 261.00
44026
440261646
ref: 44026
SPRING-FRONT FORK
€ 73.50
44037
440371355
ref: 44037
HOLDER-FORK UNDER
€ 469.50
44039
440391270
ref: 44039
HOLDER-FORK UPPER
€ 268.50
44075
440751081
ref: 44075
DAMPER-SET-FORK
€ 2,293.00
92002
920021847
ref: 92002
BOLT,SOCKET,8X45
€ 3.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151795
ref: 92015A
NUT
€ 3.50
92022
920221299
ref: 92022
WASHER
€ 5.50
92028
920281784
ref: 92028
BUSHING
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92049
920491496
ref: 92049
SEAL-OIL,FORK OUTER T
€ 14.00
92055
920551123
ref: 92055
RING-O
€ 4.00
92093
920931480
ref: 92093
SEAL,FORK OUTER TUBE
€ 13.00
92143
921431065
ref: 92143
COLLAR,L=55.5
€ 5.50
92150
921501398
ref: 92150
BOLT,12X22
€ 5.50
92200
922001349
ref: 92200
WASHER
€ 7.00
