CHASSIS ELECTRICAL EQUIPMENT

ZR1100D1 ZRX1100 1997 FRANCE NL NR SD

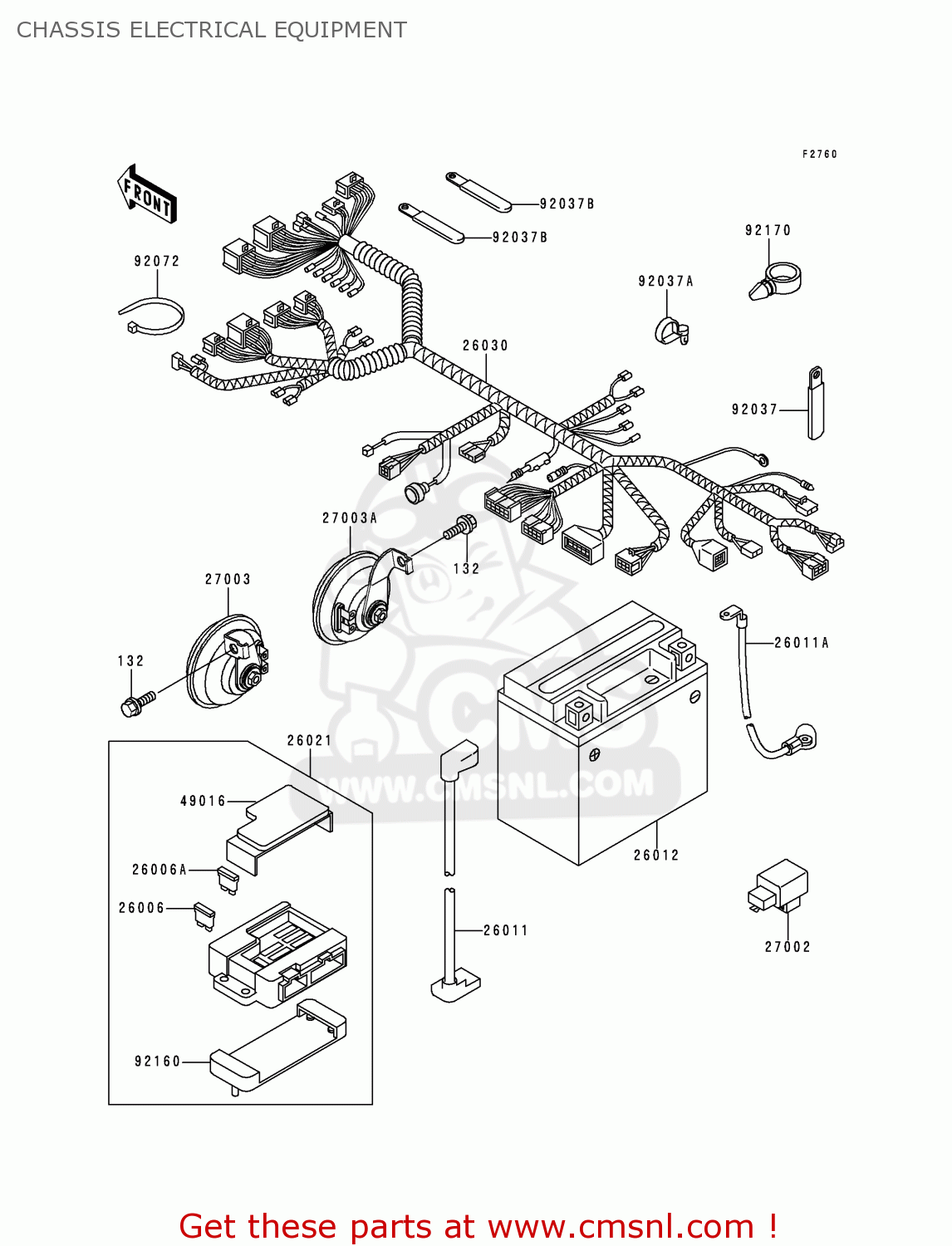

Chassis electrical equipment diagram ZR1100D1 ZRX1100 1997 FRANCE NL NR SD

prices are in EUR

ref

part #

description

quantity

132

132J0812
ref: 132

BOLT-FLANGED-SMALL,8X

€ 1.50

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111652
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 21.00

26011A

260111653
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 19.00

26012

260121334
ref: 26012

BATTERY,YTX14-BS,12V

€ 124.50

26021

260211095
ref: 26021

JUNCTION BOX

€ 135.50

26030

260301492
ref: 26030

HARNESS,MAIN

€ 316.00

27002

270021101
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270031402
ref: 27003

HORN,LH

€ 66.50

27003A

270031403
ref: 27003A

HORN,RH

€ 70.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371903
ref: 92037A

CLAMP

€ 5.00

92037B

920371993
ref: 92037B

CLAMP

€ 3.50

92072

920721237
ref: 92072

BAND,L=250

€ 2.00

92160

921601650
ref: 92160

DAMPER,JUNCTION BOX

€ 9.50

92170

921701067
ref: 92170

CLAMP,HOSE

€ 5.00
