FRAME

ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST

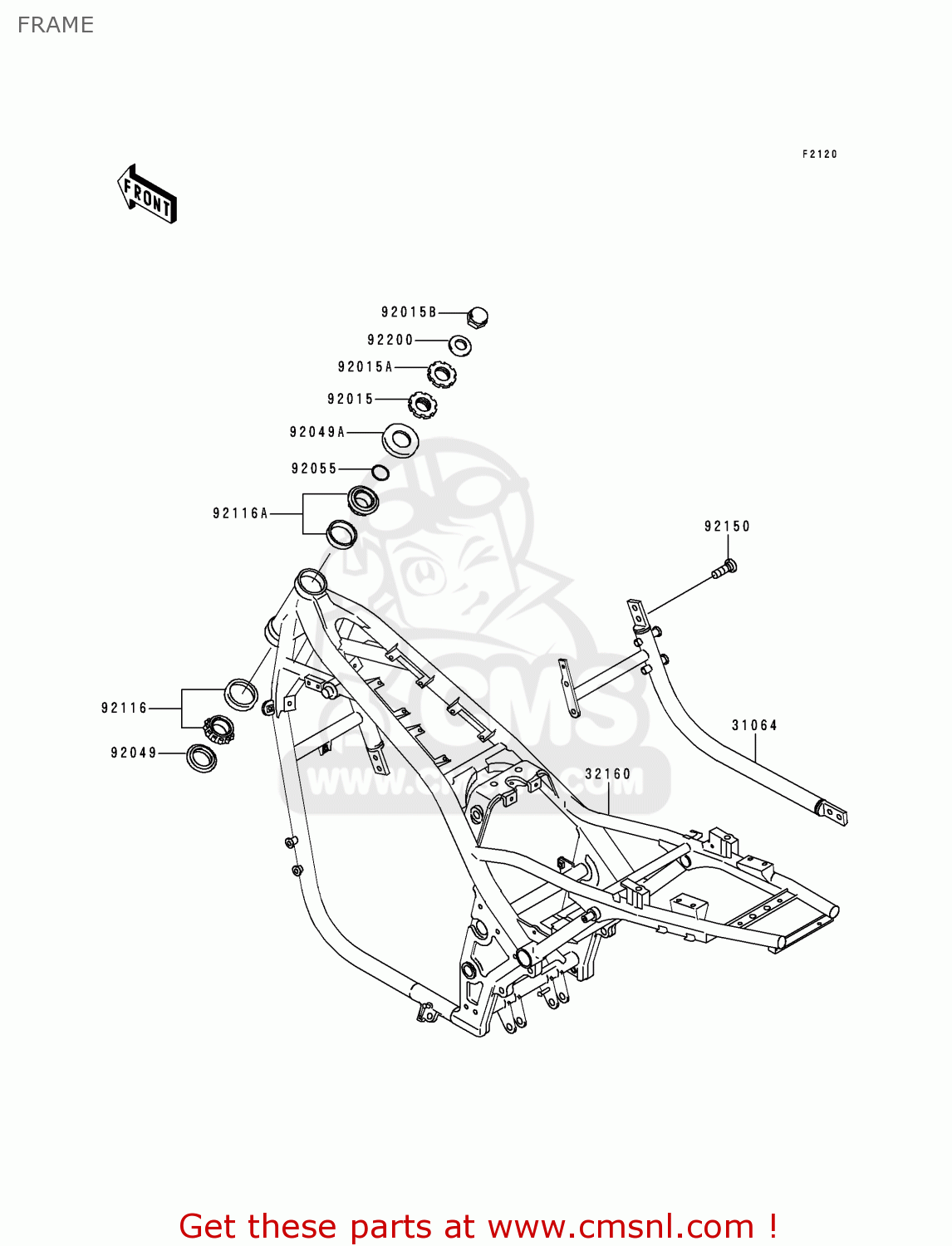

Frame diagram ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST

prices are in EUR

ref

part #

description

quantity

31064

310641136EZ
ref: 31064

PIPE-COMP,SIDE FRAME,

€ 331.00

32160

321601234EZ
ref: 32160

FRAME-COMP,C.GRAY

€ 1,186.00

92015

920151803
ref: 92015

NUT,25MM

€ 18.50

92015A

920151810
ref: 92015A

NUT,25MM

€ 14.50

92015B

920151873
ref: 92015B

NUT,CAP,22MM

€ 19.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491214
ref: 92049A

SEAL-OIL,STEERING STE

€ 11.00

92055

920551459
ref: 92055

RING-O,ID=24.5

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161056
ref: 92116A

BEARING-ROLLER

€ 48.50

92150

921501747
ref: 92150

BOLT

€ 5.00

92200

922001126
ref: 92200

WASHER,22.5X36X3.2

€ 6.00
