CARBURETOR(ZRT10A-026677∼)

ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST

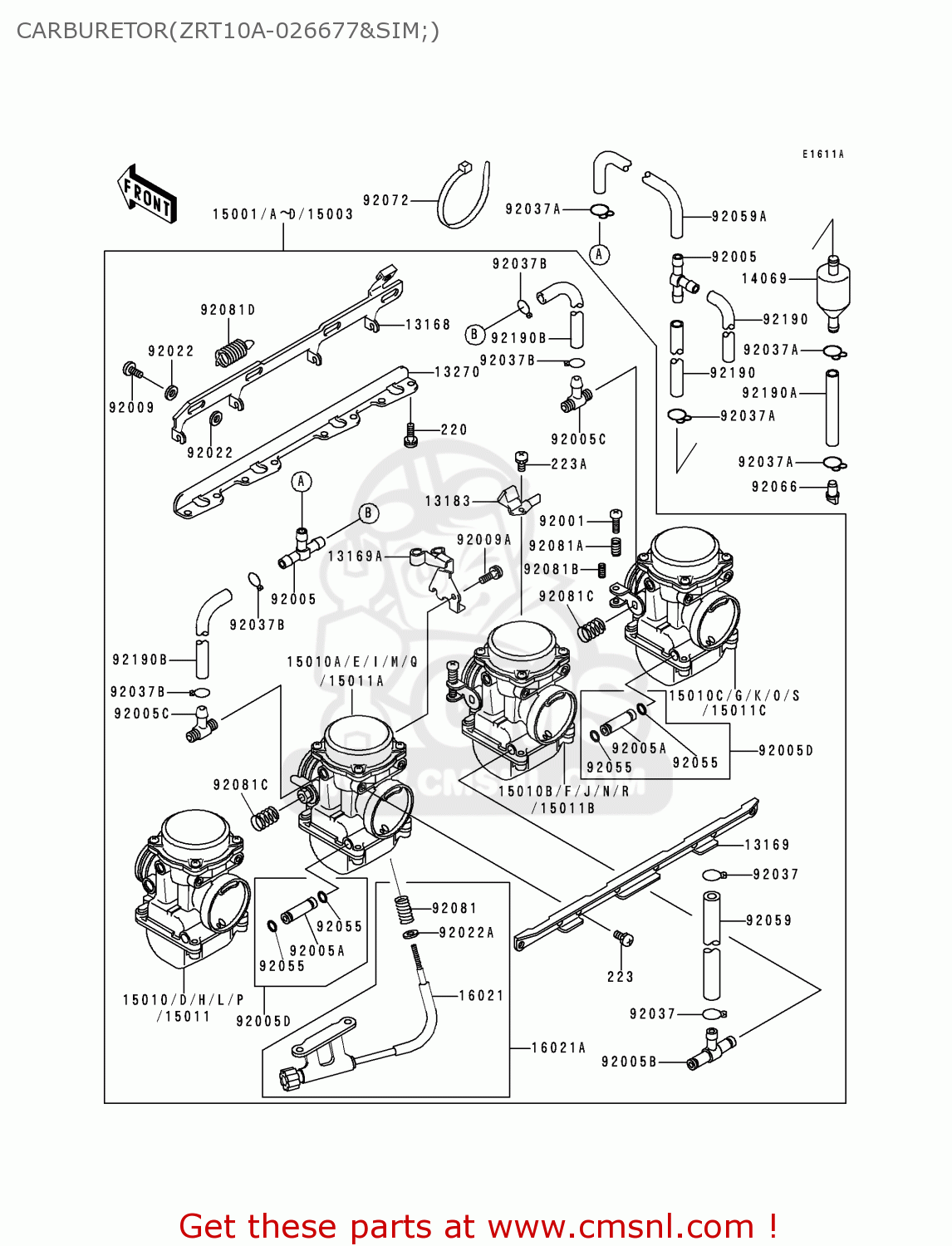

Carburetor(zrt10a-026677∼) diagram ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST

CARBURETOR(ZRT10A-026677∼) ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST
CARBURETOR(ZRT10A-026677∼) ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST
CARBURETOR(ZRT10A-026677∼) ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST
prices are in EUR
ref
part #
description
quantity
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691869
ref: 13169
ARST
PLATE,CARBURETOR STAY
131691869
€ 80.50
13169A
131691962
ref: 13169A
ARST
PLATE,THROTTLE CABLE
131691962
€ 48.00
13183
131831033
ref: 13183
PLATE,STARTER CABLE
131831033
€ 26.00
13270
132701070
ref: 13270
ARST
PLATE,CARBURETOR STAY
€ 22.00
14069
140691051
ref: 14069
BREATHER
140691051
€ 6.50
15001C
150011903
ref: 15001C
AR
CARBURETOR-ASSY
€ 1,759.50
15001D
150011906
ref: 15001D
ST
CARBURETOR-ASSY
€ 799.00
15003
150031191
ref: 15003
EUFGFRGRSPUK
CARBURETOR-ASSY
€ 1,975.00
15010L
150101598
ref: 15010L
AR
CARBURETOR,LH,OUTSIDE
€ 623.00
15010M
150101599
ref: 15010M
AR
CARBURETOR,LH,INSIDE
€ 623.00
15010N
150101600
ref: 15010N
AR
CARBURETOR,RH,INSIDE
€ 623.00
15010O
150101601
ref: 15010O
AR
CARBURETOR,RH,OUTSIDE
€ 623.00
15010P
150101602
ref: 15010P
ST
CARBURETOR,LH,OUTSIDE
€ 623.00
15010Q
150101603
ref: 15010Q
ST
CARBURETOR,LH,INSIDE
€ 910.00
15010R
150101604
ref: 15010R
ST
CARBURETOR,RH,INSIDE
€ 910.00
15010S
150101605
ref: 15010S
ST
CARBURETOR,RH,OUTSIDE
€ 910.00
15011
150111017
ref: 15011
EUFGFRGRSPUK
CARBURETOR,LH,OUTSIDE
€ 1,053.00
15011A
150111018
ref: 15011A
EUFGFRGRSPUK
CARBURETOR,LH,INSIDE
€ 1,053.00
15011B
150111019
ref: 15011B
EUFGFRGRSPUK
CARBURETOR,RH,INSIDE
€ 1,053.00
15011C
150111020
ref: 15011C
EUFGFRGRSPUK
CARBURETOR,RH,OUTSIDE
€ 1,053.00
16021
160211101
ref: 16021
ARST
SCREW-THROTTLE STOP
160211101
€ 83.50
16021A
160211172
ref: 16021A
EUFGFRGRSPUK
SCREW-THROTTLE STOP
€ 76.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051119
ref: 92005
FITTING,T-TYPE
€ 17.50
92005A
920051157
ref: 92005A
ARST
FITTING
€ 25.00
92005B
920051288
ref: 92005B
FITTING
920051288
€ 22.00
92005C
920051306
ref: 92005C
FITTING
920051306
€ 19.00
92005D
920051310
ref: 92005D
EUFGFRGRSPUK
FITTING
920051310
€ 25.00
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223D0410
ref: 223A
SCREW-PAN-WS-CROS
223D0410
€ 2.50
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
ARST
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371104
ref: 92037A
CLAMP,HOSE
920371104
€ 1.00
92037B
920371194
ref: 92037B
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92055
920551004
ref: 92055
ARST
O RING
920551004
€ 2.50
92059
920591492
ref: 92059
TUBE,7.3X12.5X260
€ 25.00
92059A
920591585
ref: 92059A
TUBE
€ 8.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92081
920811617
ref: 92081
ARST
SPRING,THROTTLE STOP
920811617
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081D
920811762
ref: 92081D
ARST
SPRING,STARTER LEVER
920811762
€ 14.00
92190
921901201
ref: 92190
TUBE,7X12X160
€ 8.50
92190A
921901242
ref: 92190A
TUBE,7X12X110
€ 8.50
92190B
921901417
ref: 92190B
TUBE
€ 8.50
