CRANKCASE BOLT PATTERN

ZR1100A2 1993 USA CALIFORNIA CANADA

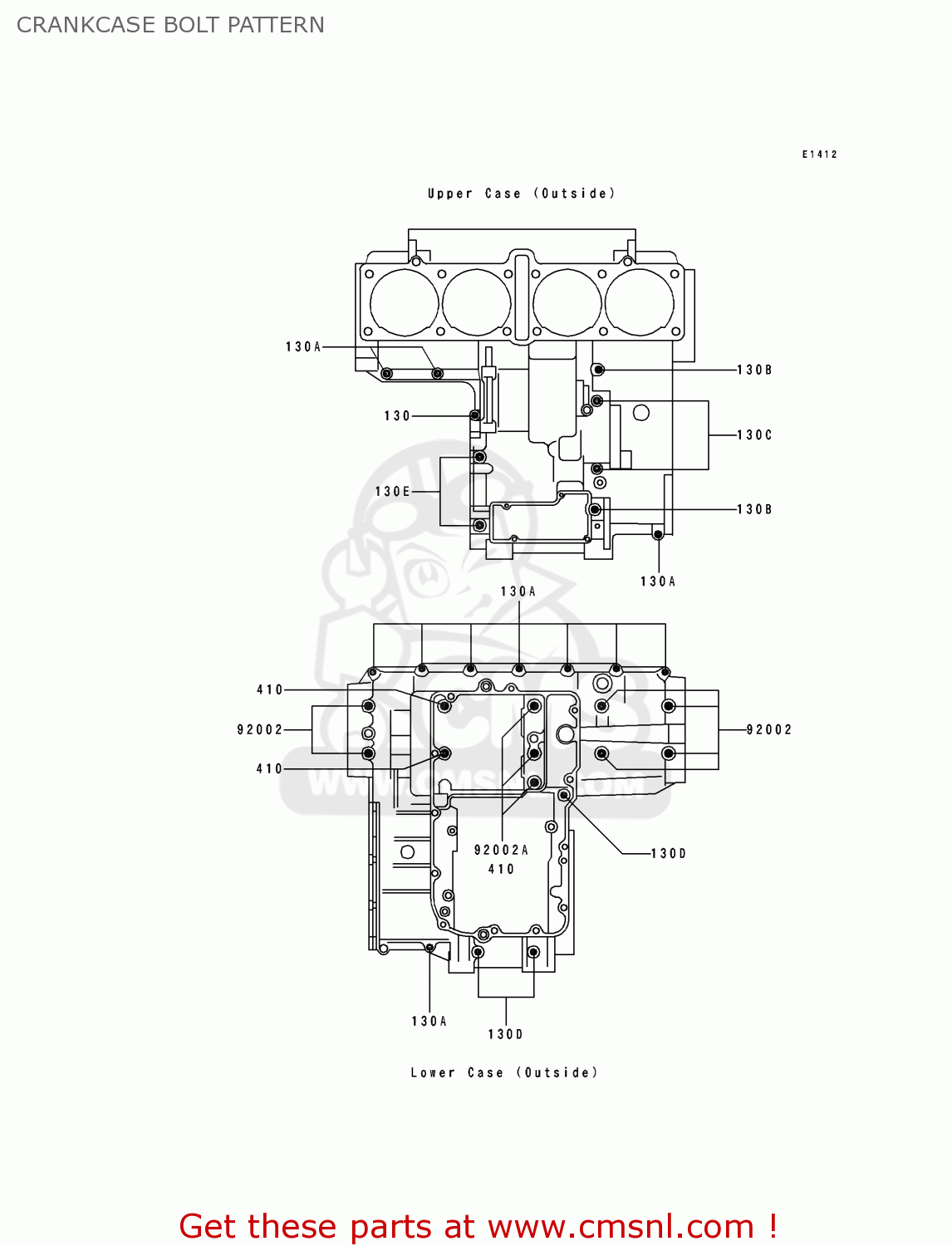

Crankcase bolt pattern diagram ZR1100A2 1993 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN ZR1100A2 1993 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN ZR1100A2 1993 USA CALIFORNIA CANADA
CRANKCASE BOLT PATTERN ZR1100A2 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130Y0635
ref: 130
BOLT-FLANGED
€ 2.50
130A
130Y0640
ref: 130A
BOLT-FLANGED
€ 3.00
130B
130Y0690
ref: 130B
BOLT-FLANGED
€ 4.00
130C
130Z06105
ref: 130C
BOLT-FLANGED
€ 5.00
130D
130Z06120
ref: 130D
BOLT-FLANGED
€ 5.50
130E
130Z0870
ref: 130E
BOLT-FLANGED
130Z0870
€ 6.00
410
410B1000
ref: 410
WASHER-PLAIN-SMALL,10
410B1000
€ 0.50
92002
920021651
ref: 92002
BOLT,10X95
920021651
€ 6.50
92002A
920021652
ref: 92002A
BOLT,10X145
920021652
€ 9.50
