Genuine ZN Kawasaki Parts delivered quickly!


STORAGE CASE/SIDEBAG BRACKET

ZN1300A2 1984 USA CALIFORNIA CANADA

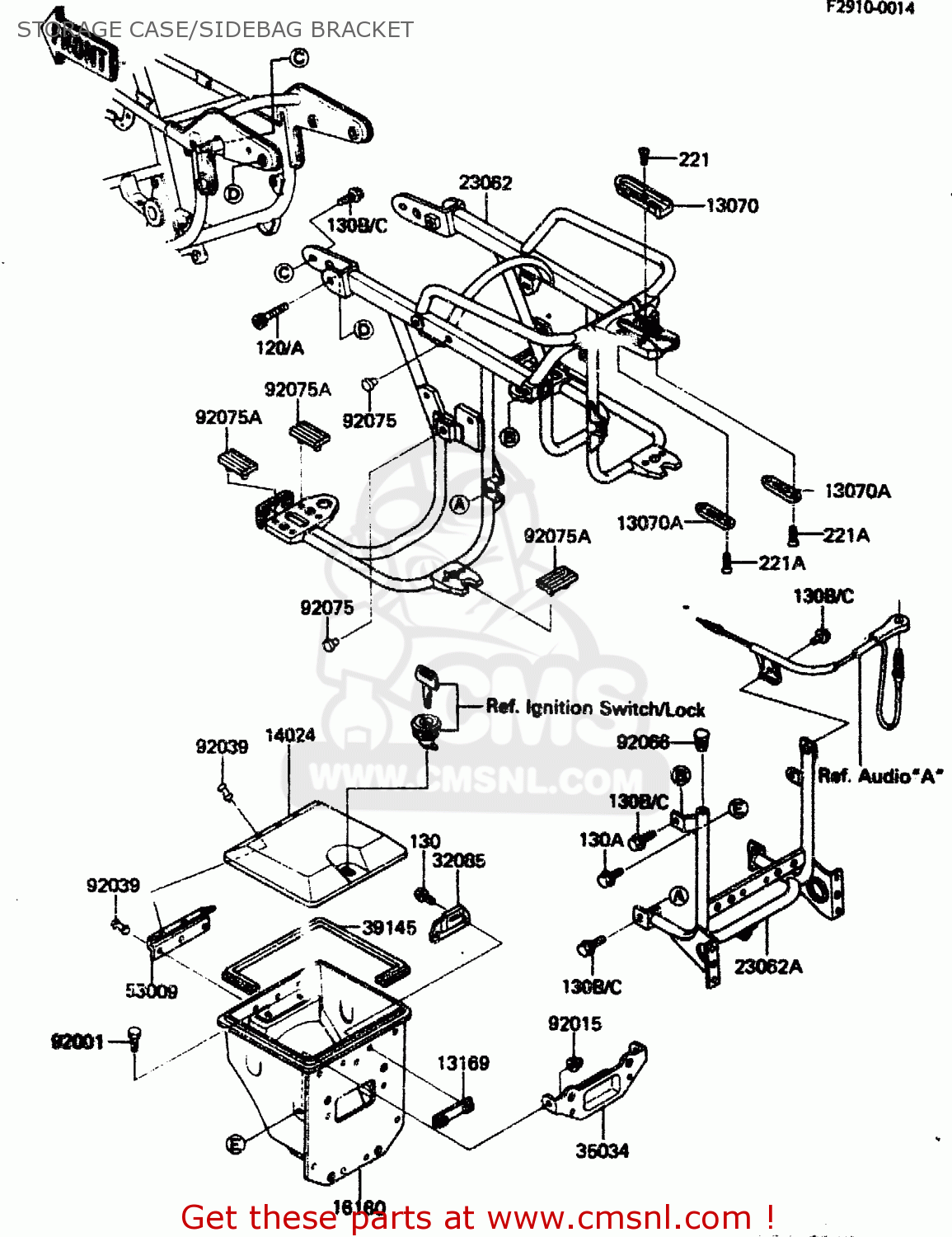

Storage case/sidebag bracket diagram ZN1300A2 1984 USA CALIFORNIA CANADA

STORAGE CASE/SIDEBAG BRACKET ZN1300A2 1984 USA CALIFORNIA CANADA
STORAGE CASE/SIDEBAG BRACKET ZN1300A2 1984 USA CALIFORNIA CANADA
STORAGE CASE/SIDEBAG BRACKET ZN1300A2 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13070
130701083
ref: 13070
GUIDE,TRUNK LOCK
€ 12.50
13070A
130701104
ref: 13070A
GUIDE,TRUNK LOCK
€ 4.00
13169
131691611
ref: 13169
PLATE,STORAGE CASE
€ 4.00
14024
140251673
ref: 14024
COVER,STORAGE CASE
€ 142.00
16160
161601012
ref: 16160
BODY,STORAGE CASE
€ 149.00
23062
230621052
ref: 23062
BRACKET-COMP,SIDE BAG
€ 295.50
23062A
230621053
ref: 23062A
BRACKET-COMP,TAIL LAM
€ 67.50
32085
320851127
ref: 32085
STOPPER,STORAGE CASE
€ 4.00
35034
350341106
ref: 35034
REINFORCE,REAR FENDER
€ 14.50
39145
391451008
ref: 39145
TRIM-SEAL,STORAGE CAS
€ 8.50
53009
530091038
ref: 53009
HINGE,STORAGE CASE
€ 7.50
92001
920011826
ref: 92001
BOLT,6X20
920011826
€ 2.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92039
920391040
ref: 92039
RIVET,BLIND
€ 1.50
92066
920661093
ref: 92066
PLUG
920661093
€ 3.50
92075
92075005
ref: 92075
DAMPER
92075005
€ 2.50
92075A
920751489
ref: 92075A
DAMPER,SIDE BAG BRACK
920751489
€ 6.00
120
120P0855
ref: 120
BOLT-SOCKET,8X55
120P0855
€ 3.00
130
130C0512
ref: 130
BOLT-FLANGED,5X12
€ 1.50
130A
130C0612
ref: 130A
BOLT-FLANGED,6X12
130C0612
€ 1.50
130B
130G0816
ref: 130B
BOLT-FLANGED,8X16
130G0816
€ 0.50
221
221C0508
ref: 221
SCREW-CSK-CROS,5X8
221C0508
€ 2.50
221A
221C0512
ref: 221A
SCREW-CSK-CROS
€ 0.50
