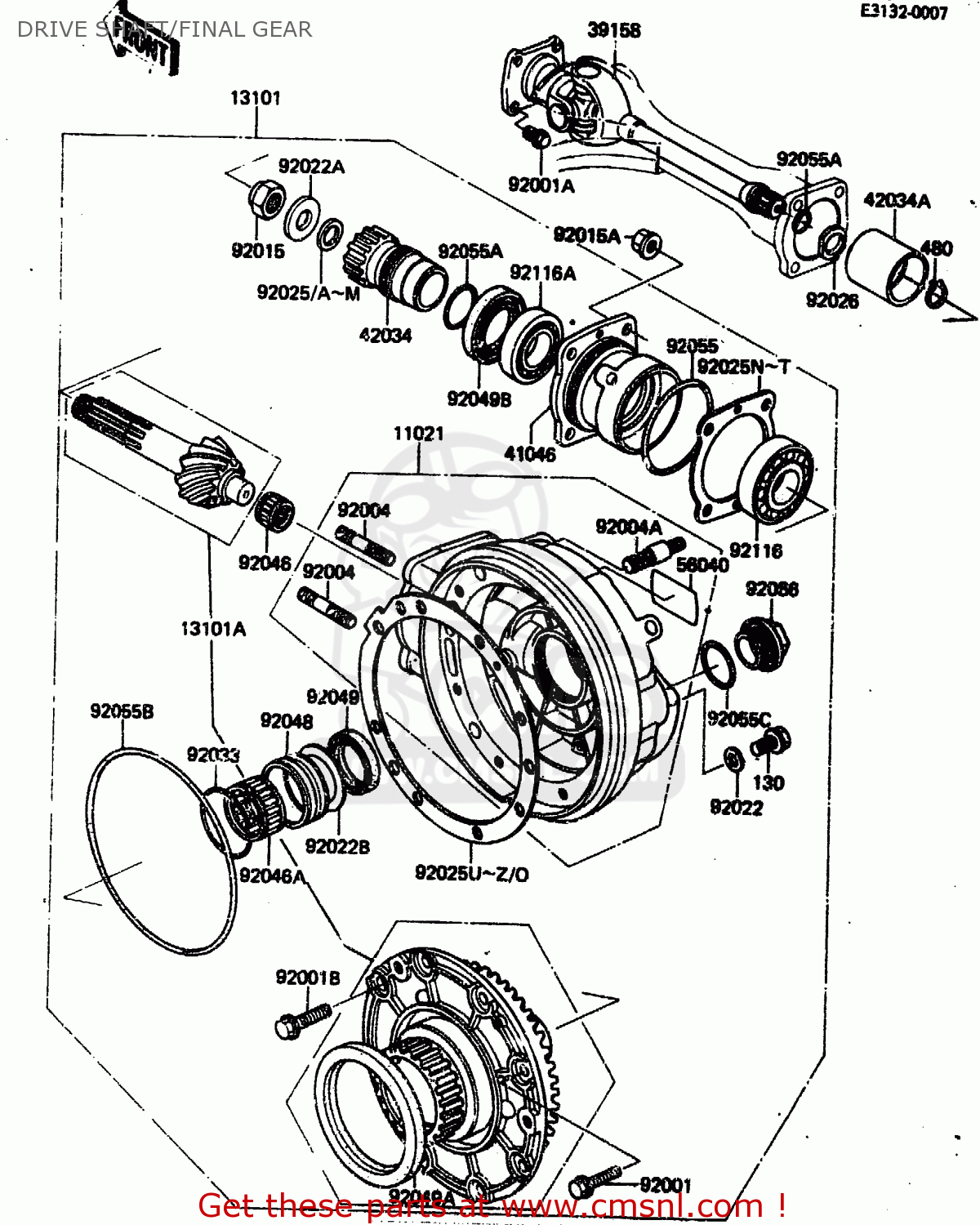

DRIVE SHAFT/FINAL GEAR

ref

part #

description

quantity

11021

110211019F6
ref: 11021

CASE-ASSY,FINAL GEAR

€ 752.50

13101

131011033F6
ref: 13101

GEAR-ASSY,FINAL,NO.2

€ 1,828.50

13101A

131015041
ref: 13101A

GEAR-ASSY,BEVEL,RR

€ 878.50

39158

391581008
ref: 39158

SHAFT-ASSY-DRIVE

€ 320.50

41046

410461020
ref: 41046

HOUSING-BEARING,FINAL

€ 122.50

42034

420341023
ref: 42034

COUPLING,PROPELLER SH

€ 81.00

42034A

420341037
ref: 42034A

COUPLING,PROPELLER SH

€ 146.50

56040

560401047
ref: 56040

LABEL,HYPOID GEAR OIL

€ 4.00

92001

920011095
ref: 92001

BOLT,8X28

€ 4.50

92001A

920011139
ref: 92001A

BOLT,12X15,COUPLING

€ 4.50

92001B

920011778
ref: 92001B

BOLT,FLANGED,10X23

€ 3.50

92004

920041021
ref: 92004

STUD,10X31.5

€ 3.50

92004A

920041047
ref: 92004A

STUD,RR SHOCKABSORBER

€ 10.00

92015

920151059
ref: 92015

NUT,16MM

€ 7.50

92015A

920151234
ref: 92015A

NUT,FLANGED,10MM

€ 3.00

92022

920221086
ref: 92022

WASHER,8.2X16X1

€ 2.50

92022A

920221105
ref: 92022A

WASHER,16X32X3.2

€ 7.00

92022B

920221294
ref: 92022B

WASHER,39X49.5X1

€ 4.50

92025

920251214
ref: 92025

SHIM,T=1.30

€ 6.00

92025A

920251215
ref: 92025A

SHIM,T=1.32

€ 6.50

92025B

920251216
ref: 92025B

SHIM,T=1.34

€ 6.50

92025C

920251217
ref: 92025C

SHIM,T=1.36

€ 6.50

92025D

920251218
ref: 92025D

SHIM,T=1.38

€ 6.50

92025E

920251219
ref: 92025E

SHIM,T=0.10

€ 4.00

92025F

920251220
ref: 92025F

SHIM,T=0.20

€ 4.00

92025G

920251221
ref: 92025G

SHIM,T=0.30

€ 4.00

92025H

920251222
ref: 92025H

SHIM,T=0.50

€ 4.00

92025I

920251223
ref: 92025I

SHIM,T=0.60

€ 5.50

92025J

920251224
ref: 92025J

SHIM,T=0.70

€ 5.50

92025K

920251225
ref: 92025K

SHIM,T=0.80

€ 5.50

92025L

920251226
ref: 92025L

SHIM,T=0.90

€ 5.50

92025M

920251227
ref: 92025M

SHIM,T=1.00

€ 5.50

92025N

920251388
ref: 92025N

SHIM,T=0.10

€ 2.00

92025O

920251389
ref: 92025O

SHIM,T=0.15

€ 2.00

92025P

920251390
ref: 92025P

SHIM,T=0.20

€ 2.00

92025Q

920251391
ref: 92025Q

SHIM,T=0.30

€ 2.00

92025R

920251392
ref: 92025R

SHIM,T=0.60

€ 2.00

92025S

920251393
ref: 92025S

SHIM,T=0.90

€ 3.00

92025T

920251394
ref: 92025T

SHIM,T=1.20

€ 3.50

92025U

920251625
ref: 92025U

SHIM,T=0.10

€ 7.50

92025V

920251626
ref: 92025V

SHIM,T=0.15

€ 8.00

92025W

920251627
ref: 92025W

SHIM,T=0.20

€ 7.00

92025X

920251628
ref: 92025X

SHIM,T=0.30

€ 7.00

92025Y

920251629
ref: 92025Y

SHIM,T=0.60

€ 14.00

92025Z

920251630
ref: 92025Z

SHIM,T=0.90

€ 14.00

920250

920251631
ref: 920250

SHIM,T=1.20

€ 14.00

92026

920261085
ref: 92026

SPACER,26.2X36X2

€ 5.00

92033

920331074
ref: 92033

RING-SNAP,52MM

€ 3.00

92046

920461056
ref: 92046

BEARING-NEEDLE,K18X25

€ 16.00

92046A

920461057
ref: 92046A

BEARING-NEEDLE,KTV384

€ 47.00

92048

920481019
ref: 92048

RACE,ORT465021E01

€ 35.00

92049

920491025
ref: 92049

OIL SEAL,S-35477HS

€ 10.00

92049A

920491026
ref: 92049A

OIL SEAL,S-901159HS

€ 28.00

92049B

920491082
ref: 92049B

SEAL-OIL,SC32558

€ 10.00

92055

920551032
ref: 92055

RING-O,67MM

€ 7.50

92055A

920551037
ref: 92055A

RING-O,ID=32.7

€ 2.50

92055B

920551165
ref: 92055B

RING-O,154X3

€ 7.50

92055C

920551281
ref: 92055C

RING-O,35.8MM

€ 4.50

92066

920661006F6
ref: 92066

PLUG,36MM,NO.2 GOLD

€ 8.50

92116

921161002
ref: 92116

BEARING-ROLLER,4T3030

€ 39.00

92116A

921161003
ref: 92116A

BEARING,R,4T-30205

€ 41.00

130

130B0812
ref: 130

BOLT,FLANGED,8X12

€ 0.50

480

480J2600
ref: 480

CIRCLIP-TYPE-C,26MM

€ 1.50

all assemblies
