RADIATOR/FAN/WATER PUMP

ZL900A2 ELIMINATOR 1986 USA CALIFORNIA CANADA

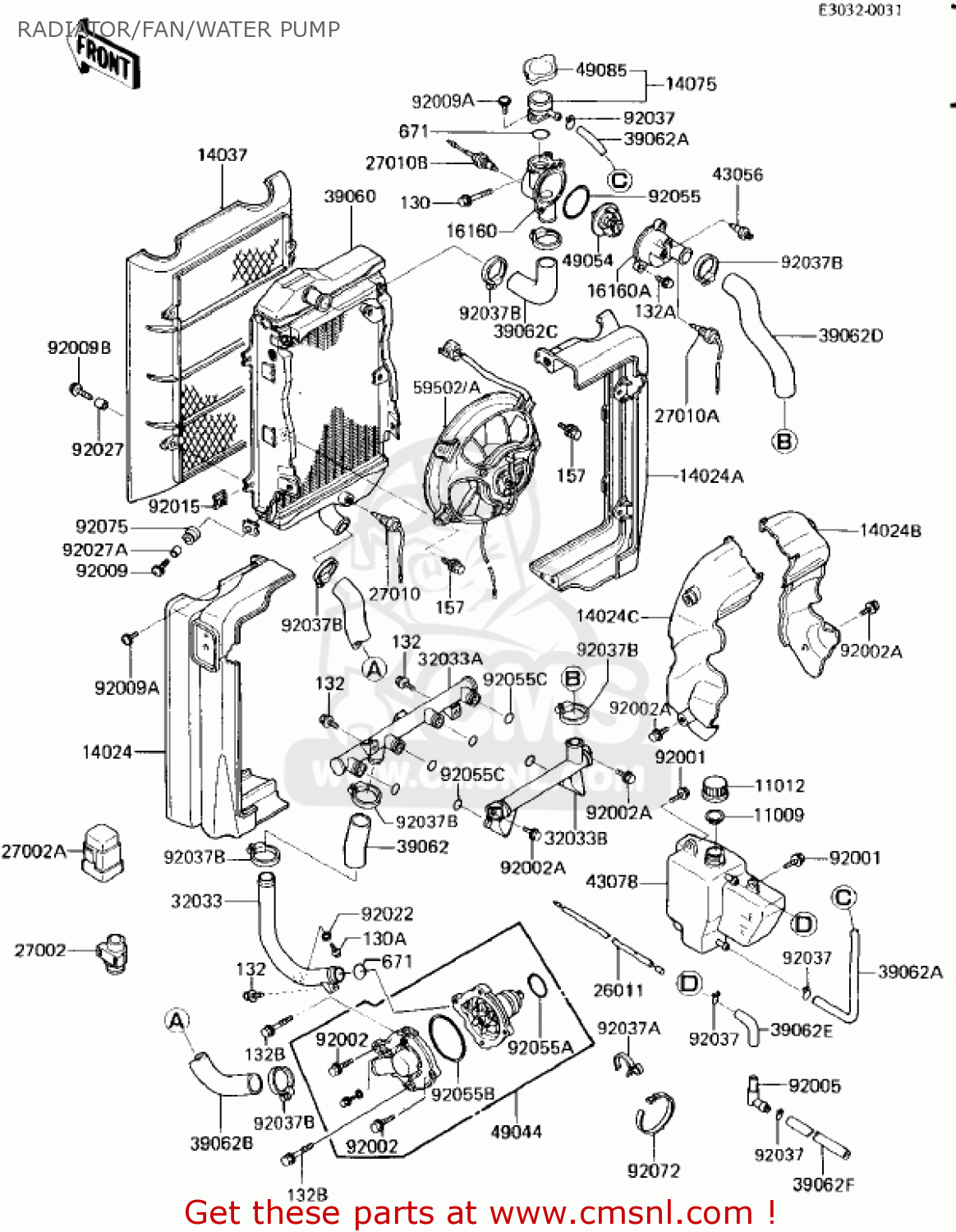

Radiator/fan/water pump diagram ZL900A2 ELIMINATOR 1986 USA CALIFORNIA CANADA

RADIATOR/FAN/WATER PUMP ZL900A2 ELIMINATOR 1986 USA CALIFORNIA CANADA
RADIATOR/FAN/WATER PUMP ZL900A2 ELIMINATOR 1986 USA CALIFORNIA CANADA
RADIATOR/FAN/WATER PUMP ZL900A2 ELIMINATOR 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14024
140241070
ref: 14024
COVER,SCREEN,LH
€ 50.00
14024A
140241071
ref: 14024A
COVER,SCREEN,RH
€ 50.00
14024B
140241073
ref: 14024B
COVER,RH
140241073
€ 62.00
14024C
140241118
ref: 14024C
COVER,LH
140241118
€ 59.00
14037
140371074
ref: 14037
SCREEN
€ 65.50
14075
140751062
ref: 14075
CAP-ASSY,RADIATOR
140751062
€ 89.50
16160
161601098
ref: 16160
BODY,THERMOSTAT
€ 76.00
16160A
161601099
ref: 16160A
BODY,THERMOSTAT
€ 45.50
26011
260111318
ref: 26011
WIRE-LEAD,OIL TEMPERA
€ 6.50
27002
270021054
ref: 27002
RELAY-ASSY
270021054
€ 31.50
27002A
270021055
ref: 27002A
RELAY-ASSY
270021055
€ 53.00
27010
270101180
ref: 27010
SWITCH,FAN
270101180
€ 104.50
27010A
270101188
ref: 27010A
SWITCH,WARNING
270101188
€ 72.00
27010B
270101191
ref: 27010B
SWITCH,WARNING
270101191
€ 68.50
32033
391921028
ref: 32033
PIPE-WATER
391921028
€ 98.00
32033A
320331262
ref: 32033A
PIPE
€ 124.50
32033B
320331712
ref: 32033B
PIPE
€ 88.00
39060
390601064
ref: 39060
RADIATOR
€ 656.00
39062
390621072
ref: 39062
HOSE-COOLING
390621072
€ 14.00
39062A
390621124
ref: 39062A
HOSE-COOLING, RESERVO
€ 17.50
39062B
390621126
ref: 39062B
HOSE-COOLING
390621126
€ 27.00
39062C
390621127
ref: 39062C
HOSE-COOLING
390621127
€ 11.50
39062D
390621128
ref: 39062D
HOSE-COOLING
€ 27.00
39062E
390621141
ref: 39062E
COOLING HOSE
€ 17.50
39062F
390621142
ref: 39062F
HOSE-COOLING
390621142
€ 37.50
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781064
ref: 43078
RESERVOIR
€ 51.00
49044
490441058
ref: 49044
PUMP-WATER
490441058
€ 259.00
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851053
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021058
ref: 59502
FAN ASSEMBLY
€ 563.00
59502A
595021061
ref: 59502A
FAN-ASSY
€ 563.00
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
920011516
€ 3.00
92002
920021392
ref: 92002
BOLT,6X22
920021392
€ 3.00
92002A
920021550
ref: 92002A
BOLT,6X14
€ 2.00
92005
920051138
ref: 92005
FITTING
€ 5.50
92009
920091664
ref: 92009
SCREW
920091664
€ 2.50
92009A
920091288
ref: 92009A
SCREW,6X14
920091288
€ 2.00
92009B
920091400
ref: 92009B
SCREW,6X22
920091400
€ 3.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
920271210
€ 7.00
92027A
920271945
ref: 92027A
COLLAR,6.6X9X14.5
920271945
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371552
ref: 92037A
CLAMP
920371552
€ 6.50
92037B
920371985
ref: 92037B
CLAMP,COOLING HOSE
€ 7.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551266
ref: 92055A
RING-O,33.8MM
920551266
€ 12.00
92055B
920551271
ref: 92055B
RING-O,WATER PUMP
920551271
€ 7.00
92055C
920551282
ref: 92055C
RING-O
920551282
€ 3.00
92072
92072056
ref: 92072
BAND,RUBBER
92072056
€ 3.00
92075
920751773
ref: 92075
DAMPER
920751773
€ 3.50
130
130B0650
ref: 130
BOLT-FLANGED,6X50
130B0650
€ 0.50
130A
130J0610
ref: 130A
BOLT-FLANGED
130J0610
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132A
132J0620
ref: 132A
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132B
132J0640
ref: 132B
BOLT-FLANGED-SMALL
132J0640
€ 3.00
157
157J0612
ref: 157
BOLT-WSP
€ 2.50
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
