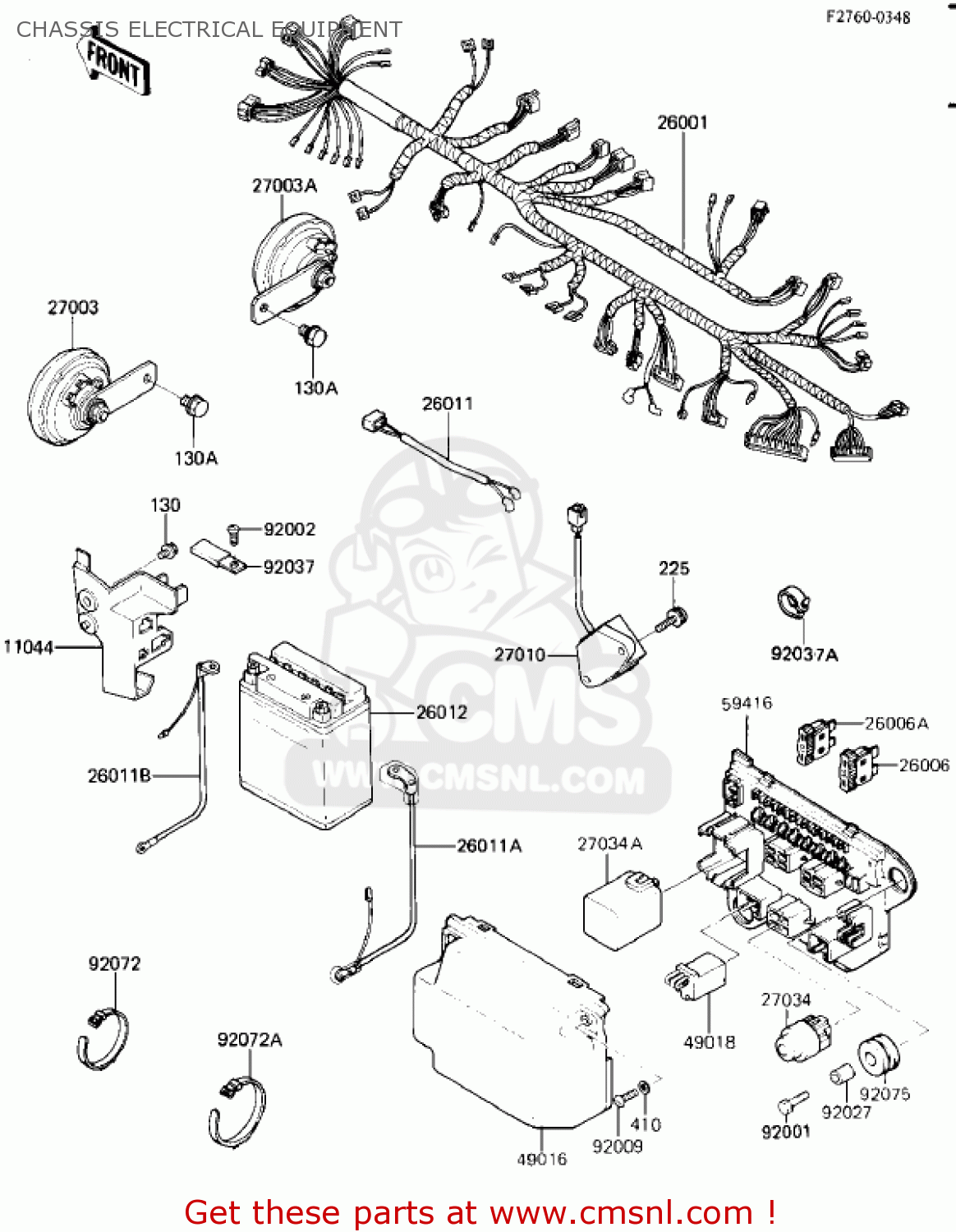

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

11044

110451385
ref: 11044

BRACKET,RELAY&COUPLER

€ 9.50

26001

260011731
ref: 26001

HARNESS, MAIN

€ 256.50

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111313
ref: 26011

WIRE-LEAD,BRAKE SWITC

€ 14.00

26011A

260111329
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 22.50

26011B

260111330
ref: 26011B

BATTERY WIRE LEAD,(-)

€ 15.00

26012

260121008
ref: 26012

BATTERY,12V13AH W/LAB

€ 101.50

27003

270031229
ref: 27003

HORN,LH

€ 45.00

27003A

270031230
ref: 27003A

HORN,RH

€ 45.00

27010

270101069
ref: 27010

SWITCH,RESERVE LIGTIN

€ 149.00

27034

270341006
ref: 27034

STARTER,RELAY

€ 65.50

27034A

270341007
ref: 27034A

RELAY,FLASHER

€ 139.00

49016

490161050
ref: 49016

COVER-SEAL

€ 14.00

49018

490181006
ref: 49018

DIODE

€ 35.00

59416

594161056
ref: 59416

CASE-ELECTRIC

€ 125.50

92001

920021262
ref: 92001

BOLT,6X22

€ 2.00

92002

920021351
ref: 92002

BOLT

€ 2.50

92009

920091021
ref: 92009

SCREW,TAPPING,4X10

€ 2.50

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072056
ref: 92072A

BAND,RUBBER

€ 3.00

92075

920751562
ref: 92075

DAMPER

€ 3.00

130

130B0608
ref: 130

BOLT,FLANGED,6X8

€ 0.50

130A

130C0812
ref: 130A

BOLT-FLANGED,8X12,BLA

€ 0.50

225

225B0620
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

410

410B0400
ref: 410

WASHER-PLAIN-SMALL,4M

€ 0.50

all assemblies
