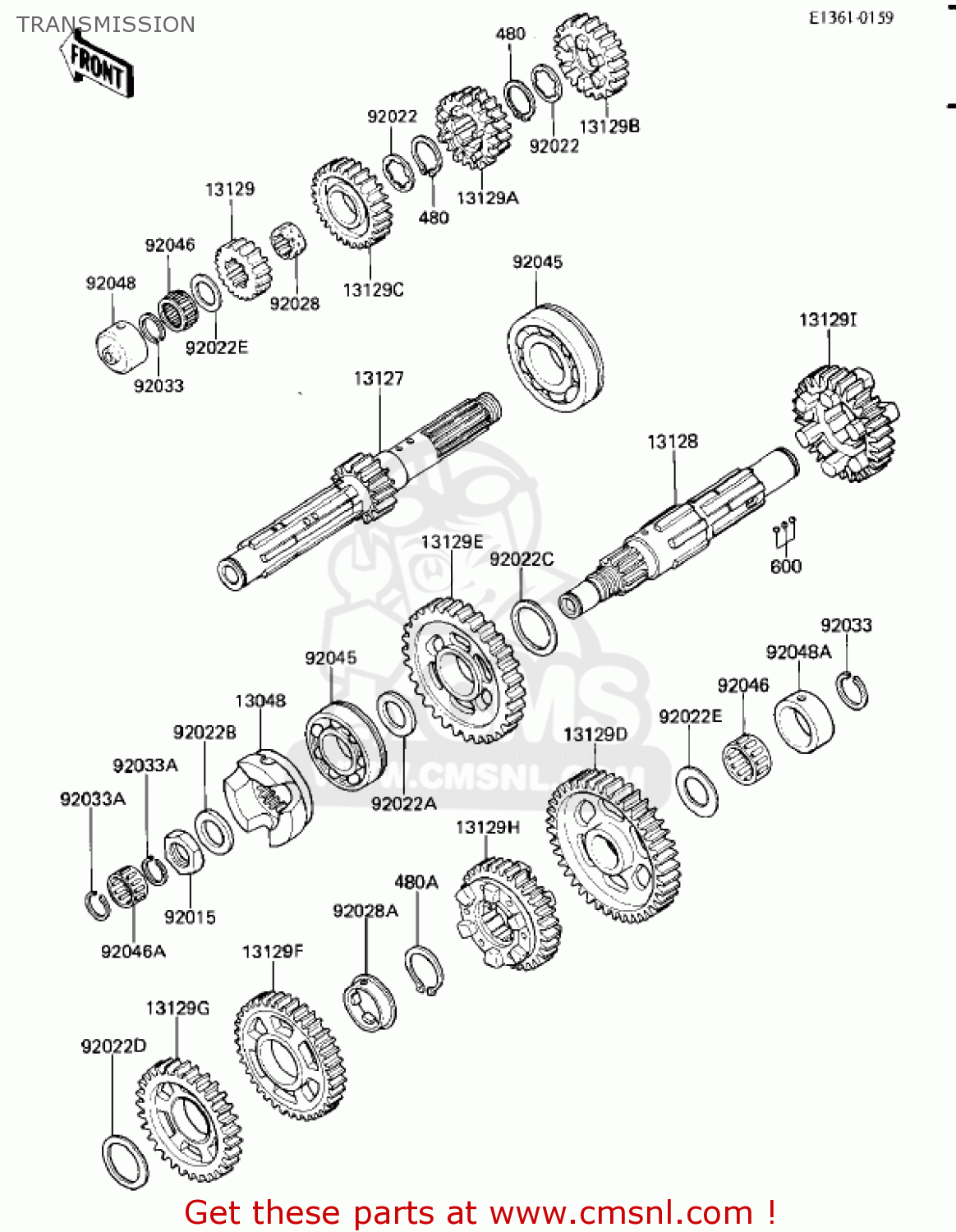

TRANSMISSION

ref

part #

description

quantity

13048

130481060
ref: 13048

CAM-DAMPER

€ 73.00

13127

131271196
ref: 13127

SHAFT-TRANSMISSION IN

€ 209.00

13128

131281138
ref: 13128

SHAFT-TRANSMISSION OU

€ 262.00

13129

131291530
ref: 13129

GEAR,INPUT 2ND,19T

€ 116.50

13129A

131291531
ref: 13129A

GEAR,INPUT 3RD&4TH,22

€ 157.50

13129B

131291532
ref: 13129B

GEAR,INPUT 5TH,26T

€ 150.00

13129C

131291533
ref: 13129C

GEAR,INPUT TOP,28T

€ 128.00

13129D

131291534
ref: 13129D

GEAR,OUTPUT LOW,42T

€ 170.00

13129E

131291700
ref: 13129E

GEAR,OUTPUT 2ND,38T

€ 107.00

13129F

131291701
ref: 13129F

GEAR,OUTPUT 3RD,35T

€ 80.50

13129G

131291702
ref: 13129G

GEAR,OUTPUT 4TH,32T

€ 121.50

13129H

131291703
ref: 13129H

GEAR,OUTPUT 5TH,30T

€ 145.50

13129I

131291704
ref: 13129I

GEAR,OUTPUT TOP,29T

€ 75.50

92015

92016028
ref: 92015

NUT

€ 9.50

92022

920221077
ref: 92022

WASHER,LOCK (O.D=35O)

€ 7.50

92022A

920221219
ref: 92022A

WASHER,28.3X42X2.9

€ 10.50

92022B

920221692
ref: 92022B

WASHER,20.3X32X4.5

€ 6.50

92022C

920221693
ref: 92022C

WASHER,32X40X1.6

€ 4.50

92022D

920221694
ref: 92022D

WASHER,30X38X2.0

€ 3.50

92022E

92022212
ref: 92022E

WASHER-PLAIN,22MM

€ 6.50

92028

920281124
ref: 92028

BUSHING,TOP GEAR

€ 31.00

92028A

920281374
ref: 92028A

BUSHING,OUTPUT 3RD GE

€ 22.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

92033028
ref: 92033A

CIRCLIP

€ 6.00

92045

920451186
ref: 92045

BEARING-BALL

€ 73.00

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92046A

920461145
ref: 92046A

BEARING-NEEDLE,K17X23

€ 20.00

92048

920481052
ref: 92048

RACE,INPUT SHAFT

€ 59.50

92048A

920481053
ref: 92048A

RACE,30X38X15

€ 27.50

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J2900
ref: 480A

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50
