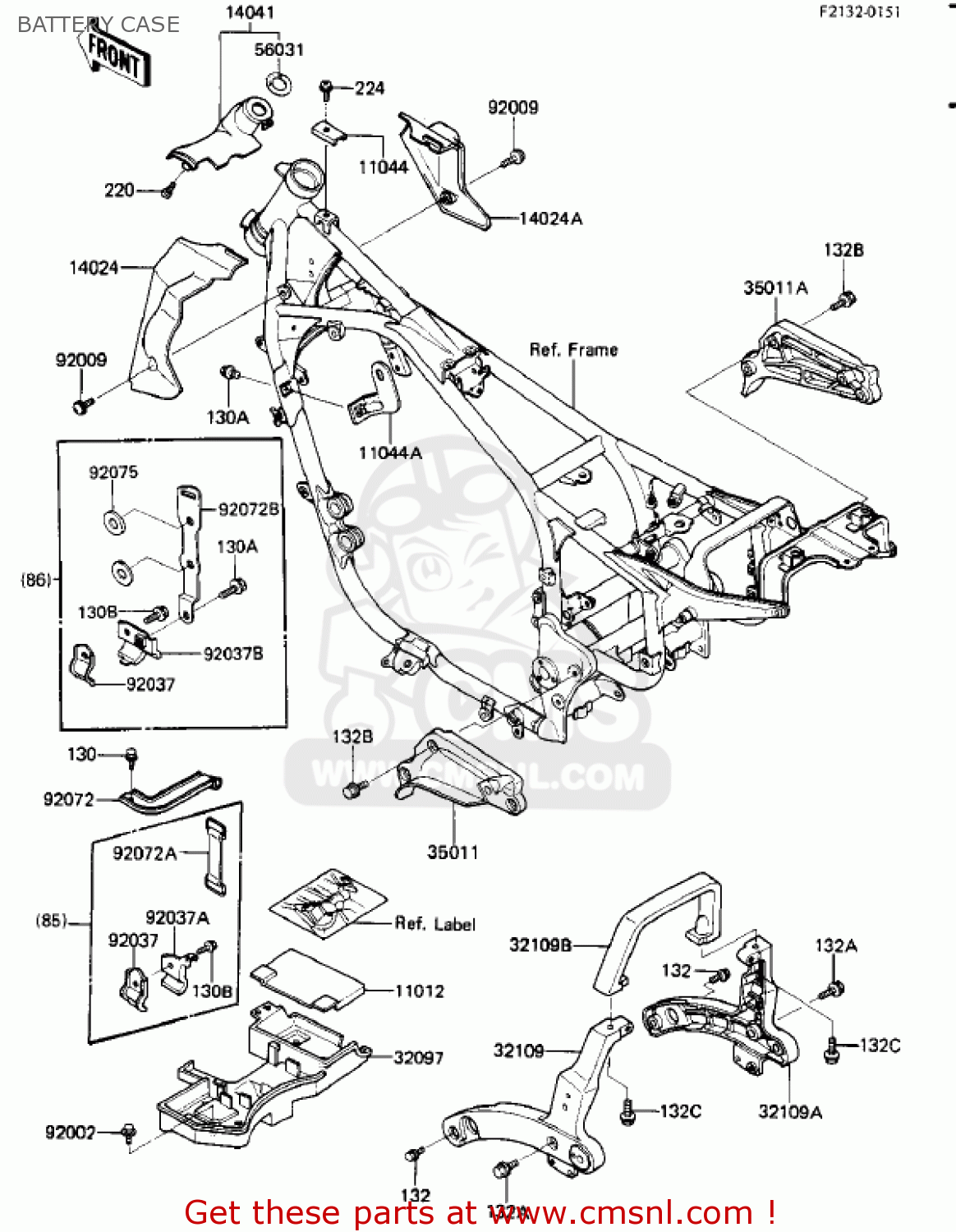

BATTERY CASE

ref

part #

description

quantity

11012

110121447
ref: 11012

CAP,BATTERY

€ 5.50

11044

110441293
ref: 11044

BRACKET,GUSSET COVER

€ 6.50

11044A

110441424
ref: 11044A

BRACKET,RADIATOR COVE

€ 7.50

14024

140241075
ref: 14024

COVER,FUEL TANK,LH

€ 16.00

14024A

140241076
ref: 14024A

COVER,FUEL TANK,RH

€ 19.50

14041

140411062
ref: 14041

COVER-COMP,HANDLE HOL

€ 36.50

32097

320971117
ref: 32097

CASE BATTERY

€ 25.50

32109

321091127
ref: 32109

GRIP-FRAME,LWR,LH

€ 212.50

32109A

321091128
ref: 32109A

GRIP-FRAME,LWR,RH

€ 212.50

32109B

321091129
ref: 32109B

GRIP-FRAME,UPP

€ 186.00

35011

350111251
ref: 35011

STAY,MUFFLER,LH

€ 189.00

35011A

350111252
ref: 35011A

STAY,MUFFLER,RH

€ 189.00

56031

560311419
ref: 56031

LABEL-MANUAL,IGNITION

€ 5.50

92002

920021351
ref: 92002

BOLT

€ 2.50

92009

920091663
ref: 92009

SCREW

€ 2.50

92037

920371670
ref: 92037

CLAMP,BRAKE HOSE

€ 3.00

92037A

920371685
ref: 92037A

CLAMP

€ 5.50

92037B

920371711
ref: 92037B

HOSE CLAMP

€ 7.50

92072

920721183
ref: 92072

BAND, BATTERY

€ 7.00

92072A

920721188
ref: 92072A

BAND

€ 9.50

92072B

920721191
ref: 92072B

BATTERY BAND

€ 6.50

92075

92075078
ref: 92075

DAMPER,RUBBER

€ 2.50

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130C0610
ref: 130A

BOLT-FLANGED,6X10,BLA

€ 1.50

130A

130C0610
ref: 130A

BOLT-FLANGED,6X10,BLA

€ 1.50

130B

130C0612
ref: 130B

BOLT-FLANGED,6X12

€ 1.50

132

132E0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132E0820
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132E0825
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

132C

132G0825
ref: 132C

BOLT-FLANGED-SMALL

€ 2.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

224

224C0520
ref: 224

SCREW-PAN-WP-CROS

€ 2.50
