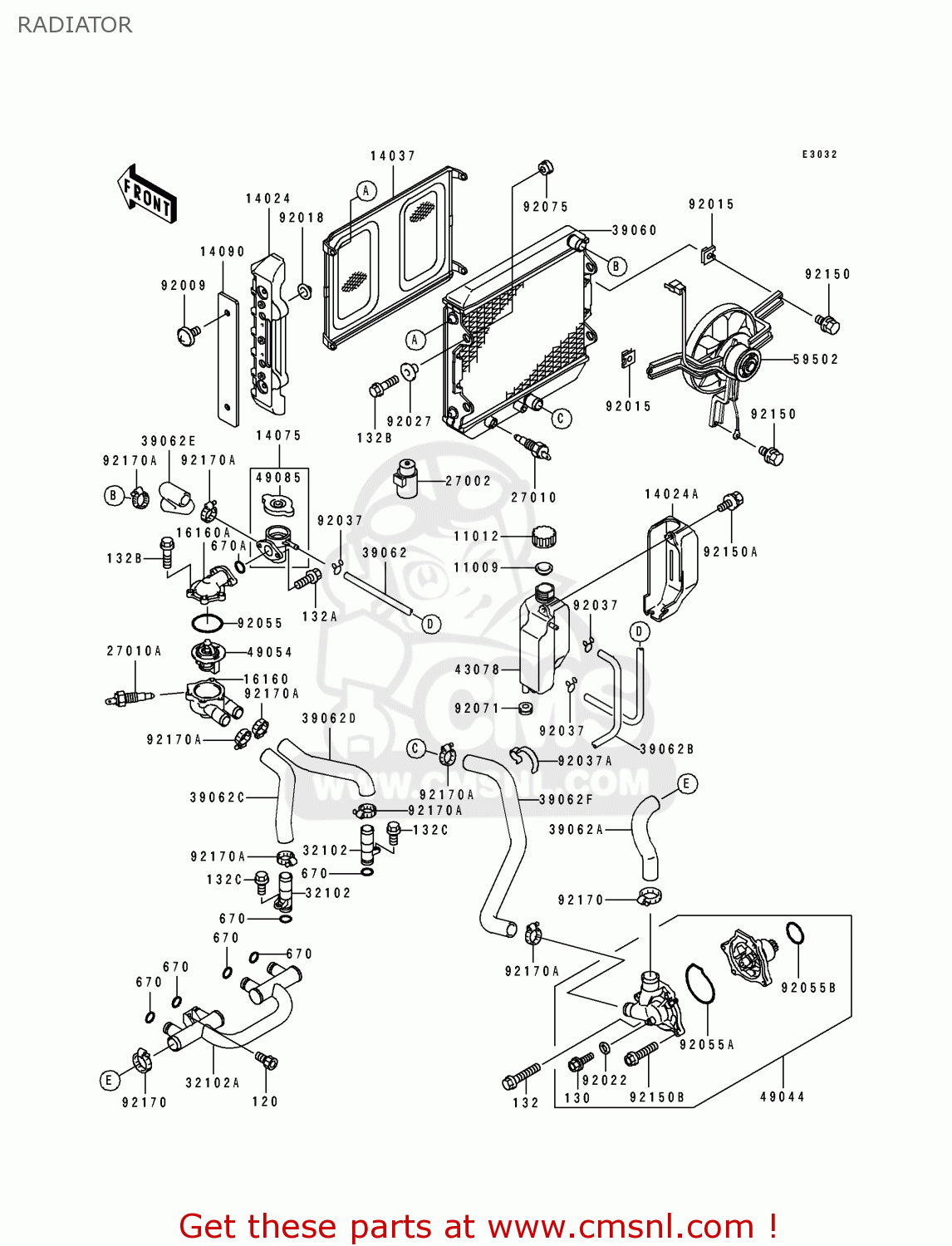

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

14024

140241221
ref: 14024

COVER,RADIATOR

€ 38.50

14024A

140241222
ref: 14024A

COVER,RESERVOIR

€ 16.50

14037

140371080
ref: 14037

SCREEN

€ 52.50

14075

140751085
ref: 14075

CAP-ASSY,RADIATOR

€ 120.00

14090

140901613
ref: 14090

COVER,RADIATOR

€ 81.00

16160

161601112
ref: 16160

BODY,THERMOSTAT,LWR

€ 53.50

16160A

161601113
ref: 16160A

BODY,THERMOSTAT,UPP

€ 43.50

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27010

270101167
ref: 27010

SWITCH,FAN

€ 108.50

27010A

270101239
ref: 27010A

SWITCH,SENSOR WATER

€ 104.50

32102

321021043
ref: 32102

PIPE

€ 23.50

32102A

321021893
ref: 32102A

PIPE

€ 99.00

39060

390601070
ref: 39060

RADIATOR

€ 585.00

39062

390621069
ref: 39062

HOSE-COOLING,5.5X10.5

€ 25.00

39062A

390621111
ref: 39062A

HOSE-COOLING,PUMP-CYL

€ 21.00

39062B

390621125
ref: 39062B

HOSE-COOLING

€ 17.50

39062C

390621178
ref: 39062C

HOSE-COOLING,HEAD-THE

€ 17.50

39062D

390621179
ref: 39062D

HOSE-COOLING,HEAD-THE

€ 17.00

39062E

390621180
ref: 39062E

HOSE-COOLING,CAP-RADI

€ 13.50

39062F

390621181
ref: 39062F

HOSE-COOLING,RADIATOR

€ 31.50

43078

430781072
ref: 43078

RESERVOIR

€ 42.00

49044

490441077
ref: 49044

PUMP-WATER

€ 314.50

49054

490541055
ref: 49054

THERMOSTAT

€ 39.50

49085

490851066
ref: 49085

CAP-ASSY-PRESSURE

€ 23.50

59502

595021075
ref: 59502

FAN-ASSY

€ 442.50

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92015

920151487
ref: 92015

NUT

€ 3.00

92018

92018005
ref: 92018

NUT,PUSH,3MM

€ 2.00

92022

920221976
ref: 92022

WASHER,6.2X6.2X1.0

€ 4.00

92027

92027194
ref: 92027

COLLAR

€ 3.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371552
ref: 92037A

CLAMP

€ 6.50

92055

920551279
ref: 92055

RING-O,45MM

€ 4.50

92055A

920551315
ref: 92055A

RING-O,WATER PUMP

€ 8.00

92055B

920551424
ref: 92055B

RING-O,33.2X2.4

€ 4.00

92071

920711115
ref: 92071

GROMMET,RESERVOIR TAN

€ 3.50

92075

92075277
ref: 92075

DAMPER

€ 1.00

92150

921501186
ref: 92150

BOLT

€ 3.00

120

120P0612
ref: 120

BOLT,SOCKET,6X12

€ 1.00

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

132

132E0645
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132G0616
ref: 132A

BOLT-FLANGED-SMALL

€ 1.00

132B

132G0620
ref: 132B

BOLT-FLANGED-SMALL

€ 1.50

132C

132J0612
ref: 132C

BOLT-FLANGED-SMALL

€ 2.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00

670A

670B2020
ref: 670A

O RING,20MM

€ 1.00

92150A

921501198
ref: 92150A

BOLT

€ 2.50

92150B

921501379
ref: 92150B

BOLT

€ 3.00

92170

921701284
ref: 92170

CLAMP,CABLE

€ 7.50

92170A

921701285
ref: 92170A

CLAMP,COOLING HOSE

€ 13.00
