BRAKE PEDAL/TORQUE LINK

ZL600B3 ELIMINATOR 600 1997 USA CALIFORNIA

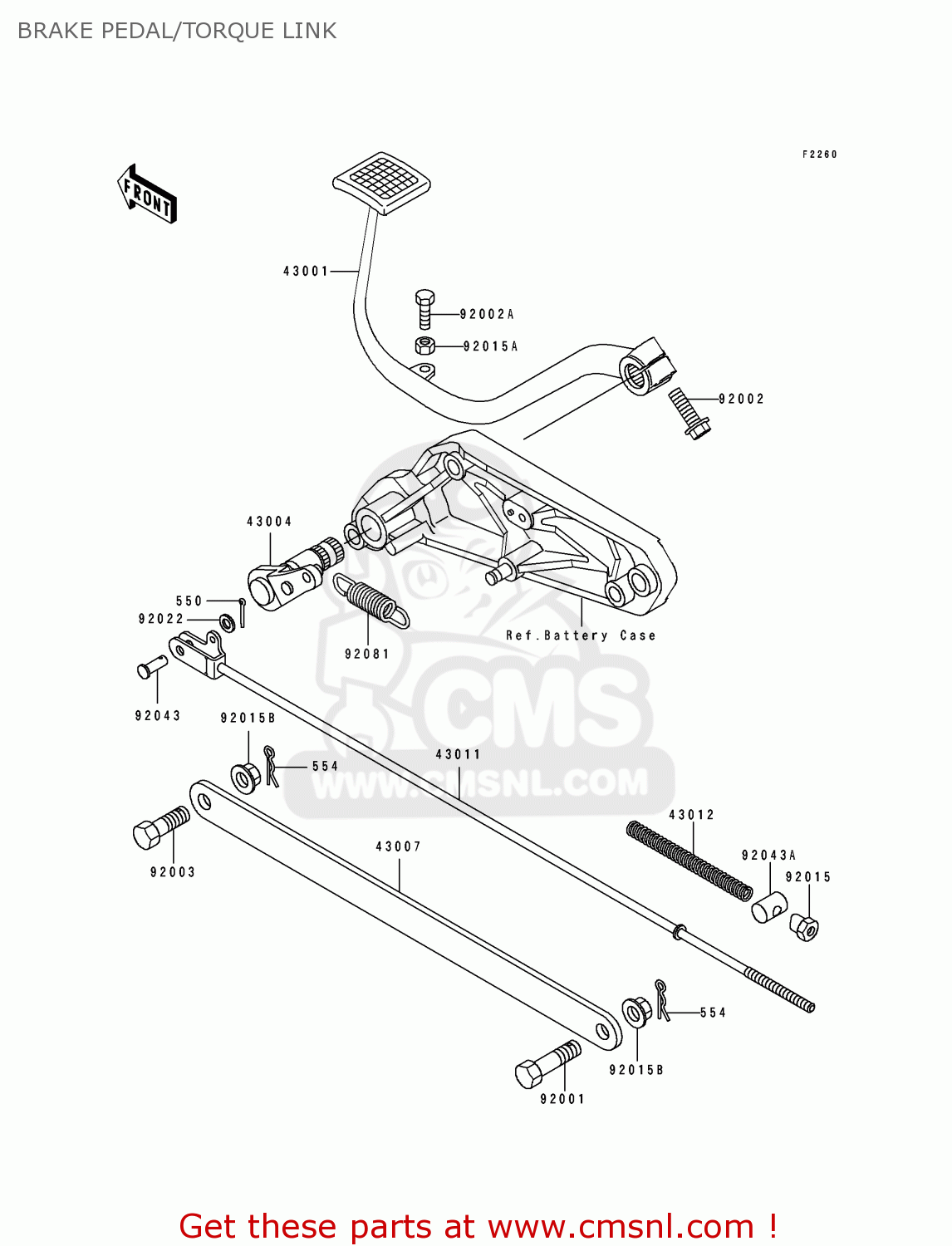

Brake pedal/torque link diagram ZL600B3 ELIMINATOR 600 1997 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

43001

430011206
ref: 43001

LEVER-BRAKE,PEDAL

€ 67.50

43004

430041116
ref: 43004

SHAFT-BRAKE

€ 36.50

43007

430071176
ref: 43007

ROD-TORQUE

€ 16.50

43011

430111162
ref: 43011

ROD-BRAKE

€ 20.50

43012

43012001
ref: 43012

SPRING,BRAKE ROD

€ 3.00

92001

920011519
ref: 92001

BOLT,10X37

€ 4.50

92002

920021201
ref: 92002

BOLT,FLANGED,8X25

€ 3.00

92002A

920021373
ref: 92002A

BOLT,6X20

€ 2.50

92003

92003096
ref: 92003

BOLT-TRQ LINK 10X29

€ 7.00

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151391
ref: 92015A

NUT,6MM

€ 2.00

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92022

920221556
ref: 92022

WASHER,STEP,RR

€ 0.50

92043

92043064
ref: 92043

PIN-BRAKE ROD FITTING

€ 4.50

92043A

92043065
ref: 92043A

PIN-BRAKE ROD

€ 3.50

92081

920811561
ref: 92081

SPRING,SIDE STAND,BLA

€ 5.50
