THROTTLE
ZG1300A3 Z1300 1987 UNITED KINGDOM ST

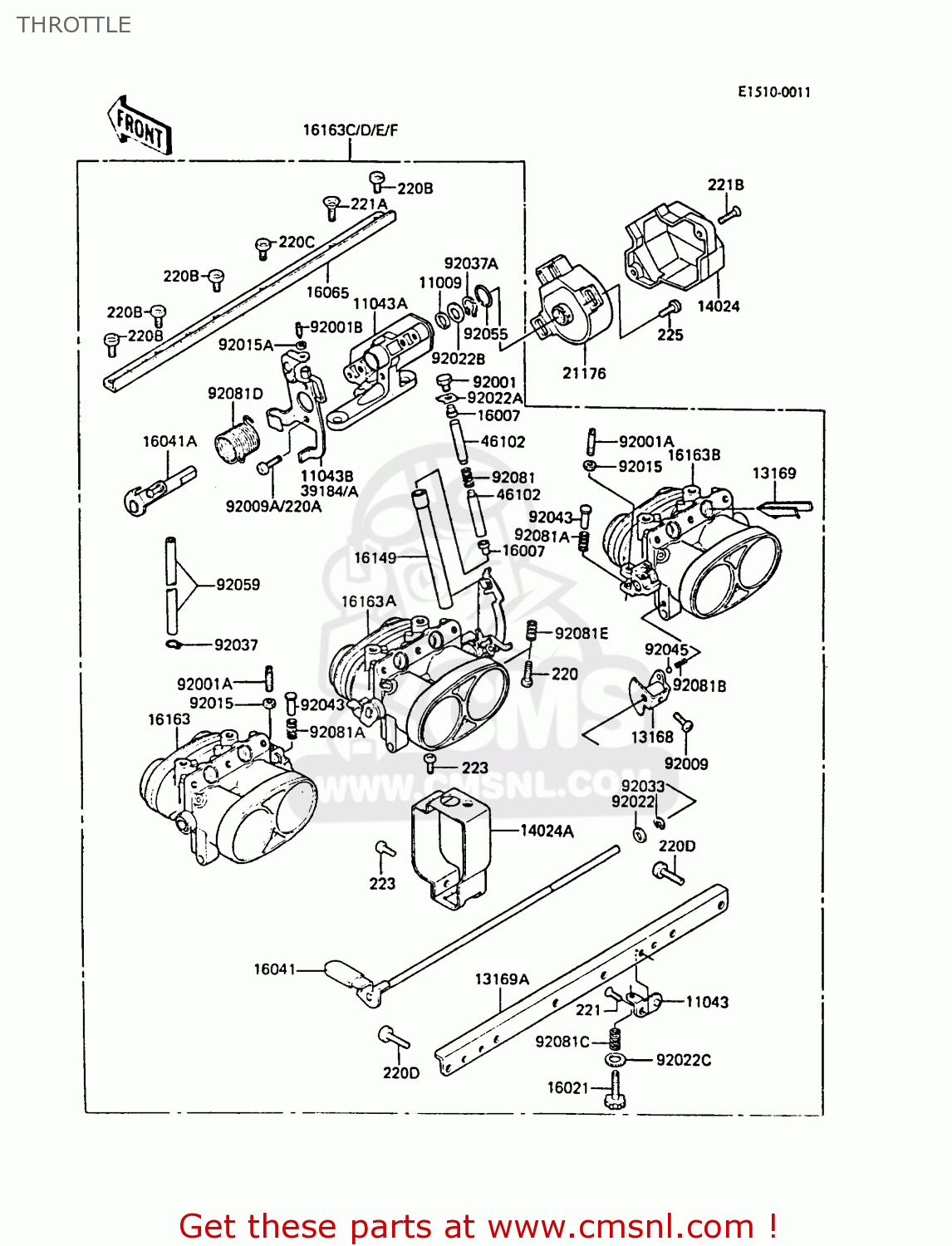

Throttle diagram ZG1300A3 Z1300 1987 UNITED KINGDOM ST
THROTTLE ZG1300A3 Z1300 1987 UNITED KINGDOM ST
×
prices are in EUR
ref
part #
description
quantity
11009
16038020
ref: 11009
GASKET,8MM (NAS)
€ 4.50
11043
110431370
ref: 11043
BRACKET-B,IDLE ADJUST
€ 9.50
11043A
110431494
ref: 11043A
BRACKET,THROTTLE SENS
€ 117.00
11043B
110431758
ref: 11043B
ST
BRACKET,THROTTLE CABL
€ 50.00
13168
131681210
ref: 13168
LEVER,FAST IDLE
€ 15.50
13169
131691744
ref: 13169
PLATE
€ 11.50
13169A
131691745
ref: 13169A
PLATE,THROTTLE STAY,L
€ 51.00
14024
140251657
ref: 14024
COVER,SENSOR
€ 16.00
14024A
140251798
ref: 14024A
COVER,TUBE
€ 35.00
16007
16057002
ref: 16007
SEAT-SPRING
€ 6.00
16021
160211066
ref: 16021
SCREW-THROTTLE STOP
€ 8.50
16041
160411052
ref: 16041
SHAFT-CARBURETOR,FAST
€ 58.00
16041A
160411053
ref: 16041A
SHAFT-CARBURETOR,SENS
€ 82.50
16065
160651107
ref: 16065
HOLDER-CARBURETOR,STA
€ 41.50
16149
161491052
ref: 16149
BAR,THROTTLE
€ 35.00
16163
161631032
ref: 16163
THROTTLE-ASSY,#1
€ 202.00
16163A
161631033
ref: 16163A
THROTTLE-ASSY,#2
€ 202.00
16163B
161631034
ref: 16163B
THROTTLE-ASSY,#3
€ 212.00
16163D
161631068
ref: 16163D
UK
THROTTLE-ASSY
€ 1,003.00
16163F
161631081
ref: 16163F
ST
THROTTLE-ASSY
€ 697.00
21176
211761004
ref: 21176
SENSOR,THROTTLE
€ 460.00
39184
391841053
ref: 39184
UK
BRACKET-ASSY,THROTTLE
€ 65.00
46102
461021106
ref: 46102
ROD,THROTTLE
€ 10.50
92001
16067003
ref: 92001
BOLT,A
€ 4.00
92001A
920011447
ref: 92001A
BOLT,ADJUSTING
€ 6.50
92001B
920011909
ref: 92001B
BOLT,THROTTLE BRACKET
€ 6.50
92009
16046007
ref: 92009
SCREW,PAN HEAD,5X7
€ 6.50
220
220B0418
ref: 220
SCREW-PAN-CROS,4X18
€ 3.00
220A
220B0512
ref: 220A
UK
SCREW-PAN-CROS
€ 0.50
220B
220B0610
ref: 220B
SCREW-PAN HEAD,6X10
€ 2.00
220C
220B0616
ref: 220C
SCREW-PAN HEAD,6X16
€ 2.50
220D
220B0618
ref: 220D
SCREW-PAN HEAD,6X18
€ 2.50
221
221B0508
ref: 221
SCREW-CSK-CROS
€ 0.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
€ 0.50
221B
221C0414
ref: 221B
SCREW-CSK-CROS,4X14
€ 2.00
223
223B0508
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
225
225B0510
ref: 225
SCREW-PAN-WSP-CROS
€ 0.50
92009A
920091318
ref: 92009A
ST
SCREW,5X12
€ 3.50
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
€ 3.50
92015A
920151348
ref: 92015A
NUT,THROTTLE BRACKET
€ 0.50
92022
16039019
ref: 92022
WASHER-PLAIN
€ 3.00
92022A
16054003
ref: 92022A
WASHER,LOCK
€ 2.50
92022B
920221492
ref: 92022B
WASHER,THROTTLE SENSO
€ 2.50
92022C
920221608
ref: 92022C
WASHER,THROTTLE STOP
€ 1.00
92033
920331066
ref: 92033
RING-SNAP,E-TYPE
€ 3.50
92037
920371124
ref: 92037
CLAMP,TUBE
€ 4.00
92037A
920371196
ref: 92037A
CLAMP
€ 2.50
92043
920431079
ref: 92043
PIN,THROTTLE VALVE AD
€ 3.50
92045
920451044
ref: 92045
BEARING-BALL
€ 2.00
92055
920551226
ref: 92055
RING-O,THROTTLE SENSO
€ 5.50
92059
920591382
ref: 92059
TUBE,3X7X125
€ 8.50
92081
16040026
ref: 92081
SPRING
€ 3.50
92081A
920811259
ref: 92081A
SPRING,THROTTLE VLV
€ 3.00
92081B
920811260
ref: 92081B
SPRING,FAST IDLE SHFT
€ 3.50
92081C
920811377
ref: 92081C
SPRING,IDLING ADJUST
€ 3.00
92081D
920811634
ref: 92081D
SPRING,THROTTLE SENSO
€ 14.00
92081E
920811635
ref: 92081E
SPRING,FAST IDLE ADJU
€ 2.00
