CRANKCASE BOLT PATTERN

ZG1300A3 Z1300 1987 UNITED KINGDOM ST

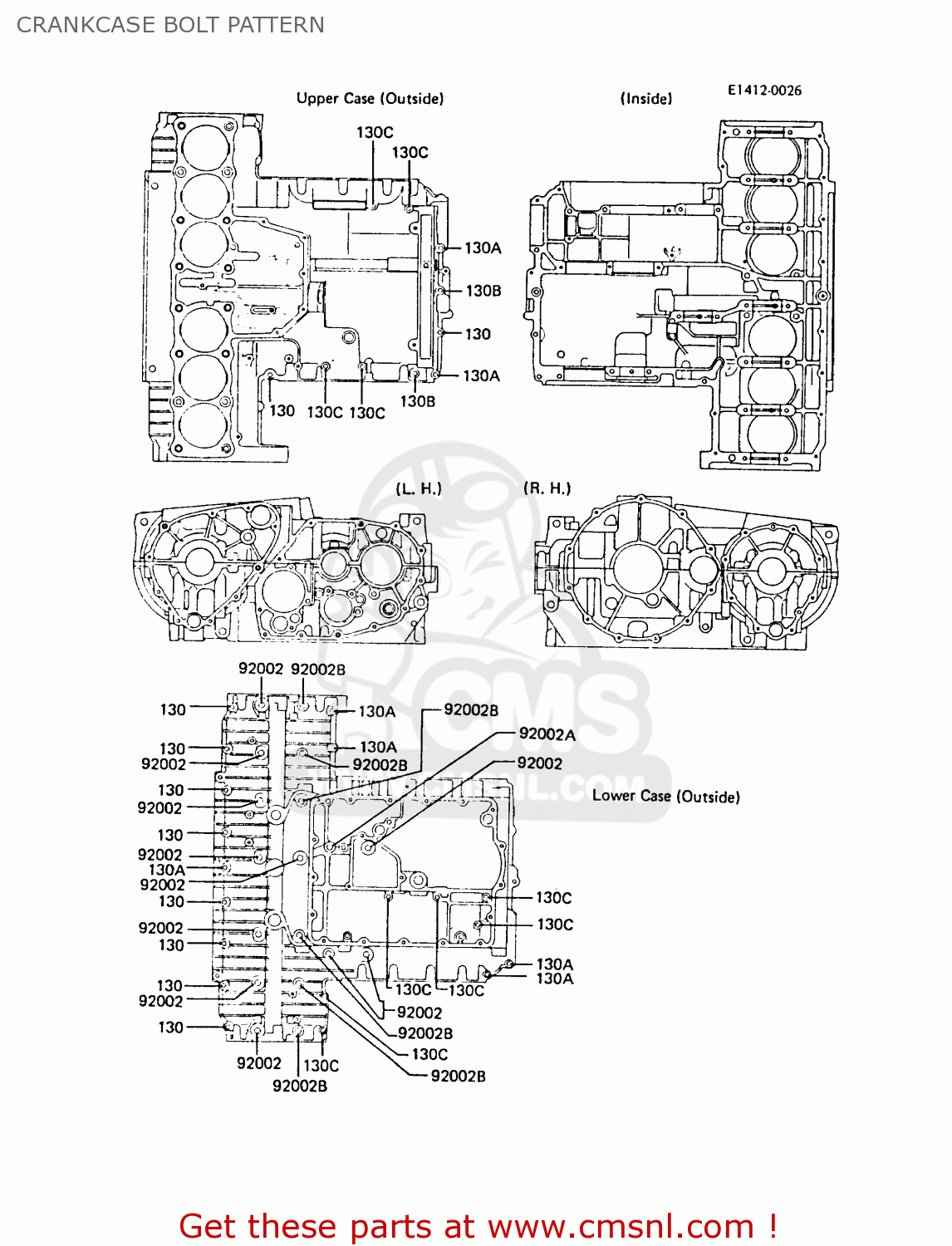

Crankcase bolt pattern diagram ZG1300A3 Z1300 1987 UNITED KINGDOM ST

CRANKCASE BOLT PATTERN ZG1300A3 Z1300 1987 UNITED KINGDOM ST
CRANKCASE BOLT PATTERN ZG1300A3 Z1300 1987 UNITED KINGDOM ST
CRANKCASE BOLT PATTERN ZG1300A3 Z1300 1987 UNITED KINGDOM ST
prices are in EUR
ref
part #
description
quantity
130
130Y0640
ref: 130
BOLT-FLANGED
€ 3.00
130A
130Y0650
ref: 130A
BOLT-FLANGED
€ 3.00
130B
130Y0665
ref: 130B
BOLT-FLANGED
€ 3.00
130C
130Y0685
ref: 130C
BOLT-FLANGED
€ 2.50
92002
920021077
ref: 92002
BOLT,8X95
920021077
€ 7.50
92002A
920021272
ref: 92002A
BOLT,8X130
€ 7.00
92002B
920021274
ref: 92002B
BOLT,8X105
€ 6.00
