Genuine ZG Kawasaki Parts delivered quickly!


TAIL LAMP(ZG1200-B2/B3/B4/B5)

ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA

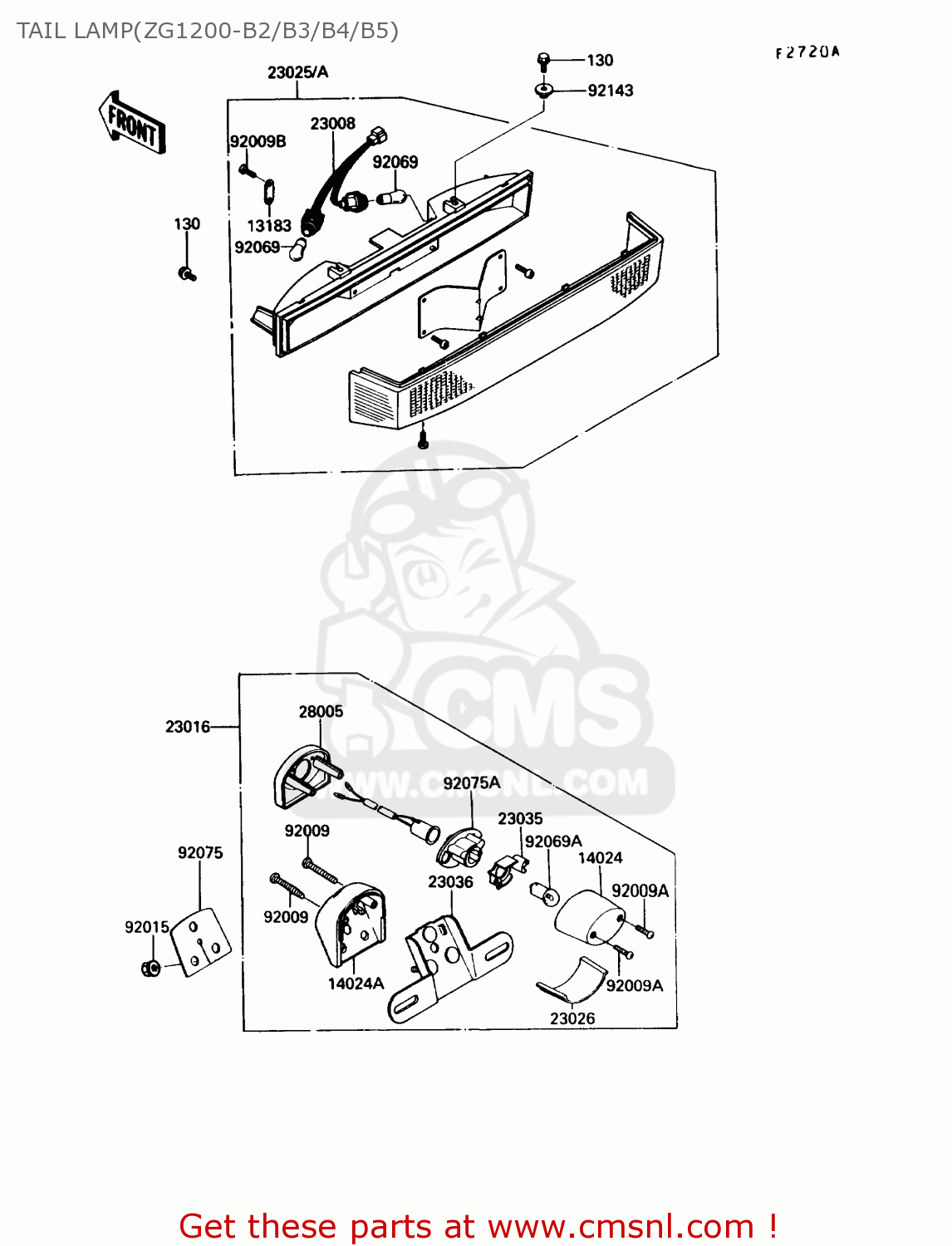

Tail lamp(zg1200-b2/b3/b4/b5) diagram ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA

TAIL LAMP(ZG1200-B2/B3/B4/B5) ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA
TAIL LAMP(ZG1200-B2/B3/B4/B5) ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA
TAIL LAMP(ZG1200-B2/B3/B4/B5) ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130C0620
ref: 130
BOLT-FLANGED,6X20
€ 2.50
13183
131691680
ref: 13183
TAIL LAMP PLATE
€ 2.50
14024
140251725
ref: 14024
COVER,LICENSE LAMP
140251725
€ 12.50
14024A
140251728
ref: 14024A
COVER,LICENSE LAMP
140251728
€ 43.00
23008
230081300
ref: 23008
TAIL LAMP SOCKET ASSEMBLY
€ 23.50
23016
230161062
ref: 23016
LICENSE LAMP ASSEMBLY
€ 106.50
23025
230251180GA
ref: 23025
LAMP-TAIL,M.C.SILVER
€ 361.00
23026
230261064
ref: 23026
LENS,LICENSE LAMP
230261064
€ 24.00
23035
230351060
ref: 23035
REFLECTOR-LAMP,LICENS
€ 13.00
23036
230361105
ref: 23036
TAIL LAMP BRACKET
€ 18.00
28005
280051051
ref: 28005
BODY-LAMP,LICENSE
280051051
€ 19.50
92009
920091263
ref: 92009
SCREW,TAPPING,5X40
920091263
€ 2.50
92009A
920091378
ref: 92009A
SCREW,TAPPING,4X20
920091378
€ 2.50
92009B
920091395
ref: 92009B
SCREW
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92069
92069059
ref: 92069
BULB,12V 32/3CP
92069059
€ 5.50
92069A
920691012
ref: 92069A
BULB,12V 8W 4CP
920691012
€ 4.50
92075
920751676
ref: 92075
DAMPER,LICENSE LAMP
920751676
€ 5.50
92075A
920751694
ref: 92075A
DAMPER,LICENSE LAMP
920751694
€ 12.00
92143
921431025
ref: 92143
COLLAR,L=6.5
921431025
€ 4.00
