CLUTCH(ZG1200-B5)

ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA

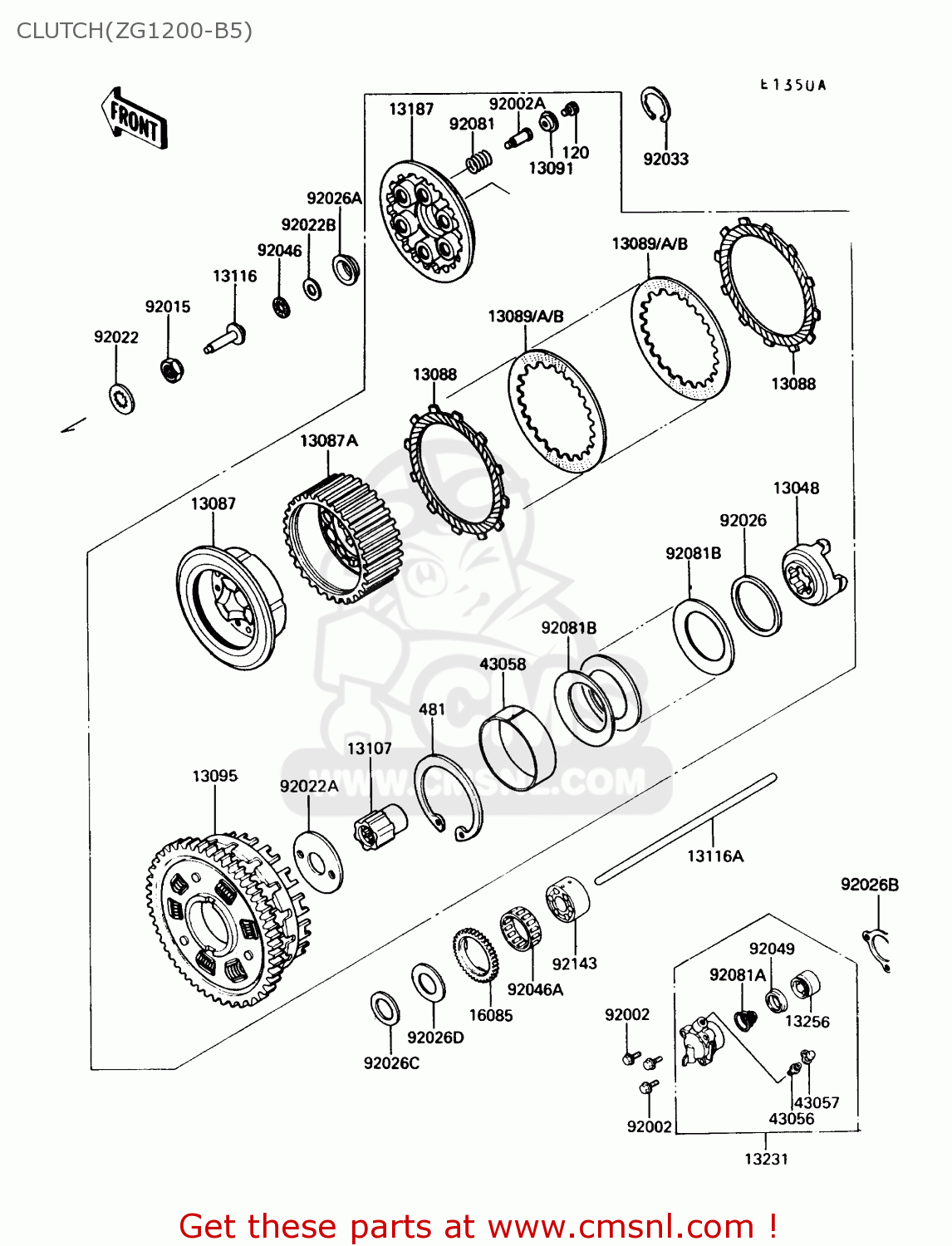

Clutch(zg1200-b5) diagram ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA

CLUTCH(ZG1200-B5) ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA
CLUTCH(ZG1200-B5) ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA
CLUTCH(ZG1200-B5) ZG1200B5 VOYAGER XII 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120Q0616
ref: 120
BOLT,SOCKET,6X16
€ 4.50
481
481J9500
ref: 481
CIRCLIP
€ 16.00
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13087
130871071
ref: 13087
HUB-CLUTCH
€ 164.50
13087A
130871072
ref: 13087A
HUB-CLUTCH
130871072
€ 378.00
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
130881051
€ 14.00
13089
130891004
ref: 13089
PLATE,CLUTCH STEEL (NAS)
130891004
€ 6.50
13089A
130891067
ref: 13089A
PLATE-CLUTCH,T=2.6 (NAS)
130891067
€ 7.00
13089B
130891068
ref: 13089B
PLATE-CLUTCH,T=2.0 (NAS)
130891068
€ 6.50
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
130911041
€ 8.50
13095
130951167
ref: 13095
CLUTCH HOUSING,COMPLETE
€ 625.00
13107
131071266
ref: 13107
SHAFT,CLUTCH
€ 60.50
13116
131161102
ref: 13116
ROD-PUSH,CLUTCH
131161102
€ 26.50
13116A
131161121
ref: 13116A
ROD-PUSH,L=343
€ 20.00
13187
131871055
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871055
€ 64.00
13231
132311057
ref: 13231
RELEASE-ASSY-CLUTCH
€ 121.00
13256
132561051
ref: 13256
PISTON,CLUTCH RELEASE
132561051
€ 38.50
16085
160851157
ref: 16085
GEAR,OIL PUMP,37T
€ 124.50
43056
430561052
ref: 43056
BREATHER-BRAKE
430561052
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43058
430581059
ref: 43058
RING
430581059
€ 13.00
92002
920021612
ref: 92002
BOLT
920021612
€ 3.00
92002A
920021639
ref: 92002A
BOLT,CLUTCH
920021639
€ 7.50
92015
920151555
ref: 92015
NUT,20MM
920151555
€ 9.00
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
920221114
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
920221221
€ 10.50
92022B
920221463
ref: 92022B
WASHER,15.1X29X1.0
920221463
€ 3.00
92026
920261043
ref: 92026
SPACER,3.5X59X70
920261043
€ 19.00
92026A
920261202
ref: 92026A
SPACER,CLUTCH
920261202
€ 31.50
92026B
920261263
ref: 92026B
SPACER,CLUTCH RELEASE
920261263
€ 11.50
92026C
920261306
ref: 92026C
SPACER
920261306
€ 12.50
92026D
920261307
ref: 92026D
SPACER
920261307
€ 12.50
92033
920331177
ref: 92033
RING-SNAP,50MM
920331177
€ 6.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
920461052
€ 14.00
92046A
920461152
ref: 92046A
BEARING-NEEDLE,K55602
920461152
€ 38.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
920491165
€ 13.00
92081
920811114
ref: 92081
SPRING,CLUTCH
920811114
€ 4.50
92081A
920811644
ref: 92081A
SPRING,CLUTCH RELEASE
920811644
€ 5.50
92081B
920811906
ref: 92081B
SPRING
920811906
€ 24.00
92143
920271967
ref: 92143
COLLAR,INPUTSHAFT
920271967
€ 75.00
