FRONT BEVEL GEAR

ZG1200B4 VOYAGER XII 1990 USA CALIFORNIA CANADA

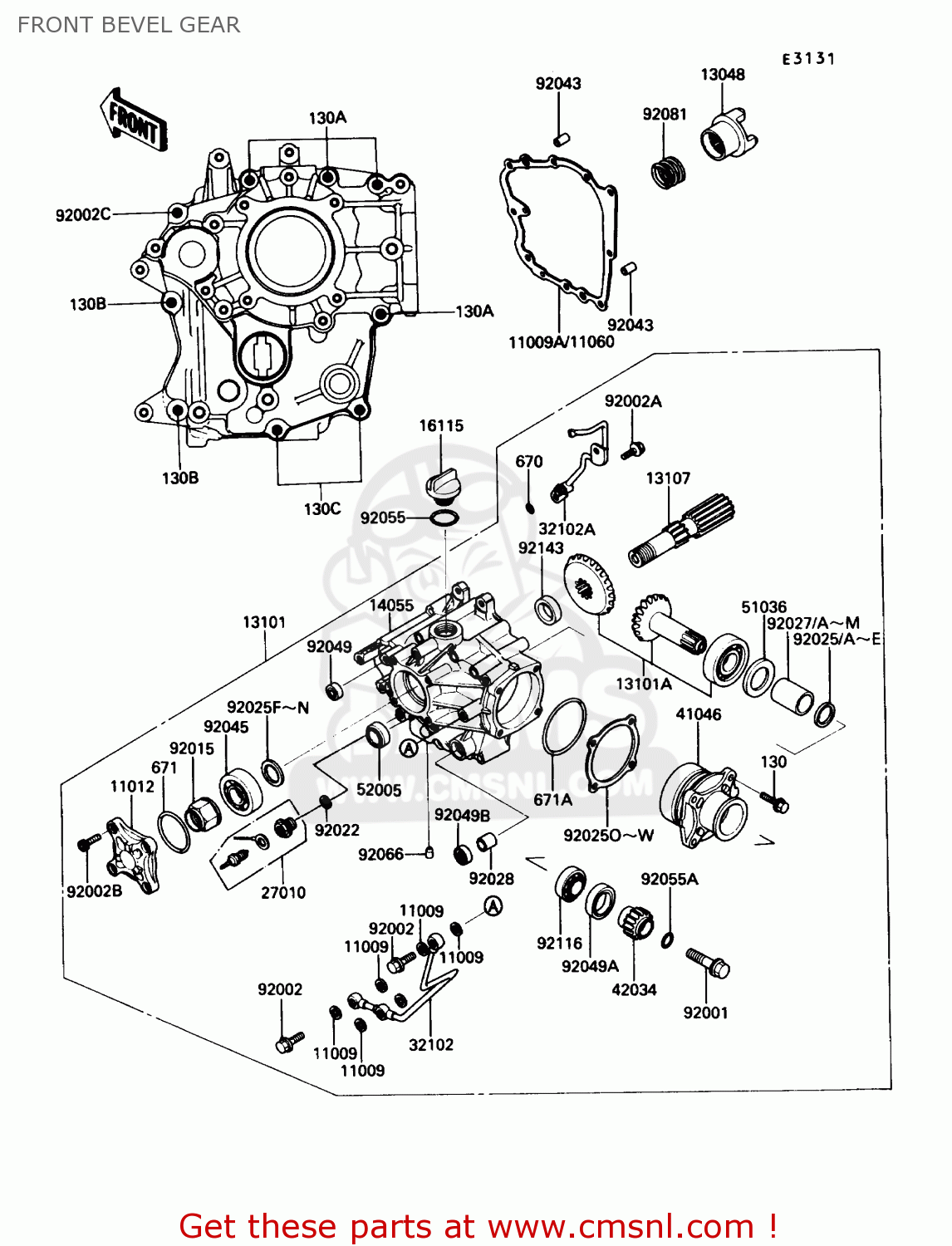

Front bevel gear diagram ZG1200B4 VOYAGER XII 1990 USA CALIFORNIA CANADA

FRONT BEVEL GEAR ZG1200B4 VOYAGER XII 1990 USA CALIFORNIA CANADA
FRONT BEVEL GEAR ZG1200B4 VOYAGER XII 1990 USA CALIFORNIA CANADA
FRONT BEVEL GEAR ZG1200B4 VOYAGER XII 1990 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.50
11009A
110091616
ref: 11009A
GASKET,GEAR CASE
€ 16.00
11012
110121489
ref: 11012
BEARING CAP
€ 20.00
13048
130481074
ref: 13048
CAM-DAMPER
130481074
€ 75.50
13101
131011089
ref: 13101
FRONT BEVEL GEAR ASSEMBLY
€ 1,202.50
13101A
131015027
ref: 13101A
GEAR-ASSY,FRONT BEVEL
€ 1,107.50
13107
131071263
ref: 13107
SHAFT,BEVEL,FR
€ 132.50
14055
140551066
ref: 14055
FRONT BEVEL GEARCASE
€ 429.50
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
27010
270101210
ref: 27010
SWITCH
€ 29.50
32102
320331940
ref: 32102
PIPE,OUTSIDE
€ 29.00
32102A
320331941
ref: 32102A
PIPE,INSIDE
€ 20.50
41046
410461074
ref: 41046
BEARING HOUSING
€ 191.50
42034
420341091
ref: 42034
COUPLING,FR DRIVEN
420341091
€ 96.00
51036
510361002
ref: 51036
CAP
510361002
€ 3.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
520051057
€ 17.50
92001
920011169
ref: 92001
BOLT,12X42
920011169
€ 15.50
92002
920021618
ref: 92002
BOLT,BANJO,8X20
920021618
€ 7.00
92002A
920021656
ref: 92002A
BOLT, 6 X 14
920021656
€ 3.00
92002B
920021696
ref: 92002B
BOLT,SOCKET,6X25
920021696
€ 1.50
92002C
920021779
ref: 92002C
BOLT,6X50
€ 3.00
92015
920151554
ref: 92015
NUT,24MM
920151554
€ 16.50
92022
920221812
ref: 92022
WASHER,16XX22X1.0
920221812
€ 2.50
92025
920251072
ref: 92025
SHIM,1.70T
920251072
€ 6.50
92025A
920251073
ref: 92025A
SHIM,1.72T
920251073
€ 6.50
92025B
920251074
ref: 92025B
SHIM,1.74T
920251074
€ 6.50
92025C
920251075
ref: 92025C
SHIM,1.76T
920251075
€ 6.50
92025D
920251076
ref: 92025D
SHIM,1.78T
920251076
€ 6.50
92025E
920251077
ref: 92025E
SHIM,1.80T
920251077
€ 6.50
92025F
920251688
ref: 92025F
SHIM,25.3X36X0.15
920251688
€ 5.50
92025G
920251689
ref: 92025G
SHIM,25.3X36X0.50
920251689
€ 5.50
92025H
920251690
ref: 92025H
SHIM,25.3X36X0.60
920251690
€ 5.50
92025I
920251691
ref: 92025I
SHIM,25.3X36X0.70
920251691
€ 5.50
92025J
920251692
ref: 92025J
SHIM,25.3X36X0.80
920251692
€ 5.50
92025K
920251693
ref: 92025K
SHIM,25.3X36X0.90
920251693
€ 5.50
92025L
920251694
ref: 92025L
SHIM,25.3X36X1.0
920251694
€ 5.50
92025M
920251695
ref: 92025M
SHIM,25.3X36X1.1
920251695
€ 5.50
92025N
920251696
ref: 92025N
SHIM,25.3X36X1.2
920251696
€ 5.50
92025O
920251724
ref: 92025O
SHIM,0.10T
€ 5.50
130
130P0625
ref: 130
BOLT-FLANGED,6X25
€ 2.50
130A
130Z06100
ref: 130A
BOLT FLANGED
€ 5.50
130B
130Z0630
ref: 130B
BOLT-FLANGED
€ 2.00
130C
130Z0650
ref: 130C
BOLT-FLANGED
€ 2.50
670
670B1506
ref: 670
O RING,6MM
670B1506
€ 1.00
671
671B2565
ref: 671
O RING,65MM
671B2565
€ 6.00
92025P
920251725
ref: 92025P
SHIM,0.15T
€ 5.50
92025Q
920251726
ref: 92025Q
SHIM,0.50T
€ 5.50
92025R
920251727
ref: 92025R
SHIM,0.60T
€ 5.50
92025S
920251728
ref: 92025S
SHIM,0.70T
€ 5.50
92025T
920251729
ref: 92025T
SHIM,0.80T
€ 5.50
92025U
920251730
ref: 92025U
SHIM,0.90T
€ 5.50
92025V
920251731
ref: 92025V
SHIM,1.00T
€ 5.50
92025W
920251732
ref: 92025W
SHIM,1.20T
€ 5.50
92027
920271152
ref: 92027
COLLAR,25.2X29.8X22.8
920271152
€ 12.00
92027A
920271153
ref: 92027A
COLLAR,25.2X29.8X22.9
920271153
€ 12.00
92027B
920271154
ref: 92027B
COLLAR,25.2X29.8X23
920271154
€ 12.00
92027C
920271155
ref: 92027C
COLLAR,25.2X29.8X23.1
920271155
€ 12.50
92027D
920271156
ref: 92027D
COLLAR,25.2X29.8X23.2
920271156
€ 13.00
92027E
920271157
ref: 92027E
COLLAR,25.2X29.8X23.3
920271157
€ 12.00
92027F
920271158
ref: 92027F
COLLAR,25.2X29.8X23.4
920271158
€ 12.00
92027G
920271159
ref: 92027G
COLLAR,25.2X29.8X23.5
920271159
€ 12.00
92027H
920271160
ref: 92027H
COLLAR,25.2X29.8X23.6
920271160
€ 12.00
92027I
920271161
ref: 92027I
COLLAR,25.2X29.8X23.7
920271161
€ 12.00
92027J
920271162
ref: 92027J
COLLAR,25.2X29.8X23.8
920271162
€ 12.00
92027K
920271163
ref: 92027K
COLLAR,25.2X29.8X23.9
920271163
€ 12.00
92027L
920271164
ref: 92027L
COLLAR,25.2X29.8X24
920271164
€ 12.00
92027M
920271165
ref: 92027M
COLLAR,25.2X29.8X24.1
920271165
€ 12.00
92028
920281251
ref: 92028
BUSHING,13X15X20
920281251
€ 8.00
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92045
920451165
ref: 92045
BEARING-BALL,6305C2
920451165
€ 44.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
920491017
€ 6.50
92049A
920491038
ref: 92049A
OIL SEAL,TC35527
920491038
€ 12.50
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551044
ref: 92055A
RING-O,ID=18.64
920551044
€ 3.00
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
920661012
€ 4.00
92081
920811859
ref: 92081
SPRING,CAM DAMPER
920811859
€ 40.00
92116
921161003
ref: 92116
BEARING,R,4T-30205
921161003
€ 41.00
92143
920271968
ref: 92143
COLLAR,25.3X36X10
€ 15.50
671A
671B2575
ref: 671A
O RING
671B2575
€ 4.00
