CRANKCASE BOLT PATTERN

ZG1200B4 VOYAGER XII 1990 USA CALIFORNIA CANADA

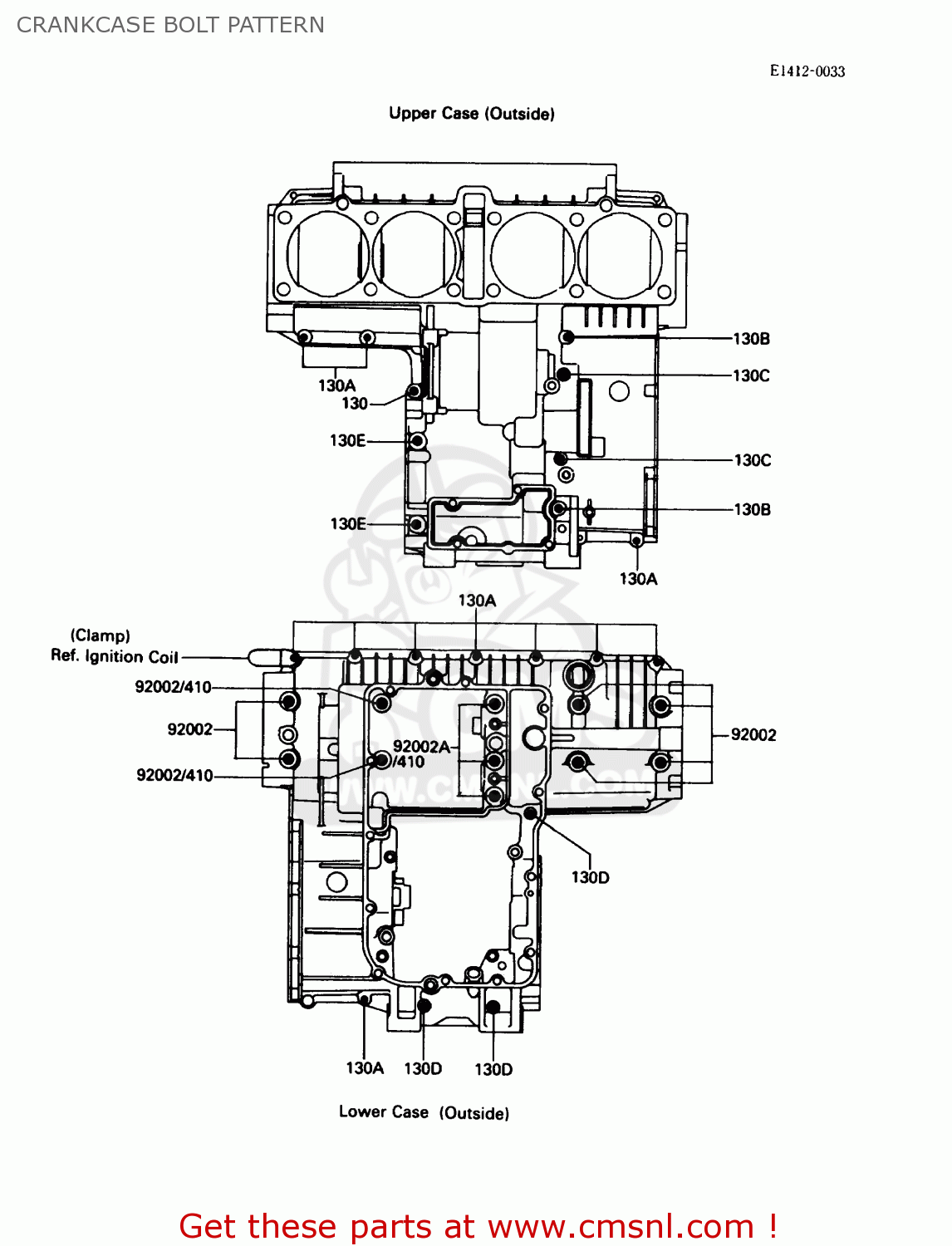

Crankcase bolt pattern diagram ZG1200B4 VOYAGER XII 1990 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130Y0635
ref: 130

BOLT-FLANGED

€ 2.50

130A

130Y0640
ref: 130A

BOLT-FLANGED

€ 3.00

130B

130Y0690
ref: 130B

BOLT-FLANGED

€ 4.00

130C

130Z06105
ref: 130C

BOLT-FLANGED

€ 5.00

130D

130Z06120
ref: 130D

BOLT-FLANGED

€ 5.50

130E

130Z0870
ref: 130E

BOLT-FLANGED

€ 6.00

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

92002

920021651
ref: 92002

BOLT,10X95

€ 6.50

92002A

920021652
ref: 92002A

BOLT,10X145

€ 9.50
