VALVE(S)

ZG1200B17 VOYAGER XII 2003 USA CALIFORNIA CANADA

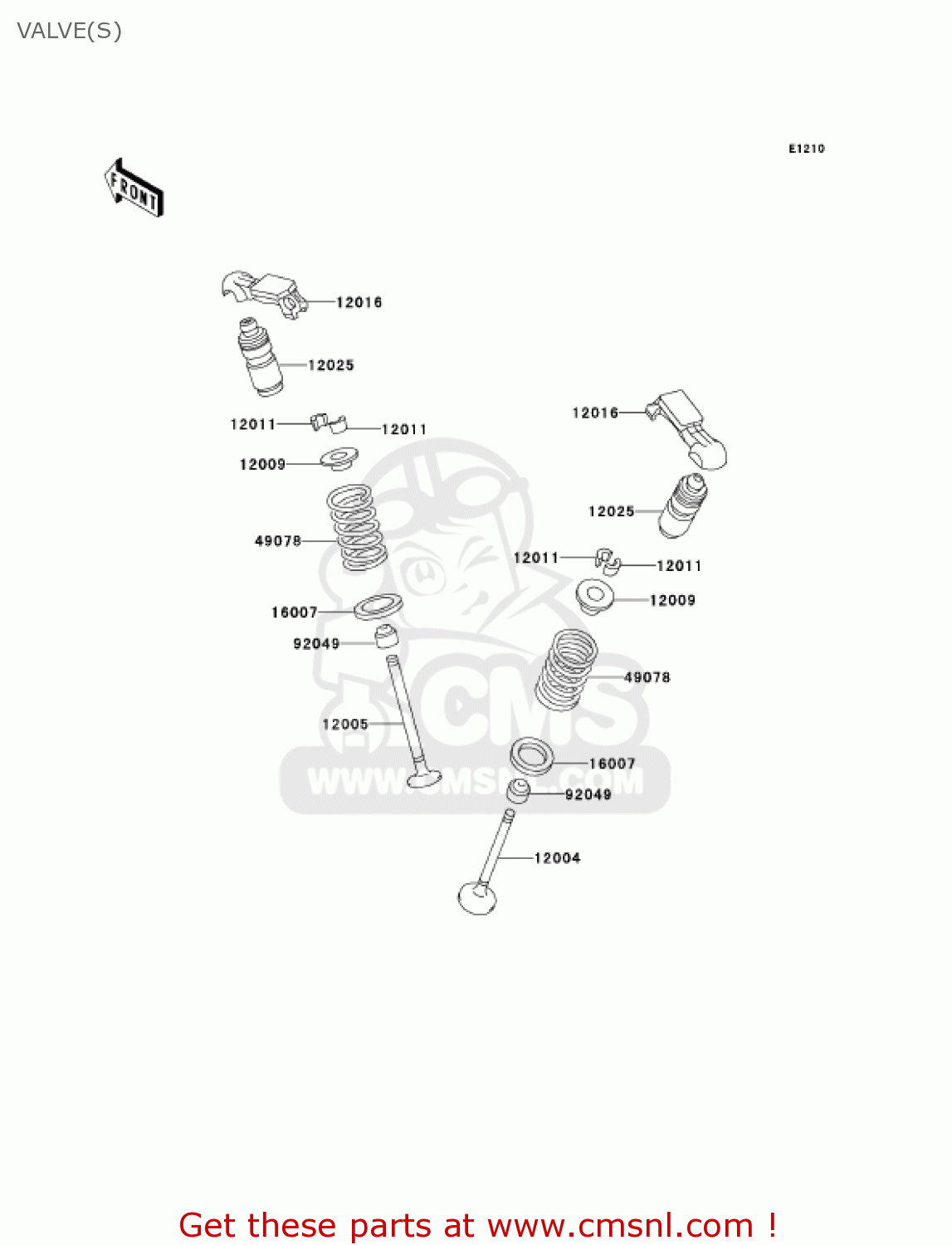

Valve(s) diagram ZG1200B17 VOYAGER XII 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

12004

120041065
ref: 12004

VALVE-INTAKE

€ 39.00

12005

120051074
ref: 12005

VALVE-EXHAUST

€ 56.50

12009

120091054
ref: 12009

RETAINER-VALVE SPRING

€ 7.00

12011

120111003
ref: 12011

COLLET

€ 3.00

12016

120161066
ref: 12016

ARM-ROCKER

€ 59.50

12025

120251052
ref: 12025

ADJUSTER-LASH

€ 81.00

16007

160071178
ref: 16007

SEAT-SPRING,17.5X23.8

€ 4.00

49078

490781073
ref: 49078

SPRING-ENGINE VALVE

€ 11.50

92049

920491062
ref: 92049

OIL SEAL,RVC2-5.5X8.5

€ 6.50
