CYLINDER HEAD COVER

ZG1200B17 VOYAGER XII 2003 USA CALIFORNIA CANADA

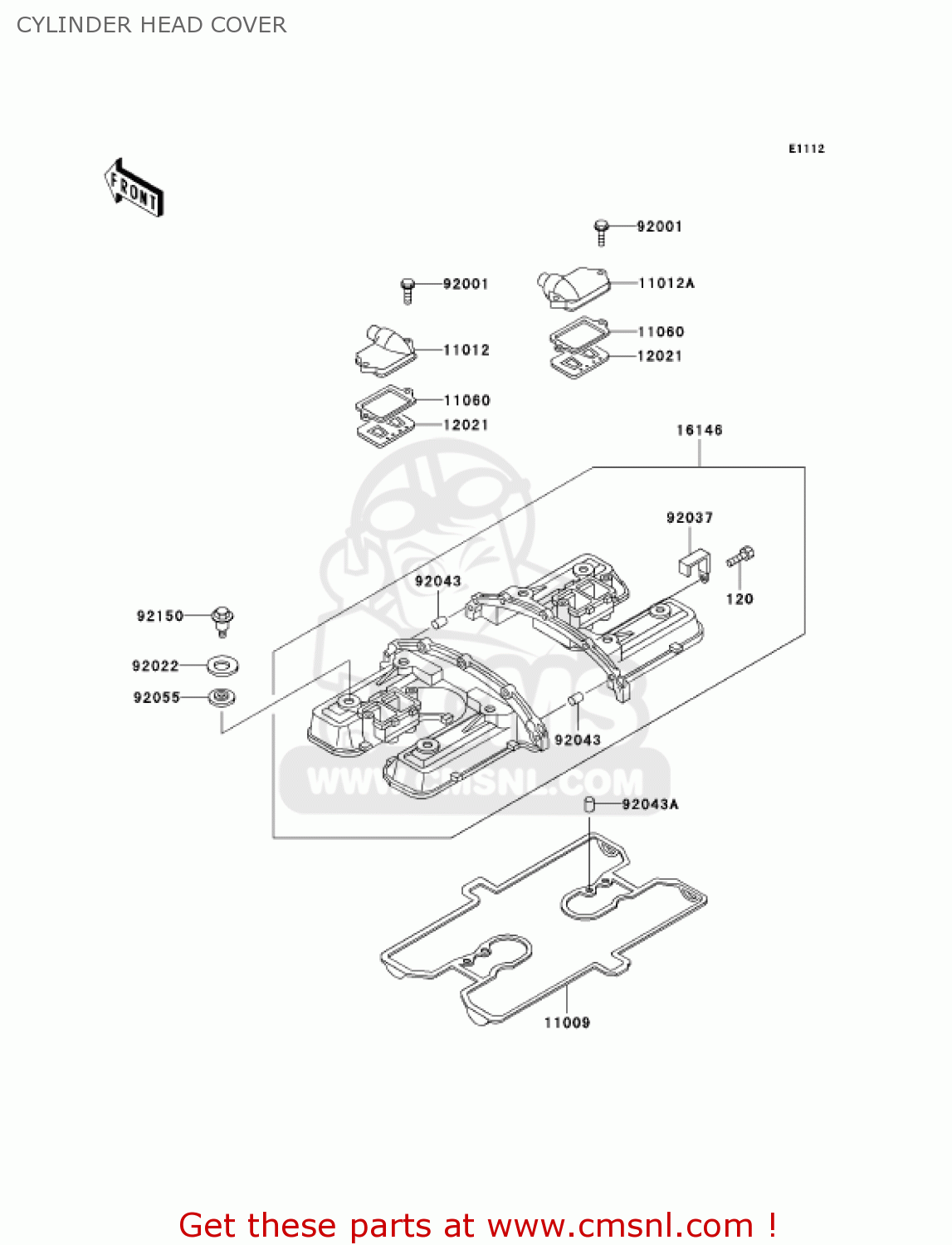

Cylinder head cover diagram ZG1200B17 VOYAGER XII 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0625
ref: 120

BOLT,6X25

€ 1.50

11009

110091559
ref: 11009

GASKET,CYLINDER HEAD (NAS)

€ 55.50

11012

110121487
ref: 11012

REED VALVE CAP,LH

€ 19.00

11012A

110121488
ref: 11012A

CAP,REED VALVE,RH

€ 20.00

11060

110601096
ref: 11060

REED VALVE GASKET

€ 3.50

12021

120211119
ref: 12021

VALVE-ASSY-REED

€ 59.00

16146

161461089
ref: 16146

COVER ASSEMBLY

€ 195.00

92001

920011352
ref: 92001

BOLT,FLANGED,6X22

€ 2.50

92022

920221637
ref: 92022

WASHER,HEAD COVER BOL

€ 3.50

92037

920371764
ref: 92037

CLAMP

€ 4.50

92043

920431262
ref: 92043

PIN,DOWEL,4.2X6X12

€ 2.50

92043A

920431263
ref: 92043A

PIN,DOWEL,6.2X8X14

€ 0.50

92055

920551225
ref: 92055

RING-O,HEAD COVER BOL

€ 4.50

92150

921501447
ref: 92150

BOLT

€ 3.00

CYLINDER HEAD COVER

all assemblies
