SWINGARM

ZG1200B16 VOYAGER XII 2002 USA CALIFORNIA CANADA

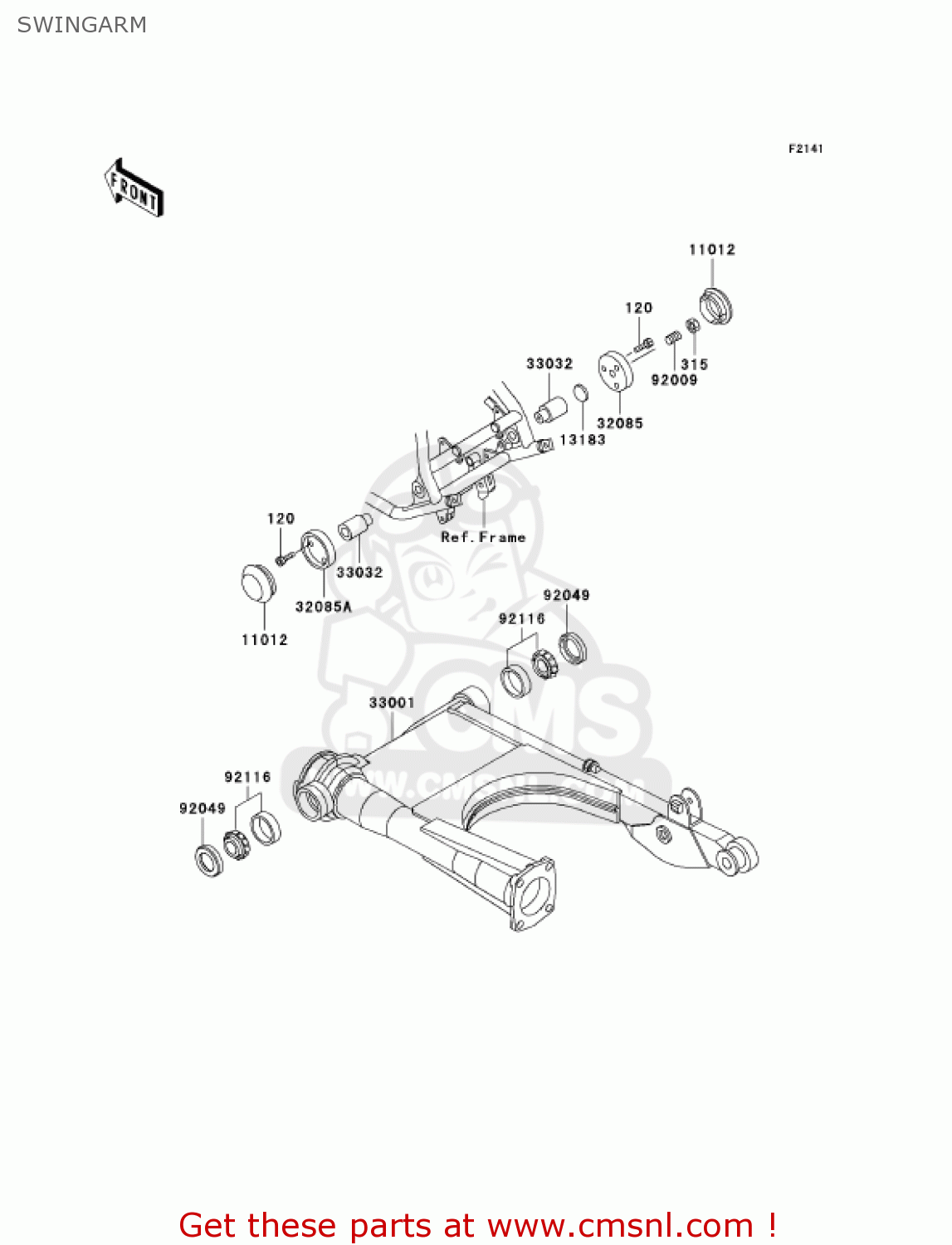

Swingarm diagram ZG1200B16 VOYAGER XII 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120S0612

120S0612
ref: 120S0612

BOLT-SOCKET

€ 1.50

315C1200

315C1200
ref: 315C1200

NUT-HEX-FINE

€ 3.00

11012

110121433
ref: 11012

CAP,SWING ARM

€ 15.00

13183

131831004
ref: 13183

PLATE,25X4.5

€ 4.00

32085

320851227
ref: 32085

SWING ARM SHAFT STOPPER

€ 31.00

32085

320851228
ref: 32085

SWING ARM SHAFT STOPPER

€ 31.00

33001

330011304
ref: 33001

ARM-COMP-SWING

€ 860.00

33032

330321120
ref: 33032

SHAFT-SWING ARM

€ 35.00

92009

920091374
ref: 92009

SCREW,SOCKET,12X22

€ 6.50

92049

920491030
ref: 92049

OIL SEAL,26406

€ 6.50

92116

921161001
ref: 92116

BEARING,R,4T30203E1

€ 39.00
