GEAR CHANGE DRUM/SHIFT FORK(S)

ZG1200B16 VOYAGER XII 2002 USA CALIFORNIA CANADA

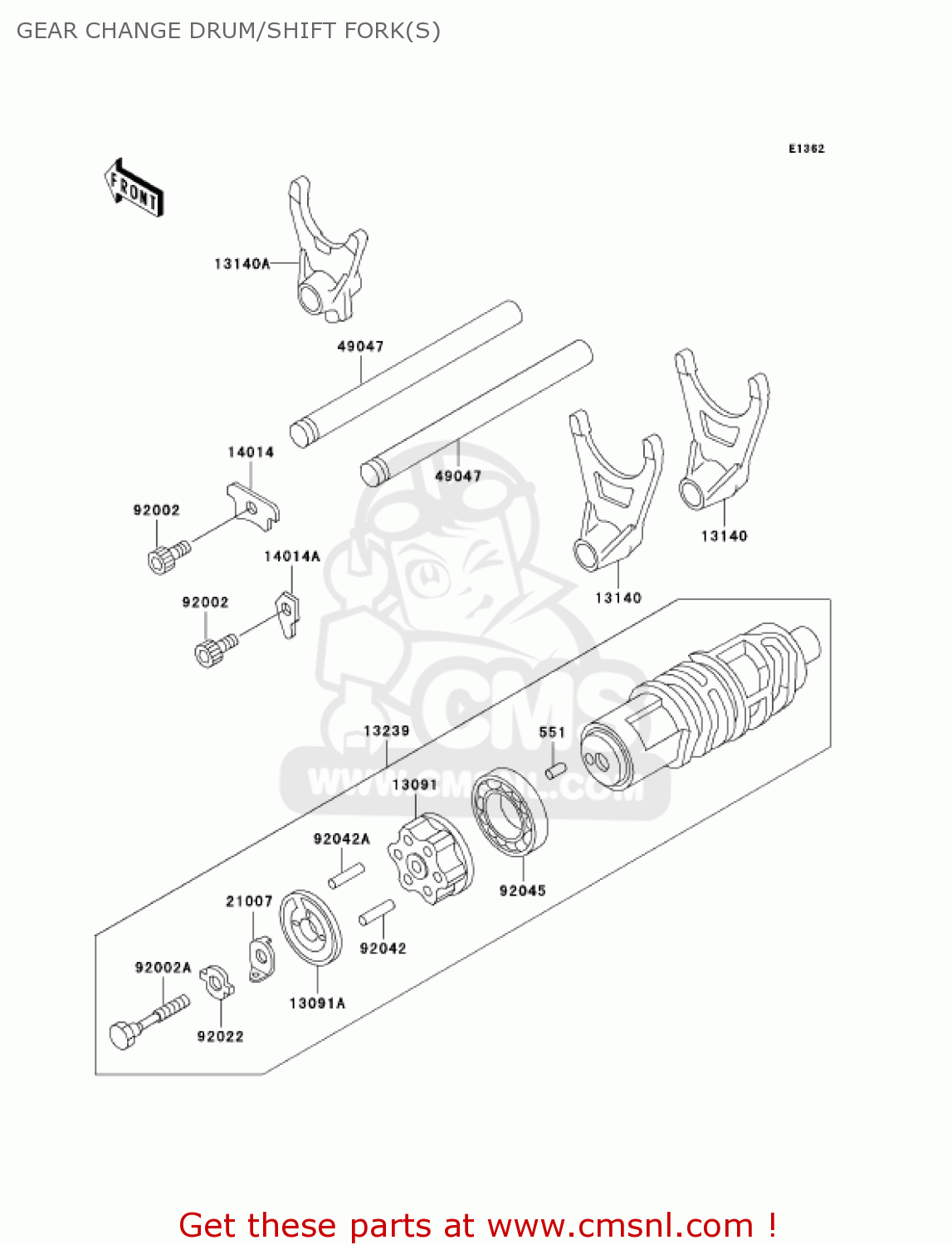

Gear change drum/shift fork(s) diagram ZG1200B16 VOYAGER XII 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

13091

130911409
ref: 13091

HOLDER

€ 25.00

13091A

130911442
ref: 13091A

HOLDER,CH.DRUM PIN

€ 17.50

13140

131401146
ref: 13140

FORK-SHIFT

€ 83.50

13140A

131401147
ref: 13140A

FORK-SHIFT

€ 66.50

13239

132391129
ref: 13239

GEAR CHANGE DRUM ASSEMBLY

€ 142.00

14014

140141073
ref: 14014

PLATE-POSITION

€ 4.50

14014A

140141074
ref: 14014A

PLATE-POSITION

€ 3.50

21007

210071192
ref: 21007

OVERDRIVE ROTOR

€ 4.50

49047

490471055
ref: 49047

ROD-SHIFT

€ 25.00

92002

920021592
ref: 92002

BOLT,6X12

€ 2.50

92002A

920021873
ref: 92002A

BOLT

€ 5.50

92022

920221824
ref: 92022

WASHER

€ 2.50

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92042A

92042020
ref: 92042A

PIN-GEAR CHANGE DRUM

€ 3.00

92045

920451045
ref: 92045

BEARING-BALL,16005

€ 27.00
