RADIATOR

ZG1200B13 VOYAGER XII 1999 USA CALIFORNIA CANADA

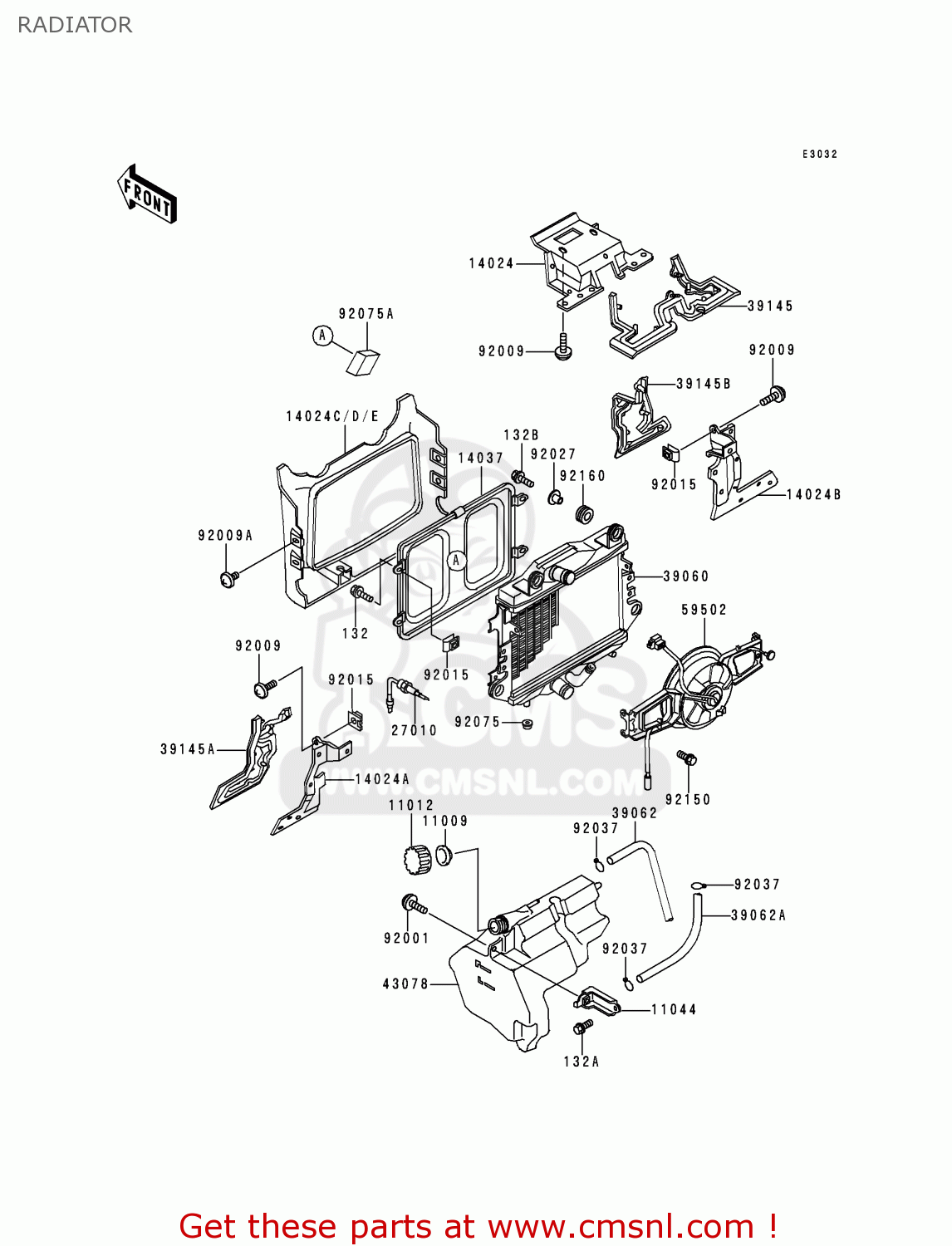

Radiator diagram ZG1200B13 VOYAGER XII 1999 USA CALIFORNIA CANADA

RADIATOR ZG1200B13 VOYAGER XII 1999 USA CALIFORNIA CANADA
RADIATOR ZG1200B13 VOYAGER XII 1999 USA CALIFORNIA CANADA
RADIATOR ZG1200B13 VOYAGER XII 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132B
132J0825
ref: 132B
BOLT-FLANGED-SMALL
132J0825
€ 2.50
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11044
110441744
ref: 11044
RESERVOIR BRACKET
€ 4.50
14024
140241158
ref: 14024
RADIATOR COVER,UPPER
€ 65.50
14024A
140241159
ref: 14024A
RADIATOR COVER,LH
€ 63.00
14024B
140241160
ref: 14024B
RADIATOR COVER,RH
€ 63.00
14024E
1402412937X
ref: 14024E
RADIATOR COVER,PEARL BOULOGNE
€ 161.00
14037
140371076
ref: 14037
SCREEN
€ 77.00
27010
270101180
ref: 27010
SWITCH,FAN
270101180
€ 104.50
39060
390601066
ref: 39060
RADIATOR
€ 972.50
39062
390621075
ref: 39062
HOSE-COOLING
€ 17.50
39062A
390621155
ref: 39062A
HOSE-COOLING 5.5X10.5
€ 25.00
39145
391451061
ref: 39145
SEAL TRIM
€ 30.00
39145A
391451063
ref: 39145A
COVER SEAL TRIM,LH
€ 25.00
39145B
391451065
ref: 39145B
COVER SEAL TRIM,RH
€ 25.00
43078
430781067
ref: 43078
RESERVOIR
€ 52.00
59502
595021060
ref: 59502
FAN ASSEMBLY
€ 466.00
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
920011516
€ 3.00
92009
920091181
ref: 92009
SCREW,6X18
920091181
€ 2.00
92009A
920091662
ref: 92009A
SCREW
920091662
€ 2.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92075
920751469
ref: 92075
DAMPER,RADIATOR GUARD
920751469
€ 3.50
92075A
920751981
ref: 92075A
DAMPER,SCREEN
920751981
€ 2.50
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
