HEADLIGHT(S)

ZG1200B13 VOYAGER XII 1999 USA CALIFORNIA CANADA

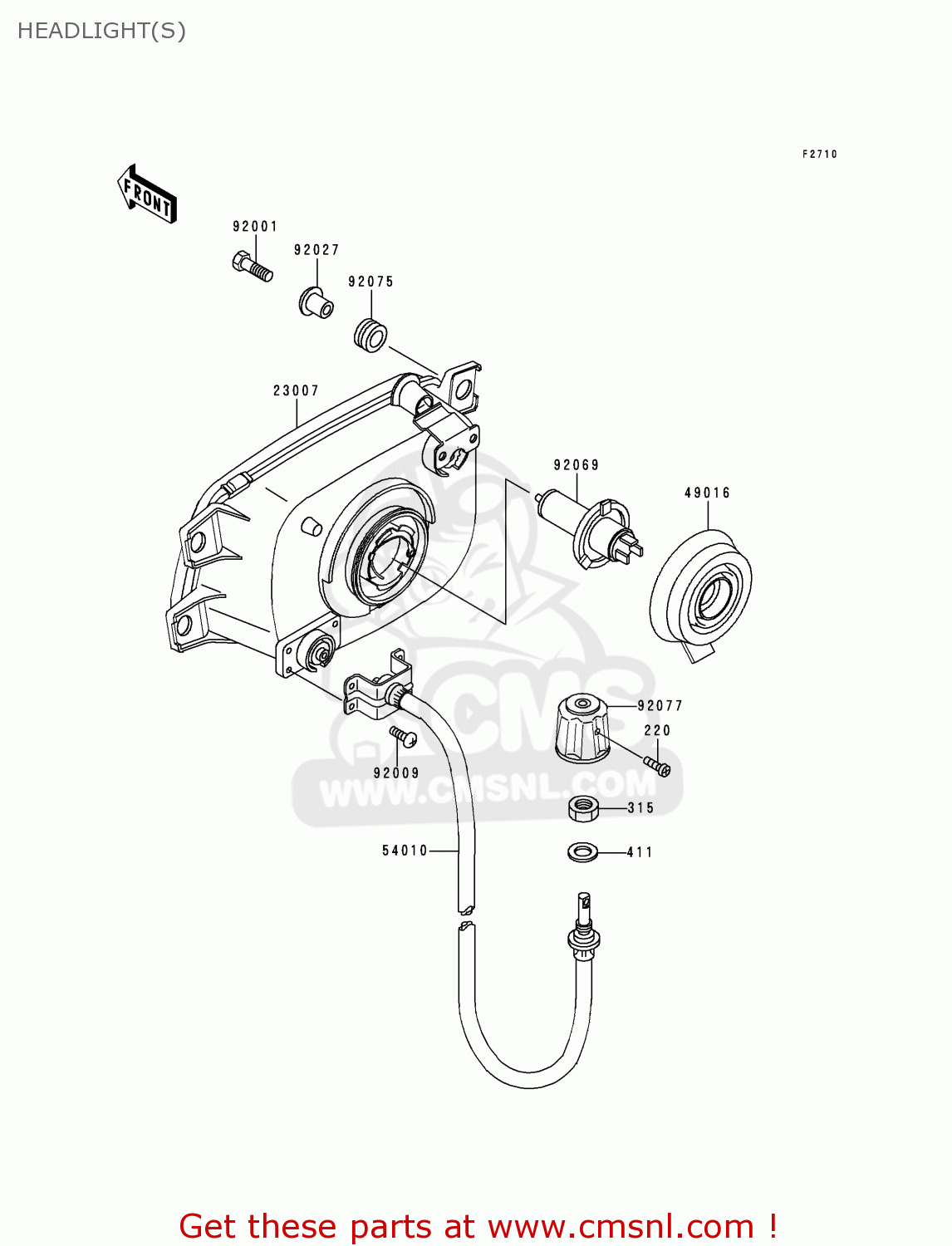

Headlight(s) diagram ZG1200B13 VOYAGER XII 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

220

220C0312
ref: 220

SCREW-PAN-CROS

€ 2.00

315

315C1200
ref: 315

NUT-HEX-FINE

€ 3.00

411

411F1200
ref: 411

WASHER-PLAIN

€ 2.00

23007

230071144
ref: 23007

LENS-COMP,HEAD LAMP

€ 245.50

49016

490161108
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.00

54010

540101058
ref: 54010

CABLE,HEAD LAMP

€ 28.00

92001

920011284
ref: 92001

BOLT,HEX HEAD,6X25

€ 3.00

92009

920091340
ref: 92009

SCREW,TAPPING,4X14

€ 2.00

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92075

920751690
ref: 92075

DAMPER,10X24X12

€ 3.00

92077

920771064
ref: 92077

KNOB,HEAD LAMP CABLE

€ 8.00
