Genuine ZG Kawasaki Parts delivered quickly!


CARBURETOR PARTS

ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA

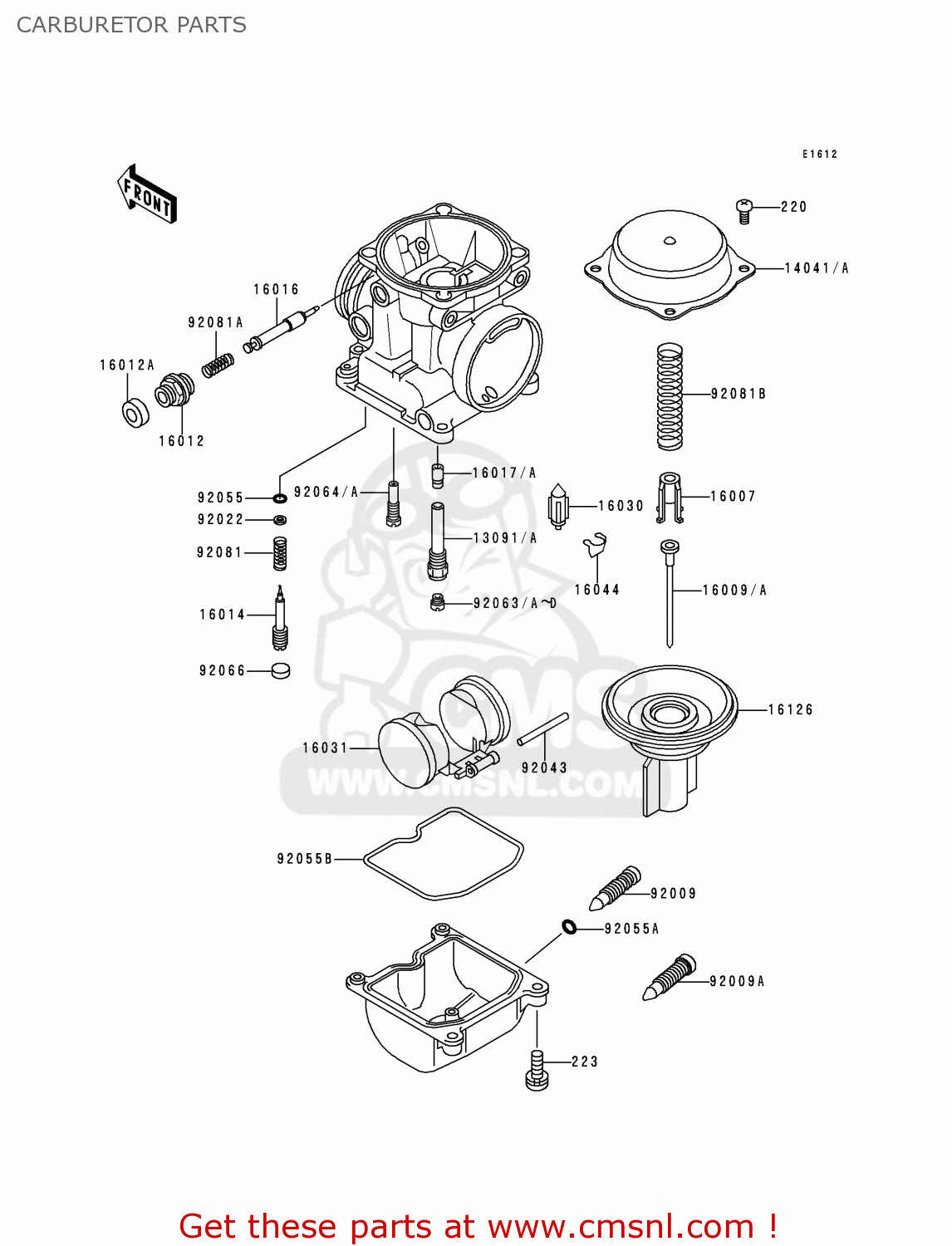

Carburetor parts diagram ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA

CARBURETOR PARTS ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA
CARBURETOR PARTS ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA
CARBURETOR PARTS ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911259
ref: 13091
CNUS
HOLDER,NEEDLE JET
130911259
€ 19.00
13091A
130911463
ref: 13091A
CA
HOLDER,NEEDLE JET
€ 18.50
14041
140411076
ref: 14041
TOP-CHAMBER
140411076
€ 68.00
14041A
140411077
ref: 14041A
TOP-CHAMBER,MIXING,IN
€ 68.00
16007
160071120
ref: 16007
SEAT-SPRING
160071120
€ 16.50
16009
160091316
ref: 16009
CNUS
NEEDLE-JET,N36G
160091316
€ 25.00
16009A
160091317
ref: 16009A
CA
NEEDLE-JET,N36H
€ 20.50
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16017
160171313
ref: 16017
CN
JET-NEEDLE
160171313
€ 32.00
16017A
160171316
ref: 16017A
CAUS
JET,NEEDLE
€ 24.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261159
ref: 16126
VALVE,VACUUM
161261159
€ 176.50
92009
920091095
ref: 92009
SCREW,DRAIN
920091095
€ 10.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
920551053
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631007
ref: 92063
MAIN JET, #110
€ 9.50
92063A
920631009
ref: 92063A
JET-MAIN,#105
920631009
€ 10.00
92063B
920631115
ref: 92063B
JET-MAIN,#102
920631115
€ 10.00
92063C
920631116
ref: 92063C
JET-MAIN,#108
920631116
€ 9.50
92063D
920631117
ref: 92063D
JET-MAIN,#112
920631117
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
223C0416
€ 2.50
92064A
920641119
ref: 92064A
JET-PILOT,#38
920641119
€ 12.00
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811925
ref: 92081B
SPRING,VACUUM VALVE
920811925
€ 16.00
