ACCESSORY(SIDE BACK)

ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA

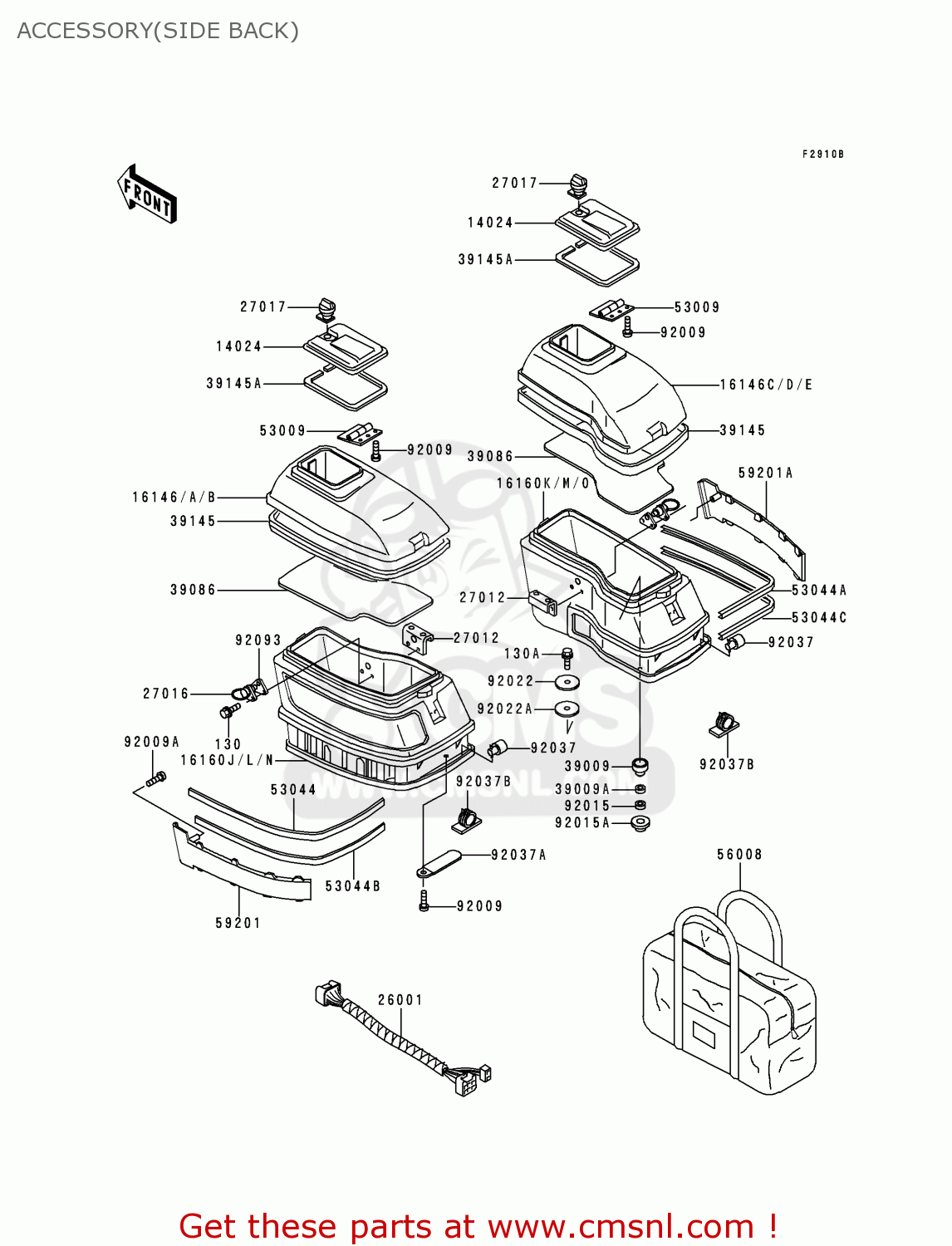

Accessory(side back) diagram ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA

ACCESSORY(SIDE BACK) ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA
ACCESSORY(SIDE BACK) ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA
ACCESSORY(SIDE BACK) ZG1200B10 VOYAGER XII 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
14024
140241178
ref: 14024
COVER,SIDE BAG
140241178
€ 23.00
16146
161461063L1
ref: 16146
COVER-ASSY, SIDE BAG,
€ 637.00
16146C
161461064L1
ref: 16146C
COVER-ASSY, SIDE BAG,
€ 637.00
16160J
16160502615
ref: 16160J
BODY,SIDE BAG,LH,RED/
€ 1,341.50
16160K
16160502715
ref: 16160K
BODY,SIDE BAG,RH,RED
€ 1,341.50
26001
260011757
ref: 26001
SADDLE BAG HARNESS
€ 12.50
27012
270121339
ref: 27012
SADDLE BAG HOOK
€ 16.00
27016
270161054
ref: 27016
BAG LOCK ASSEMBLY
€ 42.00
27017
270171126
ref: 27017
LOCK,BAG
270171126
€ 33.00
39009
390091051
ref: 39009
BLOCKED-MOUNT,BAG
€ 13.50
39009A
390091052
ref: 39009A
BAG MOUNT BLOCK
€ 2.50
39086
390861052
ref: 39086
PAD-STORAGE,BAG
€ 125.00
39145
391451068
ref: 39145
TRIM-SEAL,SIDE BAG
391451068
€ 36.50
39145A
391451071
ref: 39145A
TRIM-SEAL,SIDE BAG
391451071
€ 6.00
53009
530091062
ref: 53009
HINGE,SIDE BAG
530091062
€ 21.50
53044
530441143
ref: 53044
TRIM,SIDE BAG,UPP,LH
530441143
€ 35.00
53044A
530441144
ref: 53044A
TRIM,SIDE BAG,UPP,RH
€ 35.00
53044B
530441145
ref: 53044B
TRIM,S.BAG,LH
€ 36.00
53044C
530441146
ref: 53044C
TRIM,SIDE BAG,LWR,RH
€ 35.00
56008
560081055
ref: 56008
BAG
€ 283.00
59201
592011051
ref: 59201
BUMPER,LH
592011051
€ 71.50
59201A
592011052
ref: 59201A
BUMPER,RH
€ 71.50
130
130C0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
130A
130C0630
ref: 130A
BOLT-FLANGED
130C0630
€ 2.50
92009
920091040
ref: 92009
SCREW,TAPPING,4X10
920091040
€ 2.50
92009A
920091429
ref: 92009A
SCREW
€ 1.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92015A
920151628
ref: 92015A
NUT
920151628
€ 3.50
92022
920221392
ref: 92022
WASHER,7X28X1.6,BLACK
920221392
€ 3.00
92022A
920221813
ref: 92022A
WASHER,5X28X1
€ 2.50
92037
920371290
ref: 92037
CLAMP,CARBURETOR
920371290
€ 4.50
92037A
920371726
ref: 92037A
CLAMP,HARNESS
920371726
€ 3.50
92037B
920371793
ref: 92037B
CLAMP,HARNESS
€ 4.00
92093
920931209
ref: 92093
LOCK SEAL
€ 3.00
