Genuine ZG Kawasaki Parts delivered quickly!


FRONT HUB

ZG1000A5 CONCOURS 1990 USA CALIFORNIA CANADA

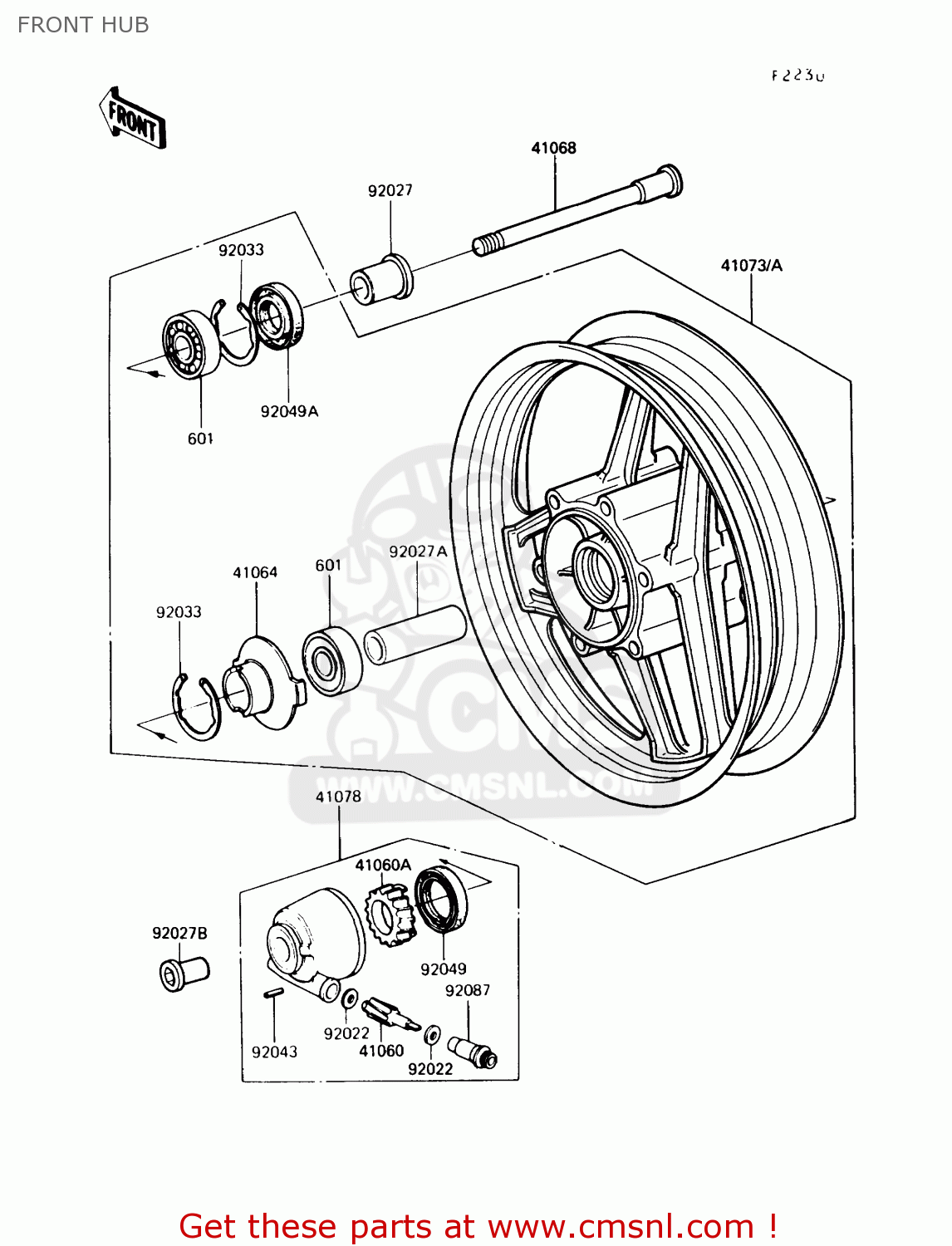

Front hub diagram ZG1000A5 CONCOURS 1990 USA CALIFORNIA CANADA

FRONT HUB ZG1000A5 CONCOURS 1990 USA CALIFORNIA CANADA
FRONT HUB ZG1000A5 CONCOURS 1990 USA CALIFORNIA CANADA
FRONT HUB ZG1000A5 CONCOURS 1990 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
601
601B6302UG
ref: 601
BEARING BALL
€ 29.00
41060
410601016
ref: 41060
PINION,SPEEDOMETER,9T
410601016
€ 21.50
41060A
410601041
ref: 41060A
GEAR-METER SCREW,25T
410601041
€ 19.00
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
410641006
€ 9.50
41068
410681164
ref: 41068
AXLE,FR
410681164
€ 45.00
41073A
410731423CX
ref: 41073A
WHEEL-ASSY,FR,SILVER
€ 695.00
41078
410781061
ref: 41078
CASE-ASSY-METER GEAR
410781061
€ 102.00
92022
41063001
ref: 92022
WASHER-THRST SPD PINI
41063001
€ 3.00
92027
920271225
ref: 92027
COLLAR,FR AXLE L=30MM
920271225
€ 11.50
92027A
920271725
ref: 92027A
COLLAR,L=71
920271725
€ 9.00
92027B
920271726
ref: 92027B
COLLAR,FR AXLE,L=36.5
920271726
€ 17.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92043
41082001
ref: 92043
PIN-SPRING
41082001
€ 2.50
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
920491057
€ 7.50
92049A
920491058
ref: 92049A
OIL SEAL,BJN22425
920491058
€ 7.50
92087
920871002
ref: 92087
BUSHING-METER GEAR
920871002
€ 14.50
