BRAKE PEDAL

ZG1000A5 CONCOURS 1990 USA CALIFORNIA CANADA

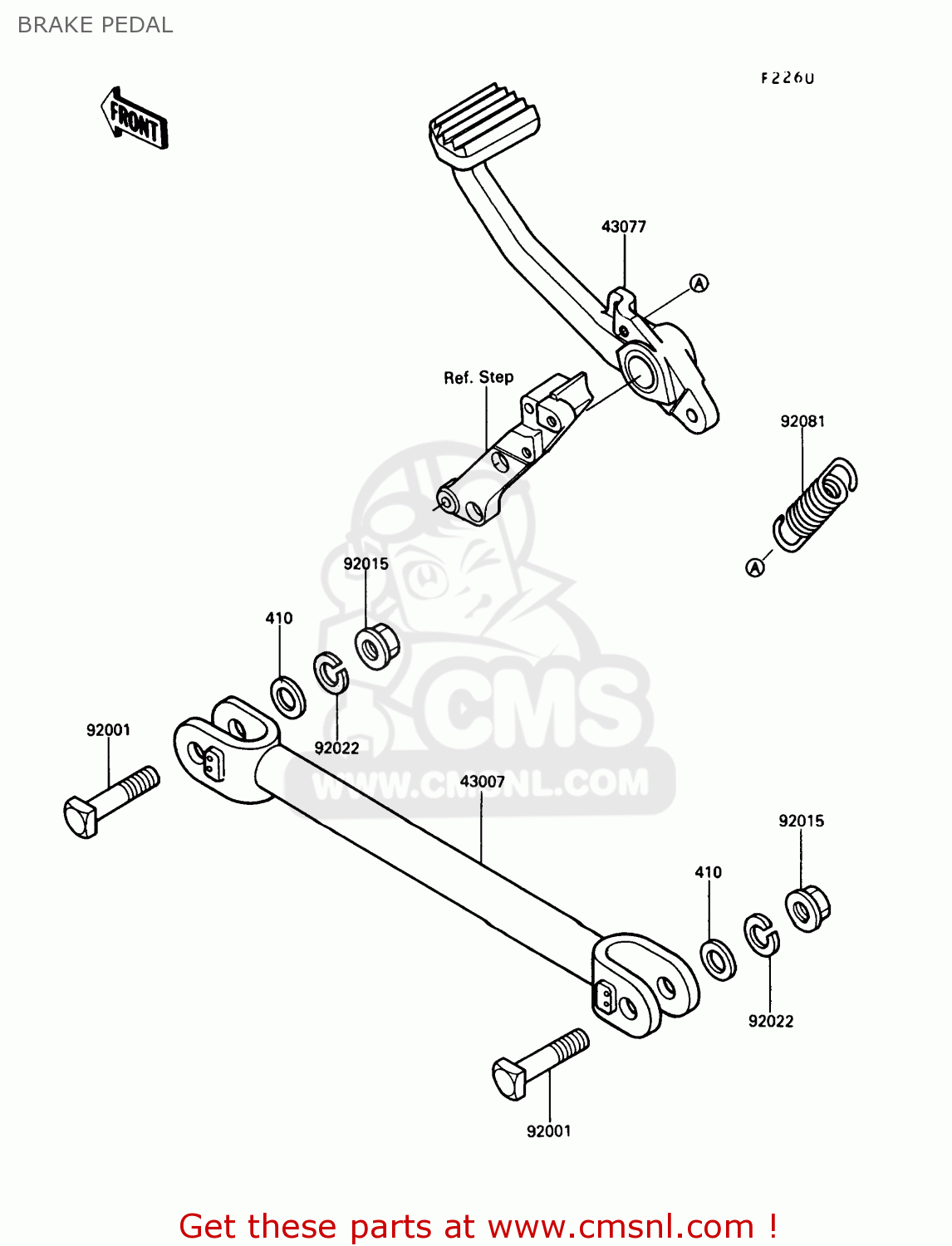

Brake pedal diagram ZG1000A5 CONCOURS 1990 USA CALIFORNIA CANADA

BRAKE PEDAL ZG1000A5 CONCOURS 1990 USA CALIFORNIA CANADA

BRAKE PEDAL ZG1000A5 CONCOURS 1990 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

43007

430071130
ref: 43007

ROD-TORQUE

€ 69.00

43077

430771062
ref: 43077

LEVER-ASSY-BRAKE,PEDA

€ 99.50

92001

920011208
ref: 92001

BOLT,TORQUE ROD,FRONT

€ 3.50

92015

920151429
ref: 92015

NUT,10MM

€ 4.50

92022

920221540
ref: 92022

WASHER,SPRING,10MM

€ 2.50

92081

920811845
ref: 92081

SPRING,BRAKE PEDAL

€ 6.50
