METER(S)

ZG1000A19 CONCOURS 2004 USA CALIFORNIA CANADA

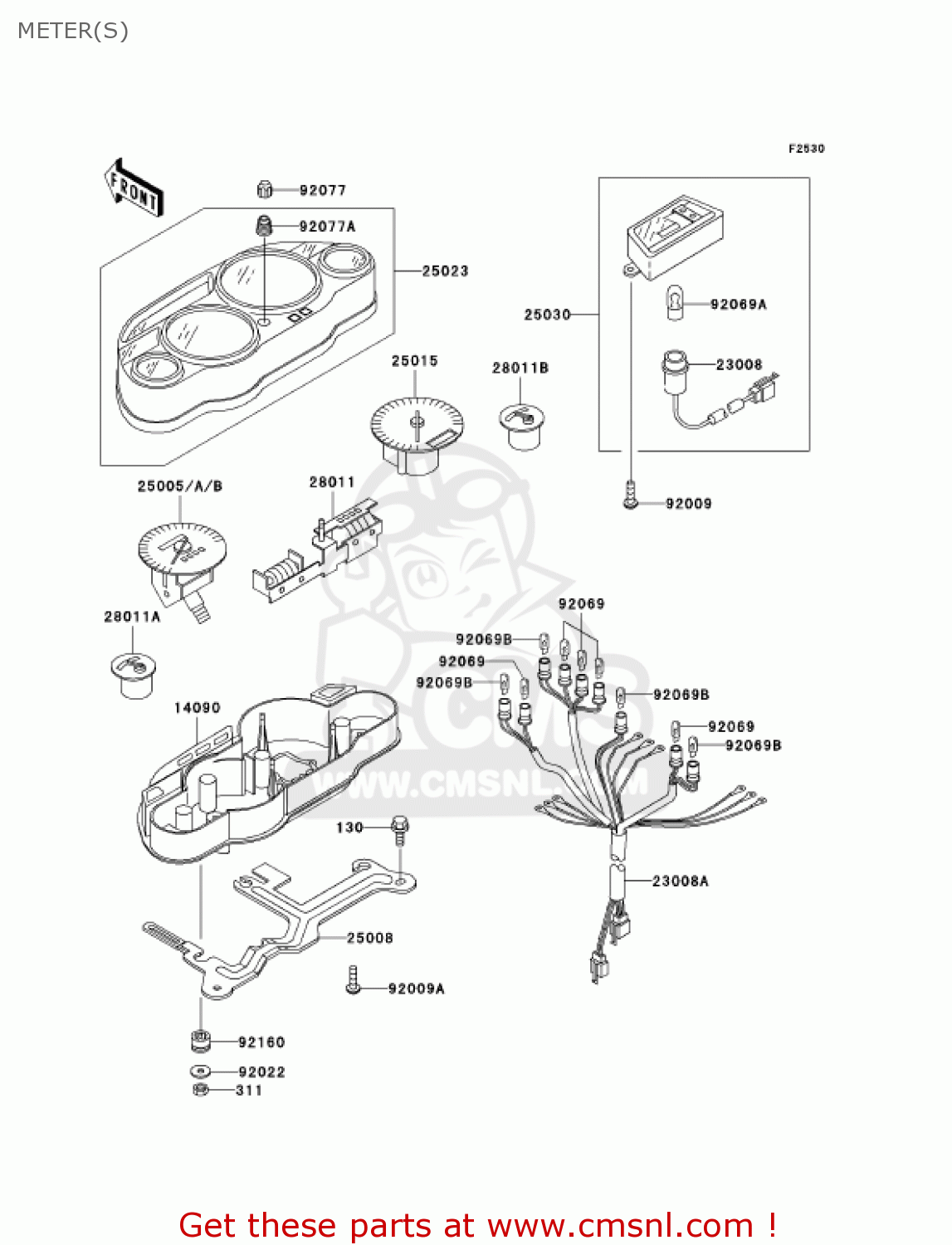

Meter(s) diagram ZG1000A19 CONCOURS 2004 USA CALIFORNIA CANADA

METER(S) ZG1000A19 CONCOURS 2004 USA CALIFORNIA CANADA
METER(S) ZG1000A19 CONCOURS 2004 USA CALIFORNIA CANADA
METER(S) ZG1000A19 CONCOURS 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
14090
140901287
ref: 14090
COVER,METER HOUSING
€ 123.50
23008
230081529
ref: 23008
SOCKET-ASSY,DEGITAL C
€ 22.50
23008A
230081534
ref: 23008A
SOCKET-ASSY,METER
€ 115.00
25005A
250051559
ref: 25005A
[CA,US
SPEEDOMETER,MPH
€ 251.50
25005B
250051705
ref: 25005B
[CN]
SPEEDOMETER,KPH
€ 329.00
25008
250081199
ref: 25008
BRACKET-METER
250081199
€ 62.50
25015
250151329
ref: 25015
TACHOMETER,X1000R/MIN
€ 305.50
25023
250231201
ref: 25023
COVER-METER CASE,UPP
€ 104.50
25030
250301002
ref: 25030
CLOCK,DEGITAL
€ 562.50
28011
280111130
ref: 28011
METER,TRIP
€ 91.50
28011A
280111145
ref: 28011A
METER,FUEL
€ 86.50
28011B
280111146
ref: 28011B
METER,TEMP
€ 95.00
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
920091163
€ 2.50
92009A
920091503
ref: 92009A
SCREW,TAPPING,4X14
920091503
€ 2.50
92022
920221369
ref: 92022
WASHER,6.2X18X1.2
€ 0.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92069A
920691020
ref: 92069A
BULB,12C3W T-7
920691020
€ 3.00
92069B
920691059
ref: 92069B
BULB,12V 1.7W
920691059
€ 2.50
92077
920771094
ref: 92077
KNOB,TRIP RESET
920771094
€ 5.00
92077A
920771112
ref: 92077A
KNOB,TRIP RESET
920771112
€ 4.00
92160
921601461
ref: 92160
DAMPER
921601461
€ 5.00
