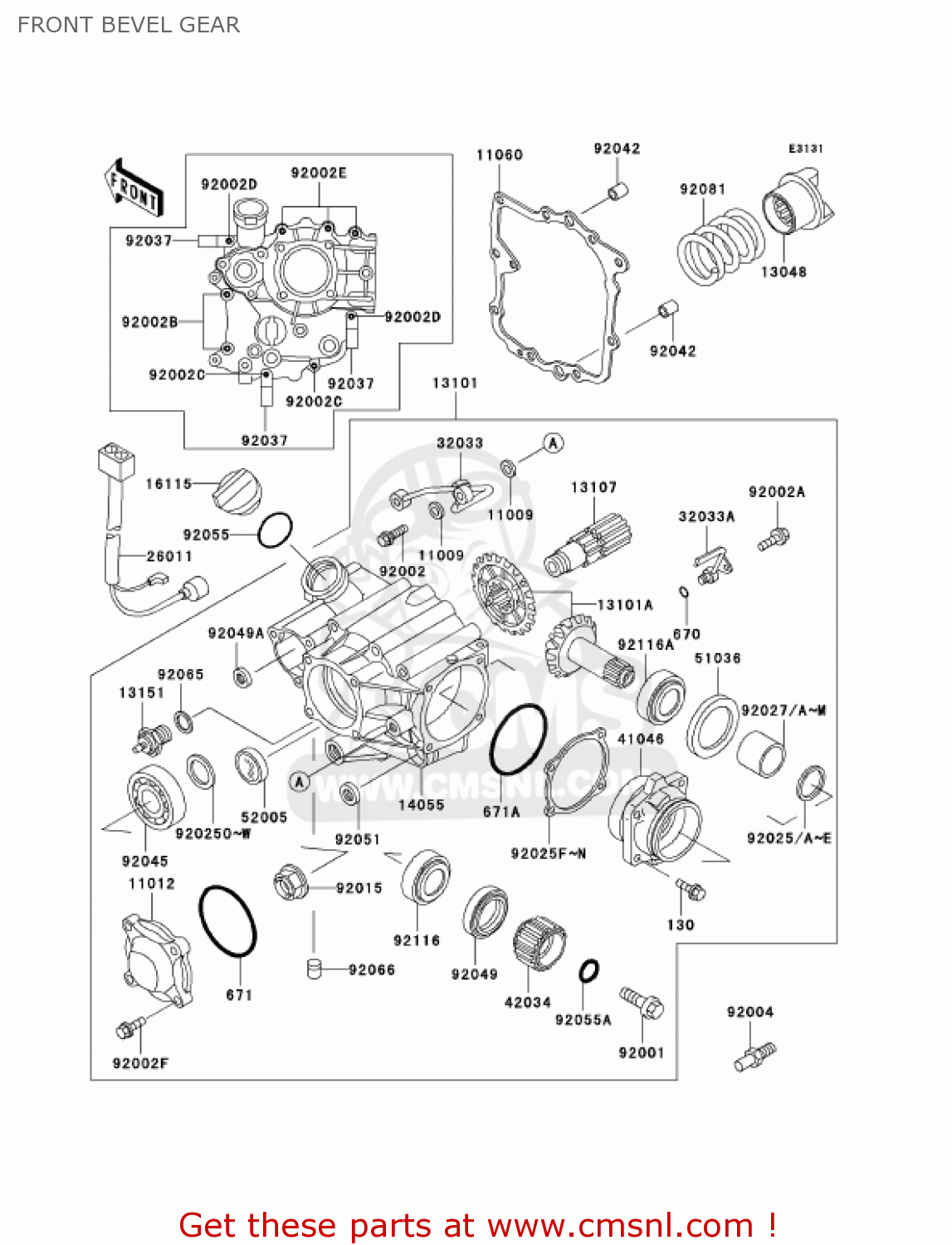

FRONT BEVEL GEAR

ref

part #

description

quantity

11009

110091344
ref: 11009

GASKET,OIL PIPE,8.2X1 (NAS)

€ 1.50

11012

110121884
ref: 11012

CAP,BEARING

€ 46.00

11060

110601404
ref: 11060

GASKET,BEVEL GEAR CAS (NAS)

€ 24.00

13048

130481069
ref: 13048

CAM-DAMPER

€ 87.00

13101

131011218
ref: 13101

GEAR-ASSY,FRONT BEVEL

€ 2,472.00

13101A

131015062
ref: 13101A

GEAR-ASSY,FRONT BEVEL

€ 883.50

13107

131071190
ref: 13107

SHAFT,BEVEL GEAR,FR

€ 202.50

13151

131511080
ref: 13151

SWITCH-COMP,NEUTRAL

€ 9.00

14055

140551065
ref: 14055

CASE-GEAR,BEVEL,FR

€ 812.00

16115

161151009
ref: 16115

CAP-OIL FILLER

€ 10.00

26011

260111351
ref: 26011

WIRE-LEAD

€ 19.50

32033

320331706
ref: 32033

PIPE,OIL

€ 49.00

32033A

320331707
ref: 32033A

PIPE,OIL

€ 20.50

41046

410461067
ref: 41046

HOUSING-BEARING

€ 178.50

42034

420341091
ref: 42034

COUPLING,FR DRIVEN

€ 96.00

51036

510361002
ref: 51036

CAP

€ 3.50

52005

520051057
ref: 52005

GAUGE,OIL LEVEL

€ 17.50

92001

920011169
ref: 92001

BOLT,12X42

€ 15.50

92002

920021429
ref: 92002

BOLT,8X20

€ 7.00

92002A

920021449
ref: 92002A

BOLT,6X10

€ 2.50

92002B

920021582
ref: 92002B

BOLT,6X25

€ 3.00

92002C

920021583
ref: 92002C

BOLT,6X50

€ 2.00

92002D

920021584
ref: 92002D

BOLT,6X60

€ 3.50

92002E

920021585
ref: 92002E

BOLT,6X105

€ 2.50

92002F

920021612
ref: 92002F

BOLT

€ 3.00

92004

920041109
ref: 92004

STUD

€ 12.50

92015

920151543
ref: 92015

NUT

€ 12.00

92025

920251072
ref: 92025

SHIM,1.70T

€ 6.50

92025A

920251073
ref: 92025A

SHIM,1.72T

€ 6.50

92025B

920251074
ref: 92025B

SHIM,1.74T

€ 6.50

92025C

920251075
ref: 92025C

SHIM,1.76T

€ 6.50

92025D

920251076
ref: 92025D

SHIM,1.78T

€ 6.50

92025E

920251077
ref: 92025E

SHIM,1.80T

€ 6.50

92025F

920251606
ref: 92025F

SHIM,T=0.10

€ 5.50

92025G

920251607
ref: 92025G

SHIM,T=0.15

€ 6.00

92025H

920251608
ref: 92025H

SHIM,T=0.50

€ 6.00

92025I

920251609
ref: 92025I

SHIM,T=0.60

€ 7.00

92025J

920251610
ref: 92025J

SHIM,T=0.70

€ 7.00

92025K

920251611
ref: 92025K

SHIM,T=0.80

€ 6.50

92025L

920251612
ref: 92025L

SHIM,T=0.90

€ 7.00

130

130S0625
ref: 130

BOLT-FLANGED,6X25,BLA

€ 2.00

670

670B1506
ref: 670

O RING,6MM

€ 1.00

92025M

920251613
ref: 92025M

SHIM,T=1.00

€ 7.00

92025N

920251614
ref: 92025N

SHIM,T=1.20

€ 6.00

92025O

920251688
ref: 92025O

SHIM,25.3X36X0.15

€ 5.50

92025P

920251689
ref: 92025P

SHIM,25.3X36X0.50

€ 5.50

92025Q

920251690
ref: 92025Q

SHIM,25.3X36X0.60

€ 5.50

92025R

920251691
ref: 92025R

SHIM,25.3X36X0.70

€ 5.50

92025S

920251692
ref: 92025S

SHIM,25.3X36X0.80

€ 5.50

92025T

920251693
ref: 92025T

SHIM,25.3X36X0.90

€ 5.50

92025U

920251694
ref: 92025U

SHIM,25.3X36X1.0

€ 5.50

92025V

920251695
ref: 92025V

SHIM,25.3X36X1.1

€ 5.50

92025W

920251696
ref: 92025W

SHIM,25.3X36X1.2

€ 5.50

92027

920271152
ref: 92027

COLLAR,25.2X29.8X22.8

€ 12.00

92027A

920271153
ref: 92027A

COLLAR,25.2X29.8X22.9

€ 12.00

92027B

920271154
ref: 92027B

COLLAR,25.2X29.8X23

€ 12.00

92027C

920271155
ref: 92027C

COLLAR,25.2X29.8X23.1

€ 12.50

92027D

920271156
ref: 92027D

COLLAR,25.2X29.8X23.2

€ 13.00

92027E

920271157
ref: 92027E

COLLAR,25.2X29.8X23.3

€ 12.00

92027F

920271158
ref: 92027F

COLLAR,25.2X29.8X23.4

€ 12.00

92027G

920271159
ref: 92027G

COLLAR,25.2X29.8X23.5

€ 12.00

92027H

920271160
ref: 92027H

COLLAR,25.2X29.8X23.6

€ 12.00

92027I

920271161
ref: 92027I

COLLAR,25.2X29.8X23.7

€ 12.00

92027J

920271162
ref: 92027J

COLLAR,25.2X29.8X23.8

€ 12.00

92027K

920271163
ref: 92027K

COLLAR,25.2X29.8X23.9

€ 12.00

92027L

920271164
ref: 92027L

COLLAR,25.2X29.8X24

€ 12.00

92027M

920271165
ref: 92027M

COLLAR,25.2X29.8X24.1

€ 12.00

92037

920371539
ref: 92037

CLAMP,L=45

€ 3.00

92042

92042007
ref: 92042

PIN-DOWEL

€ 4.00

92045

920451160
ref: 92045

BEARING-BALL

€ 124.50

92049

920491038
ref: 92049

OIL SEAL,TC35527

€ 12.50

92049A

920491566
ref: 92049A

SEAL-OIL

€ 4.50

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92055A

920551044
ref: 92055A

RING-O,ID=18.64

€ 3.00

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50

92066

920661012
ref: 92066

PLUG,OIL LINE,7.2X8

€ 4.00

92081

920811859
ref: 92081

SPRING,CAM DAMPER

€ 40.00

92116

921161003
ref: 92116

BEARING,R,4T-30205

€ 41.00

92116A

921161006
ref: 92116A

BEARING-ROLLER,4T3030

€ 52.00

671

671B2565
ref: 671

O RING,65MM

€ 6.00

671A

671B2570
ref: 671A

O RING,70MM

€ 4.50
