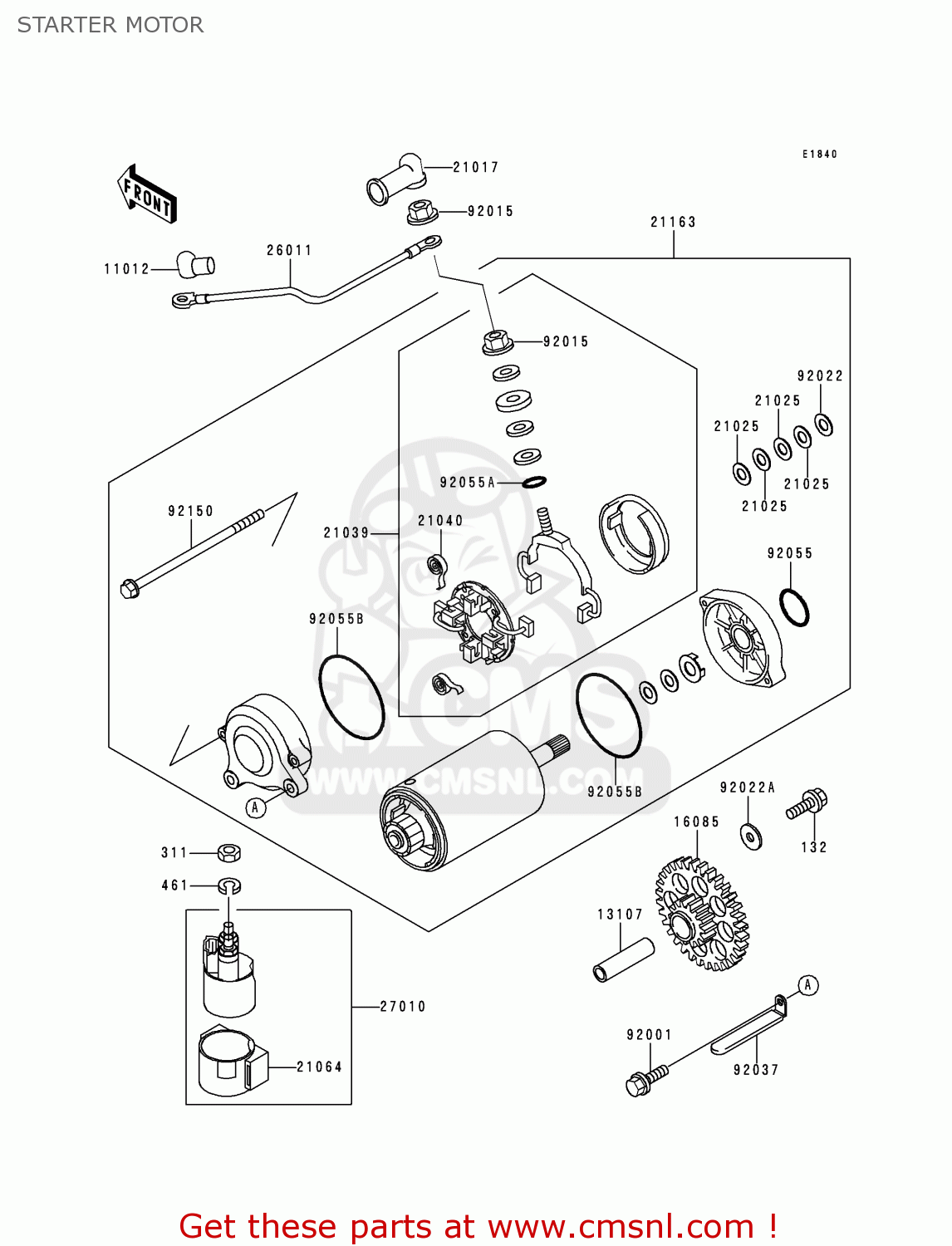

STARTER MOTOR

ref

part #

description

quantity

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

11012

110121354
ref: 11012

CAP,TERMINAL

€ 7.00

13107

131071106
ref: 13107

SHAFT,IDLE GEAR

€ 11.50

16085

160851104
ref: 16085

GEAR,IDLE

€ 90.50

21017

21017017
ref: 21017

GROMMET-CORD

€ 6.50

21025

21025011
ref: 21025

WASHER, THRUST, 0.2T

€ 4.00

21039

210391060
ref: 21039

BRUSH,CARBON

€ 74.00

21040

210401055
ref: 21040

SPRING-BRUSH

€ 5.50

21064

21064002
ref: 21064

DAMPER,MAGNETIC SWITC

€ 13.50

21163

211631161
ref: 21163

STARTER-ELECTRIC

€ 574.50

26011

260111316
ref: 26011

WIRE-LEAD,MOTOR

€ 48.00

27010

270101235
ref: 27010

SWITCH,MAGNETIC

€ 102.50

92001

920011947
ref: 92001

BOLT,6X20

€ 3.00

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221132
ref: 92022

WASHER,9.1X18X0.8

€ 4.00

92022A

920221517
ref: 92022A

WASHER,6X19.5X2

€ 1.50

92037

920371679
ref: 92037

CLAMP

€ 3.50

92055

920551276
ref: 92055

RING-O

€ 6.50

92055A

920551370
ref: 92055A

RING-O,4.5X2.0

€ 3.00

92055B

920551381
ref: 92055B

RING-O,STARTER MOTOR

€ 6.50

92150

921501143
ref: 92150

BOLT,MOTOR

€ 6.50
