FRAME

ZG1000A15 CONCOURS 2000 USA CALIFORNIA CANADA

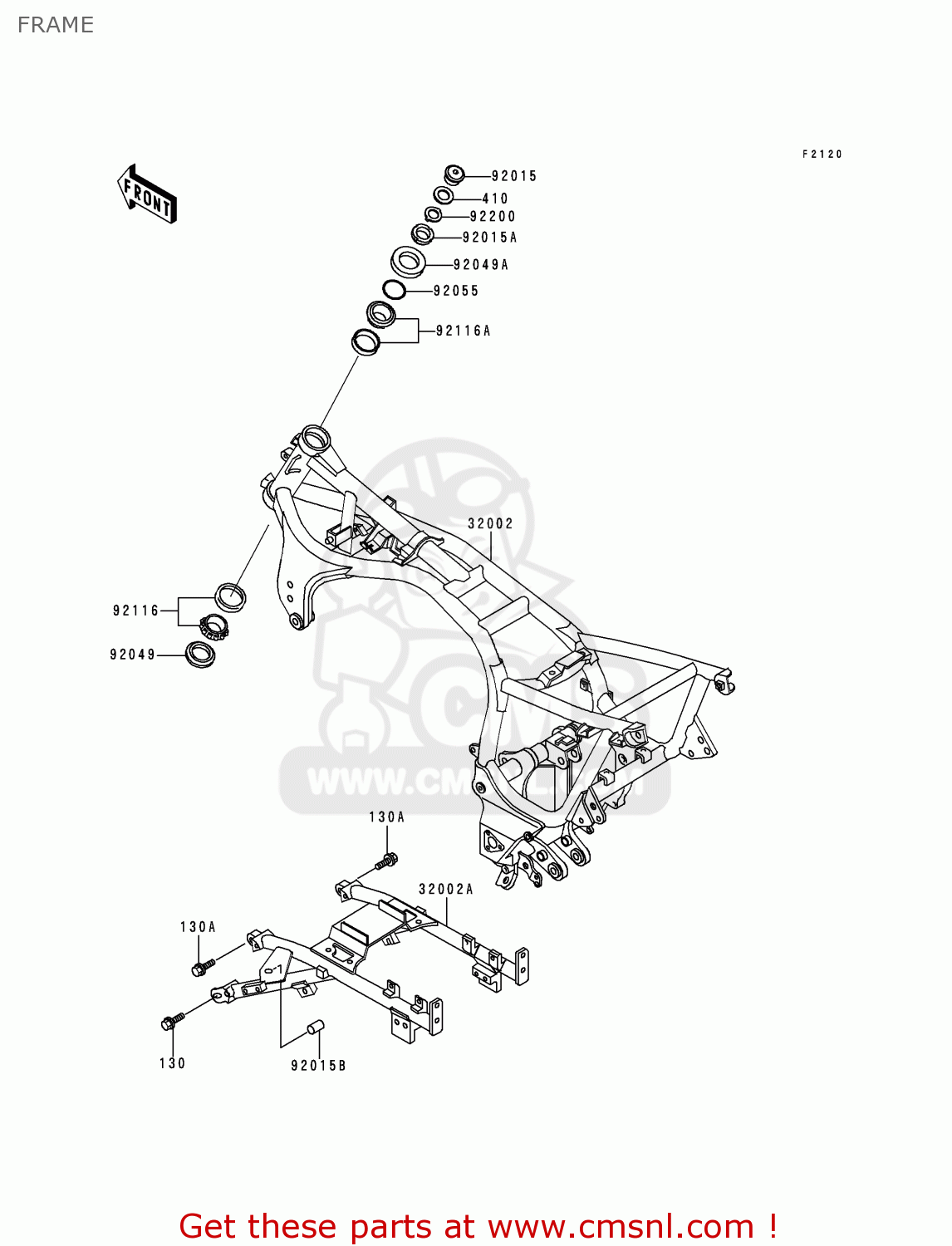

Frame diagram ZG1000A15 CONCOURS 2000 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130G1020
ref: 130

BOLT-FLANGED,10X20

€ 1.50

130A

130G1030
ref: 130A

BOLT-FLANGED,10X30

€ 3.00

410

410F1800
ref: 410

W-PLAIN-S

€ 3.00

32002

320021878
ref: 32002

FRAME-COMP,FR

€ 1,308.00

32002A

320021879
ref: 32002A

FRAME-COMP,AL,RR

€ 670.00

92015

920151404
ref: 92015

NUT,18MM

€ 15.50

92015A

920151546
ref: 92015A

NUT,25MM,T=12

€ 14.50

92015B

920151796
ref: 92015B

NUT,CRIMP 6MM

€ 3.00

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491214
ref: 92049A

SEAL-OIL,STEERING STE

€ 11.00

92055

920551459
ref: 92055

RING-O,ID=24.5

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161056
ref: 92116A

BEARING-ROLLER

€ 48.50

92200

922001357
ref: 92200

WASHER,CLAW,18.5X30X2

€ 4.50
