TAILLIGHT(S)

ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA

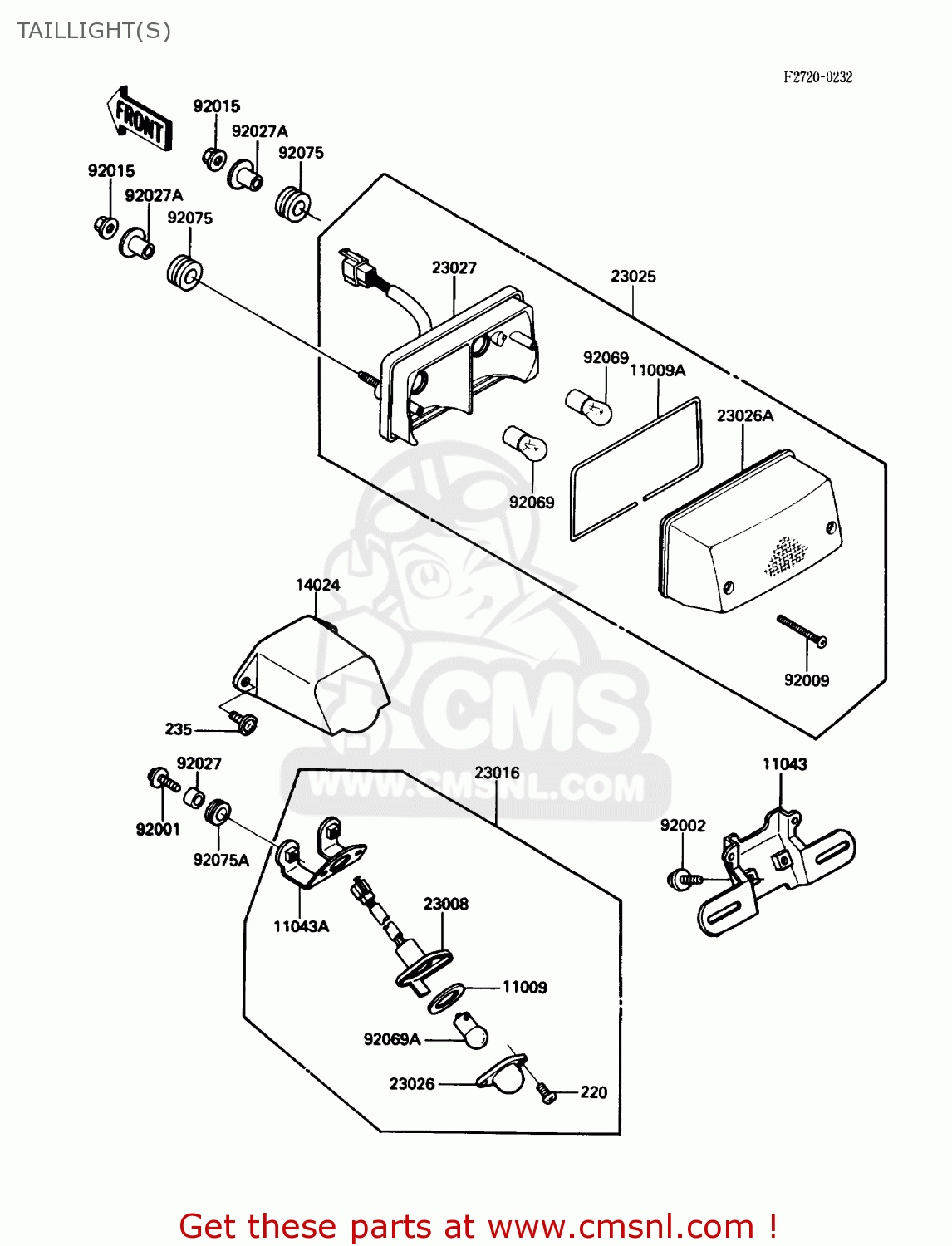

Taillight(s) diagram ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA

TAILLIGHT(S) ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA
TAILLIGHT(S) ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA
TAILLIGHT(S) ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220B0410
ref: 220
SCREW-PAN-CROS
220B0410
€ 2.00
235
235C0616
ref: 235
SCREW-PAN-WP-CROS
235C0616
€ 2.50
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
110091372
€ 3.00
11009A
110091581
ref: 11009A
GASKET,TAIL LAMP (NAS)
€ 4.00
11043
110431440
ref: 11043
BRACKET,LICENSE PLATE
€ 16.50
11043A
110431497
ref: 11043A
BRACKET,LICENSE PLATE
110431497
€ 10.00
14024
140251821
ref: 14024
COVER,LICENSE PLATE L
140251821
€ 13.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
230081221
€ 7.50
23016
230161053
ref: 23016
LAMP-ASSY,LICENSE PLA
230161053
€ 54.50
23025
230251139
ref: 23025
TAIL LAMP
€ 140.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
230261054
€ 7.00
23026A
230261079
ref: 23026A
LENS,TAIL LAMP
230261079
€ 28.00
23027
230271069
ref: 23027
BODY-COMP-TAIL LAMP
€ 65.00
92001
920011773
ref: 92001
BOLT,6X20
920011773
€ 2.50
92002
920021351
ref: 92002
BOLT
920021351
€ 2.50
92009
920091297
ref: 92009
SCREW,TAPPING,4X20
920091297
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92027
92027120
ref: 92027
COLLAR
92027120
€ 3.00
92027A
92027251
ref: 92027A
COLLAR,L=13.1
92027251
€ 1.00
92069
92069059
ref: 92069
BULB,12V 32/3CP
92069059
€ 5.50
92069A
920691012
ref: 92069A
BULB,12V 8W 4CP
920691012
€ 4.50
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
92075A
92075222
ref: 92075A
DAMPER RUBBER,CASE
92075222
€ 4.50
