Genuine ZG Kawasaki Parts delivered quickly!


COWLING(A1)

ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA

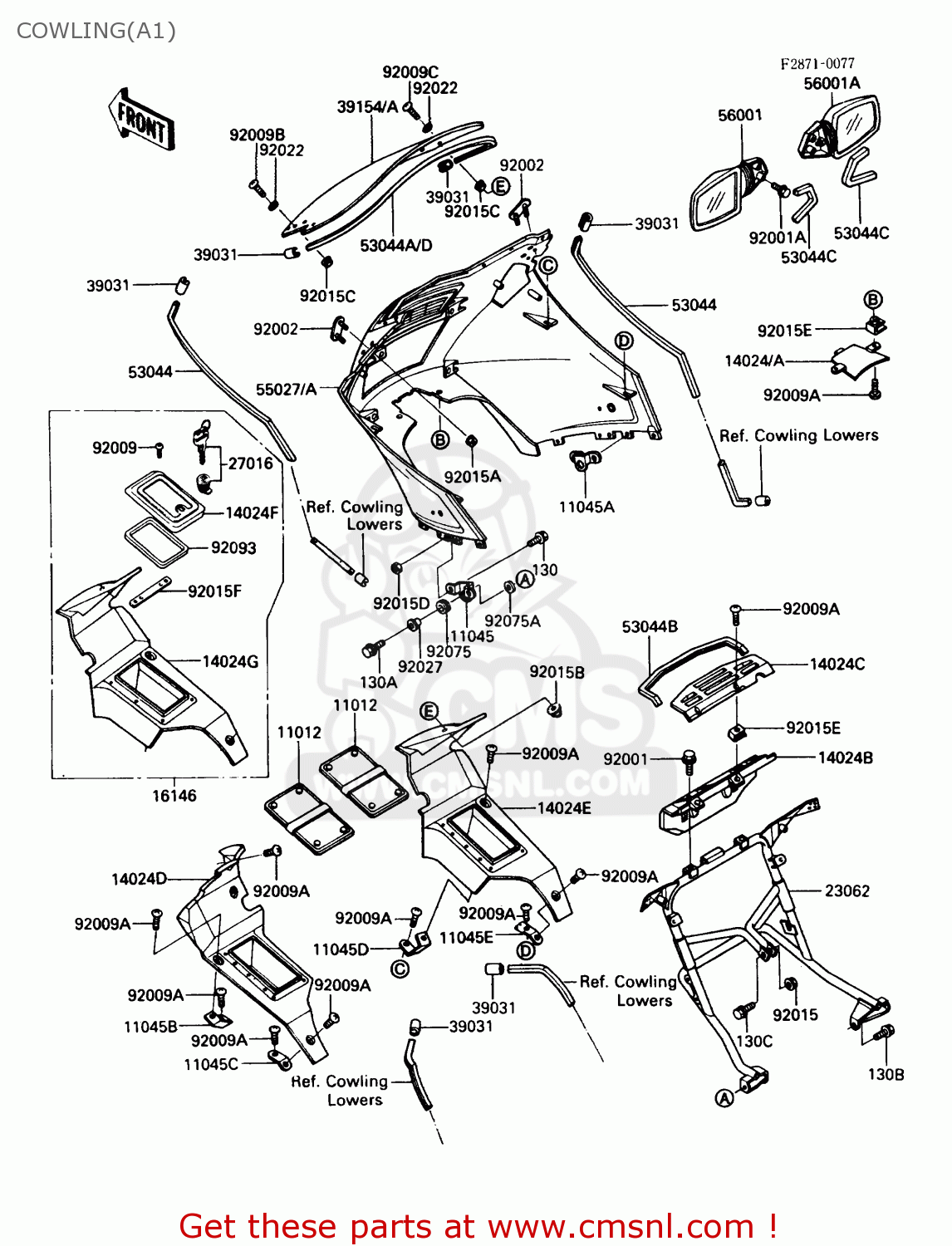

Cowling(a1) diagram ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA

COWLING(A1) ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA
COWLING(A1) ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA
COWLING(A1) ZG1000A1 CONCOURS 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121546
ref: 11012
CAP,INNER COWLING
110121546
€ 28.50
11045
110441907
ref: 11045
BRACKET,UPPER COWLING
110441907
€ 7.00
11045A
110441908
ref: 11045A
BRACKET,UPPER COWLING
110441908
€ 7.00
11045B
110441909
ref: 11045B
BRACKET,INNER COWLING
€ 4.50
11045C
110441910
ref: 11045C
BRACKET,INNER COWLING
110441910
€ 4.50
11045D
110441922
ref: 11045D
BRACKET,INNER COWLING
110441922
€ 4.50
11045E
110451612
ref: 11045E
BRACKET,INNER COWLING
110451612
€ 4.00
14024
140241252H3
ref: 14024
CN
COVER,UPPER COWLING,L
€ 39.00
14024A
140241252T8
ref: 14024A
COVER,UPPER COWLING,L
€ 29.50
14024B
140241255
ref: 14024B
COVER,HORN,RR
140241255
€ 52.50
14024C
140241256
ref: 14024C
COVER,INNER COWLING,C
140241256
€ 52.50
14024D
140241422
ref: 14024D
COVER,INNER COWLING,U
140241422
€ 49.00
14024E
140241423
ref: 14024E
COVER,INNER COWLING,U
140241423
€ 77.00
14024F
140241472
ref: 14024F
COVER,INNER COWLING C
140241472
€ 25.50
14024G
140241473
ref: 14024G
COVER,INNER COWLING,U
140241473
€ 77.50
16146
161461083
ref: 16146
COVER-ASSY,INNER COWL
€ 677.50
23062
230621063
ref: 23062
BRACKET-COMP,UPPER CO
€ 241.00
27016
270161073
ref: 27016
LOCK-ASSY,FAIRING POC
€ 48.00
39031
390311055
ref: 39031
CAP-END,TRIM
390311055
€ 3.50
39154
391541062
ref: 39154
WINDSHIELD,SHORT TYPE
€ 434.00
39154A
391541069
ref: 39154A
WINDSHIELD,LONG TYPE
391541069
€ 350.50
53044
530441157
ref: 53044
TRIM,COWLING
530441157
€ 18.50
53044A
530441164
ref: 53044A
TRIM,WINDSHIELD,SHORT
€ 16.50
53044B
530441172
ref: 53044B
TRIM,INNER COWLING
530441172
€ 8.00
53044C
530441173
ref: 53044C
TRIM,MIRROR
530441173
€ 5.50
53044D
530441192
ref: 53044D
TRIM,WINDSHIELD,LONG
530441192
€ 17.50
55027
550271092H3
ref: 55027
CN
COWLING ASSEMBLY,UPPER,OUTER,CANDY WINE RED
€ 610.50
55027A
550271092T8
ref: 55027A
COWLING-ASSY,UPP,OUTE
€ 782.00
56001
560011333
ref: 56001
MIRROR-ASSY,LH
560011333
€ 156.50
56001A
560011334
ref: 56001A
MIRROR-ASSY,RH
560011334
€ 156.50
92001
920011825
ref: 92001
BOLT
€ 2.50
92001A
920011847
ref: 92001A
BOLT,6X14,BLACK
920011847
€ 2.50
92002
920021800
ref: 92002
BOLT,"U"
920021800
€ 7.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130C0625
ref: 130A
BOLT-FLANGED,FLANGED,
130C0625
€ 2.00
130B
130J0812
ref: 130B
BOLT-FLANGED
130J0812
€ 0.50
130C
130J0830
ref: 130C
BOLT-FLANGED,8X30
130J0830
€ 2.50
92009
920091108
ref: 92009
SCREW,4X16
920091108
€ 2.00
92009A
920091308
ref: 92009A
SCREW,6X14
€ 2.00
92009B
920091383
ref: 92009B
SCREW,5X14
920091383
€ 2.50
92009C
920091453
ref: 92009C
SCREW,5X20
920091453
€ 2.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151237
ref: 92015A
NUT,FLANGED,6MM,BLACK
920151237
€ 3.50
92015B
920151263
ref: 92015B
NUT,LOCK 5MM
920151263
€ 4.50
92015C
920151343
ref: 92015C
NUT,5MM,COWLING
920151343
€ 3.00
92015D
920151394
ref: 92015D
NUT,STAY,6MM
920151394
€ 2.50
92015E
920151602
ref: 92015E
NUT,6MM
920151602
€ 4.50
92015F
920151661
ref: 92015F
NUT,PLATE,4MM
920151661
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92075
92075174
ref: 92075
DAMPER,MALE
92075174
€ 3.00
92075A
92075175
ref: 92075A
DAMPER,FEMALE
92075175
€ 2.50
92093
920931239
ref: 92093
SEAL,FAIRING POCKET
920931239
€ 4.00
