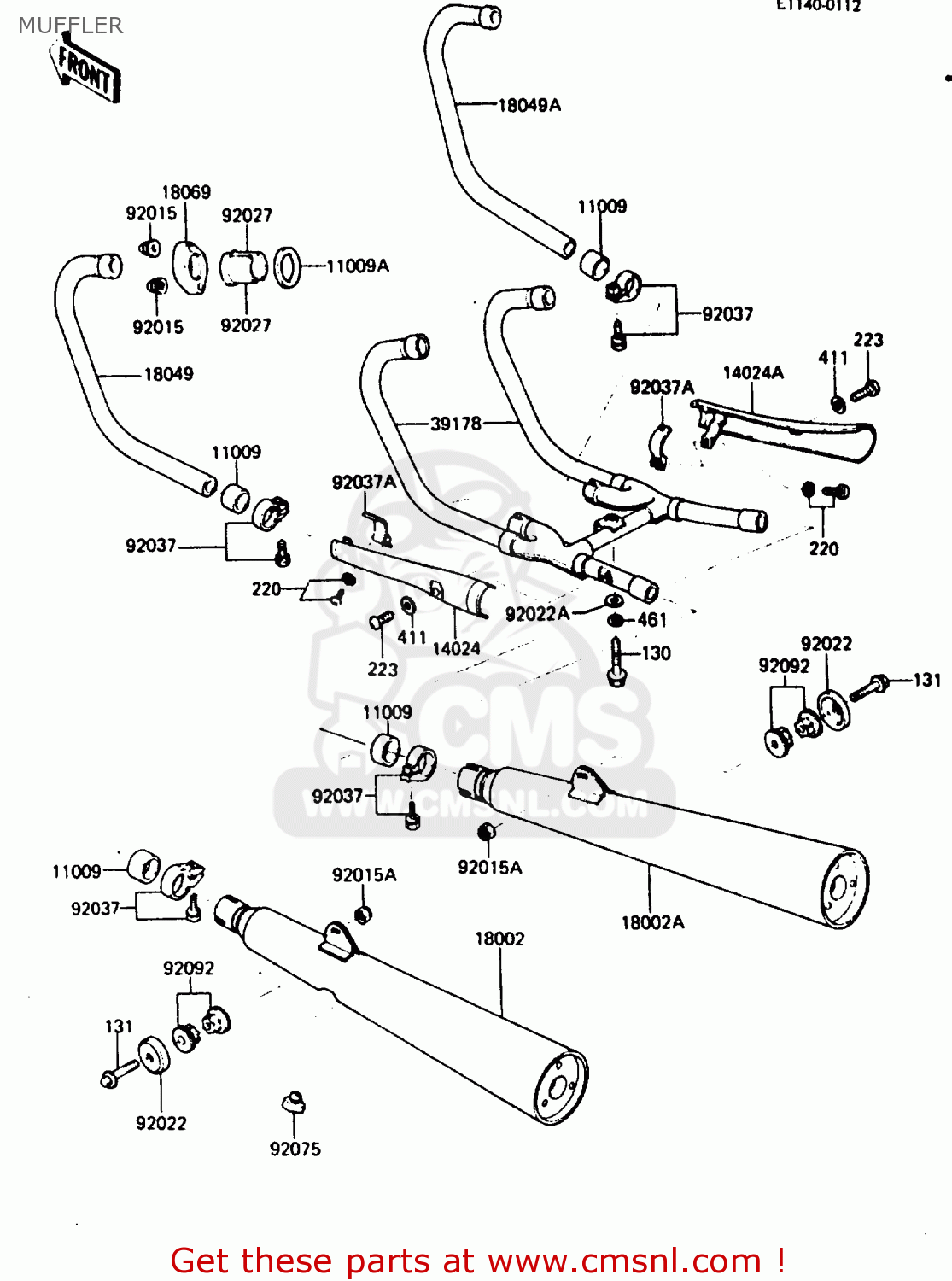

MUFFLER

ref

part #

description

quantity

11009

110091634
ref: 11009

GASKET,EXHAUST PIPE C (MCA)

€ 15.00

11009A

18067004
ref: 11009A

GASKET-EXHAUST PIPE (MCA)

€ 7.50

14024

140251853
ref: 14024

COVER,MUFFLER,LH

€ 61.00

14024A

140251854
ref: 14024A

COVER,MUFFLER,RH

€ 58.00

18002

180021514
ref: 18002

BODY-COMP-MUFFLER,LH

€ 309.00

18002A

180021515
ref: 18002A

BODY-COMP-MUFFLER,RH

€ 309.00

13049

180491162
ref: 13049

PIPE-EXHAUST,#2,CR PL

€ 102.00

18049A

180491163
ref: 18049A

PIPE-EXHAUST,#3,CR PL

€ 109.50

18069

180691030
ref: 18069

HOLDER-EXHAUST PIPE

€ 18.00

39178

391781057
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 314.00

92015

920151398
ref: 92015

NUT,8MM

€ 3.00

92015A

92019021
ref: 92015A

NUT,LOCK,10M/M

€ 2.00

92022

920221313
ref: 92022

WASHER,CUP TYPE,BLACK

€ 8.00

92022A

92022176
ref: 92022A

WASHER,10X22X3.2

€ 3.00

92027

920271142
ref: 92027

COLLAR,L=14.5

€ 3.00

92037

920371349
ref: 92037

CLAMP,42MM

€ 8.50

92037A

920371373
ref: 92037A

CLAMP,MUFFLER COVER,C

€ 5.50

92075

920751002
ref: 92075

DAMPER RUBBER,MAIN ST

€ 4.00

92092

920921013
ref: 92092

BUSHING-RUBBER,MUFFLE

€ 11.50

130

130Y0850
ref: 130

BOLT-FLANGED

€ 3.00

131

131J1055
ref: 131

BOLT-FLANGED,10X55,BL

€ 4.00

220

220E0608
ref: 220

SCREW-PAN HEAD,6X8

€ 2.00

223

223X0616
ref: 223

SCREW-PAN-WS-CROS

€ 2.00

411

411D0600
ref: 411

WASHER-PLAIN,6MM

€ 1.50

461

461L0800
ref: 461

WASHER-SPRING

€ 0.50

all assemblies
