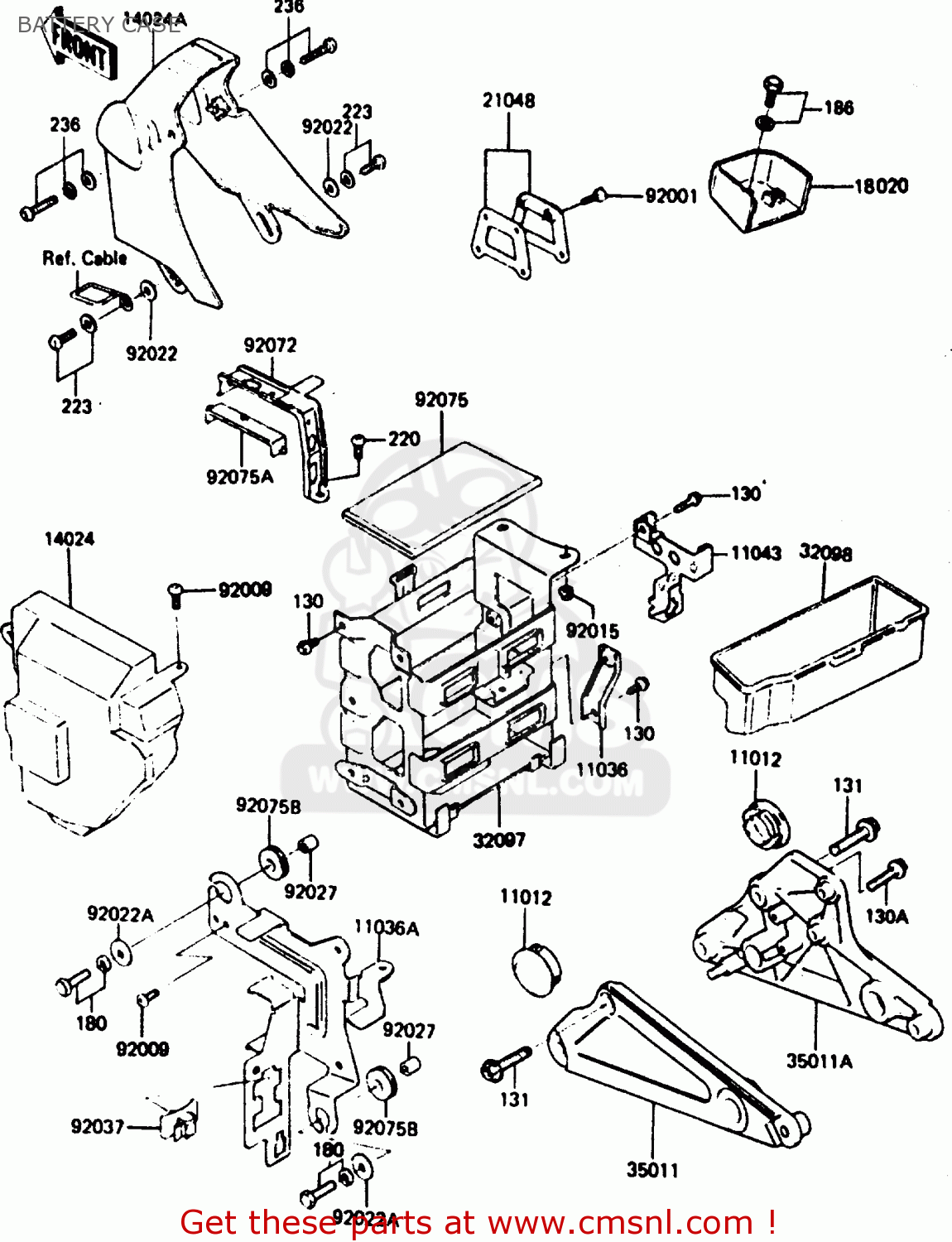

BATTERY CASE

ref

part #

description

quantity

11012

110121397
ref: 11012

CAP,SWING ARM SHAFT

€ 4.50

11036

110361345
ref: 11036

BRACKET-A,RESERVOIR

€ 5.00

11036A

110361497
ref: 11036A

BRACKET-A,ELECTRO BAS

€ 14.00

11043

110431610
ref: 11043

BRACKET,IGNITER

€ 13.50

14024

140251511
ref: 14024

COVER,ELECTRO BASE

€ 13.50

14024A

140251579
ref: 14024A

COVER,HEAD GUSSET

€ 14.50

18020

180201060
ref: 18020

BAFFLE,CARBURETOR AIR

€ 10.00

21048

210481001
ref: 21048

PLATE-COIL

€ 14.00

32097

320971061
ref: 32097

CASE-BATTERY

€ 69.50

32098

320981021
ref: 32098

CASE-TOOL

€ 19.50

35011

350111132
ref: 35011

STAY,MUFFLER,LH

€ 120.00

35011A

350111133
ref: 35011A

STAY,MUFFLER,RH

€ 120.00

92001

92001157
ref: 92001

BOLT,DYNAMO FITTING

€ 9.50

92009

920091271
ref: 92009

SCREW,6X12

€ 2.00

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

920221346
ref: 92022

WASHER,6.5X20X1.6,BLA

€ 0.50

92022A

92022228
ref: 92022A

WASHER-PLAIN,7MM

€ 2.50

92027

92027291
ref: 92027

COLLAR,6.5X8.5X14

€ 2.50

92037

920371340
ref: 92037

CLAMP,LEAD WIRE

€ 7.50

92072

920721076
ref: 92072

BAND,BATTERY

€ 10.00

92075

920751076
ref: 92075

DAMPER,BATTERY BASE

€ 6.00

92075A

920751371
ref: 92075A

DAMPER,BATTERY BAND

€ 7.50

92075B

92075317
ref: 92075B

DAMPER

€ 2.50

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130J1030
ref: 130A

BOLT-FLANGED,10X30

€ 3.50

131

131J0835
ref: 131

BOLT-FLANGED,8X35,BLA

€ 2.50

180

180B0625
ref: 180

BOLT-UPSET-WS

€ 2.50

184

186B0610
ref: 184

BOLT,UPSET

€ 0.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

223

223C0616
ref: 223

SCREW-PAN-WS

€ 2.50

236

236C0625
ref: 236

SCREW-PAN-WS

€ 2.00
