DRIVE SHAFT/FINAL GEAR
Z550G8 GT550 1993 UNITED KINGDOM

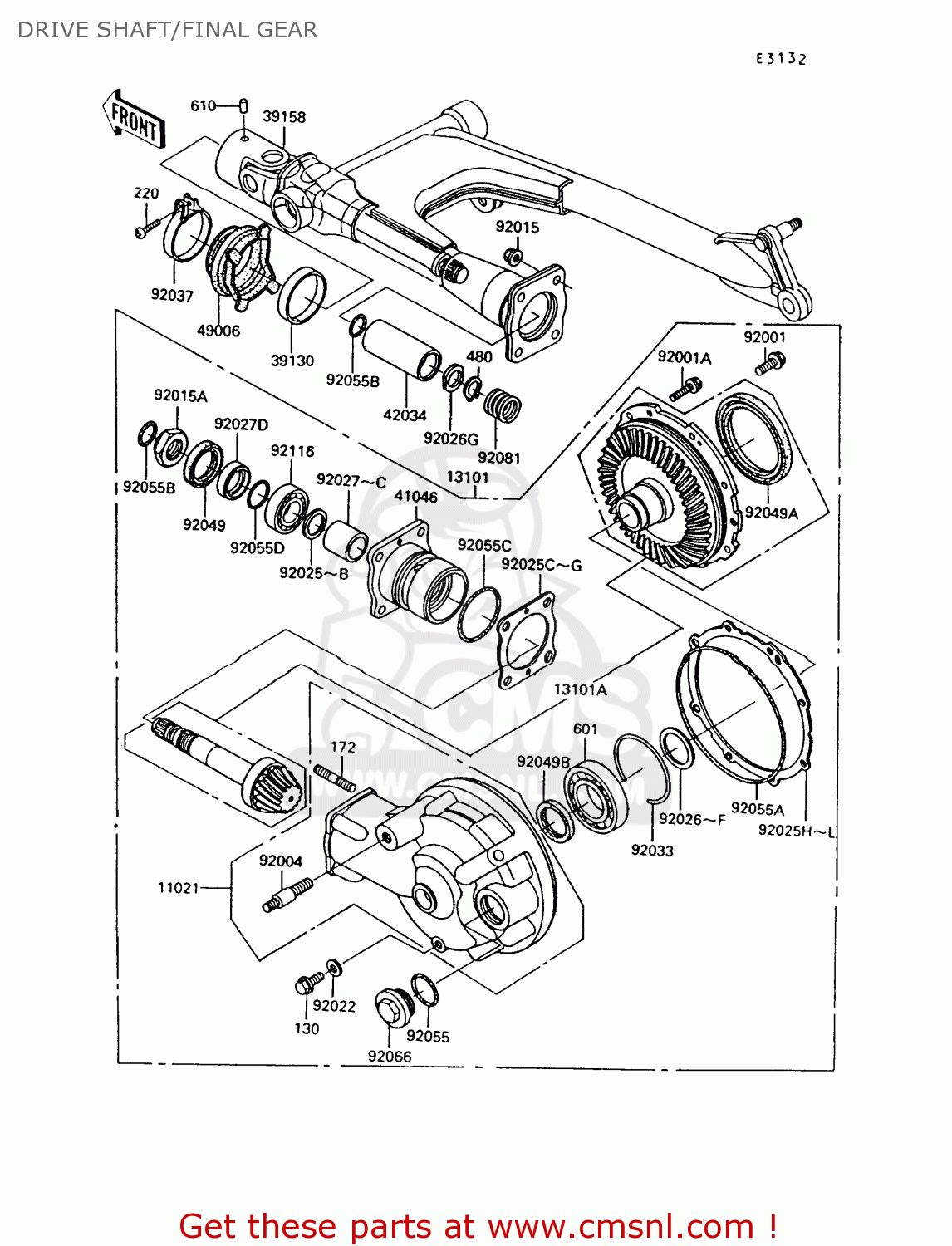

Drive shaft/final gear diagram Z550G8 GT550 1993 UNITED KINGDOM
DRIVE SHAFT/FINAL GEAR Z550G8 GT550 1993 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
11021
11021101821
ref: 11021
CASE-ASSY,FINAL GEAR
€ 850.00
13101
13101103121
ref: 13101
GEAR-ASSY,FINAL
€ 1,891.00
13101A
131015038
ref: 13101A
GEAR-ASSY,FINAL BEVEL
€ 1,463.00
39130
391301002
ref: 39130
SPRING,LEAF
€ 3.00
39158
391581007
ref: 39158
SHAFT-ASSY-DRIVE
€ 332.00
41046
410461019
ref: 41046
HOUSING-BEARING
€ 127.00
42034
420341035
ref: 42034
COUPLING,DRIVE SHAFT,
€ 113.50
49006
490061059
ref: 49006
BOOT,PROPELLER SHAFT
€ 22.50
92001
920011095
ref: 92001
BOLT,8X28
€ 4.50
92001A
920011778
ref: 92001A
BOLT,FLANGED,10X23
€ 3.50
92004
920041047
ref: 92004
STUD,RR SHOCKABSORBER
€ 10.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151241
ref: 92015A
NUT,25MM
€ 11.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
€ 2.50
92025
920251074
ref: 92025
SHIM,1.74T
€ 6.50
92025A
920251075
ref: 92025A
SHIM,1.76T
€ 6.50
92025B
920251076
ref: 92025B
SHIM,1.78T
€ 6.50
92025C
920251312
ref: 92025C
SHIM,T=0.15
€ 7.00
92025D
920251316
ref: 92025D
SHIM,T=0.8
€ 7.00
92025E
920251317
ref: 92025E
SHIM,T=0.9
€ 6.50
92025F
920251318
ref: 92025F
SHIM,T=1.0
€ 6.50
92025G
920251319
ref: 92025G
SHIM,T=1.2
€ 6.00
92025H
920251369
ref: 92025H
SHIM,T=0.15
€ 14.50
92025I
920251370
ref: 92025I
SHIM,T=0.80
€ 11.00
92025J
920251371
ref: 92025J
SHIM,T=0.90
€ 14.50
92025K
920251372
ref: 92025K
SHIM,T=1.00
€ 14.50
92025L
920251373
ref: 92025L
SHIM,T=1.20
€ 14.50
92026
920261122
ref: 92026
SPACER,T=1.95
€ 7.00
92026A
920261123
ref: 92026A
SPACER,T=2.00
€ 9.00
92026B
920261124
ref: 92026B
SPACER,T=2.05
€ 9.00
92026C
920261125
ref: 92026C
SPACER,T=2.10
€ 7.00
92026D
920261126
ref: 92026D
SPACER,T=2.15
€ 6.50
92026E
920261127
ref: 92026E
SPACER,T=2.20
€ 7.00
92026F
920261128
ref: 92026F
SPACER,T=2.25
€ 7.00
92026G
920261129
ref: 92026G
SPACER,DRIVE SHAFT
€ 5.00
92027
920271536
ref: 92027
COLLAR,L=34.3
€ 36.50
92027A
920271537
ref: 92027A
COLLAR,L=34.4
€ 29.50
92027B
920271538
ref: 92027B
COLLAR,L=34.5
€ 35.50
92027C
920271539
ref: 92027C
COLLAR,L=34.6
€ 36.50
92027D
920271540
ref: 92027D
COLLAR,25X35X9
€ 12.00
130
130X0812
ref: 130
BOLT-FLANGED
€ 2.50
172
172G0830
ref: 172
STUD,8X30
€ 1.50
220
220B0430
ref: 220
SCREW-PAN-CROS
€ 0.50
480
480J1600
ref: 480
CIRCLIP-TYPE-C,16MM
€ 2.50
601
601A6007
ref: 601
BEARING-BALL,#6007
€ 29.50
610
610A0406
ref: 610
ROLLER,4X6
€ 2.50
92033
920331093
ref: 92033
RING-SNAP,70MM
€ 3.00
92037
920371112
ref: 92037
CLAMP,BOOT FITTING
€ 11.50
92049
920491025
ref: 92049
OIL SEAL,S-35477HS
€ 10.00
92049A
920491085
ref: 92049A
SEAL-OIL,SC759510
€ 21.00
92049B
920491155
ref: 92049B
SEAL-OIL,SC32435.5
€ 10.00
92055
920551005
ref: 92055
RING-O,35.8X3.0
€ 3.50
92055A
920551039
ref: 92055A
RING-O,ID=150.4
€ 9.50
92055B
920551044
ref: 92055B
RING-O,ID=18.64
€ 3.00
92055C
920551120
ref: 92055C
RING-0,55MM
€ 3.50
92055D
920551160
ref: 92055D
RING-0,24.7MM
€ 3.00
92066
92066100621
ref: 92066
PLUG,OIL FILLER CAP,F
€ 9.50
92081
920811717
ref: 92081
SPRING,DRIVE SHAFT
€ 4.50
92116
921161004
ref: 92116
BEARING-ROLLER,4T3200
€ 53.50
