BATTERY CASE
Z550G8 GT550 1993 UNITED KINGDOM

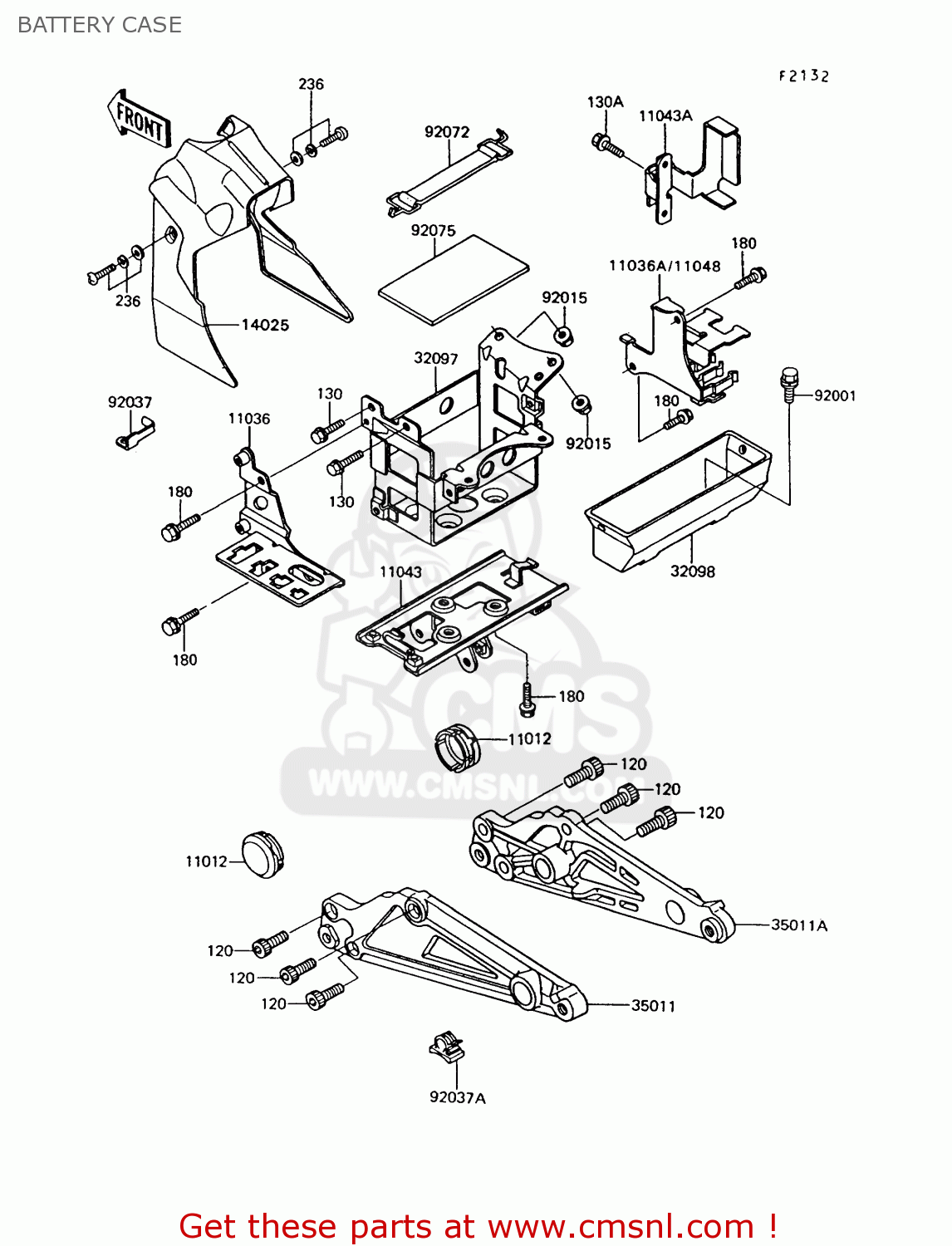

Battery case diagram Z550G8 GT550 1993 UNITED KINGDOM
BATTERY CASE Z550G8 GT550 1993 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
120
120S0825
ref: 120
BOLT-SOCKET
€ 3.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130C0812
ref: 130A
BOLT-FLANGED,8X12,BLA
€ 0.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
236
236C0635
ref: 236
SCREW-PAN-WSP-CROS
€ 2.50
11012
110121397
ref: 11012
CAP,SWING ARM SHAFT
€ 4.50
11036
110361827
ref: 11036
BRACKET-A,ELECTRIC,LH
€ 25.00
11036A
110361828
ref: 11036A
BRACKET-A,ELECTRIC,RH
€ 23.00
11043
110431469
ref: 11043
BRACKET,ELECTRIC BASE
€ 35.50
11043A
110431489
ref: 11043A
BRACKET,IGNITER
€ 23.00
14025
140251551
ref: 14025
COVER,FUEL TANK,FR
€ 25.00
32097
320971062
ref: 32097
CASE-BATTERY
€ 90.00
32098
320981022
ref: 32098
CASE-TOOL
€ 19.00
35011
350111152
ref: 35011
STAY,LH
€ 167.50
35011A
350111153
ref: 35011A
STAY,RH
€ 152.00
92001
920011862
ref: 92001
BOLT,W/SP,6X14
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92037
920371246
ref: 92037
CLAMP
€ 4.00
92037A
920371340
ref: 92037A
CLAMP,LEAD WIRE
€ 7.50
92072
920721097
ref: 92072
BAND,BATTERY
€ 10.50
92075
920751076
ref: 92075
DAMPER,BATTERY BASE
€ 6.00
