TAILLIGHT(S)
Z550G6 GT550 1989 EUROPE FG SP

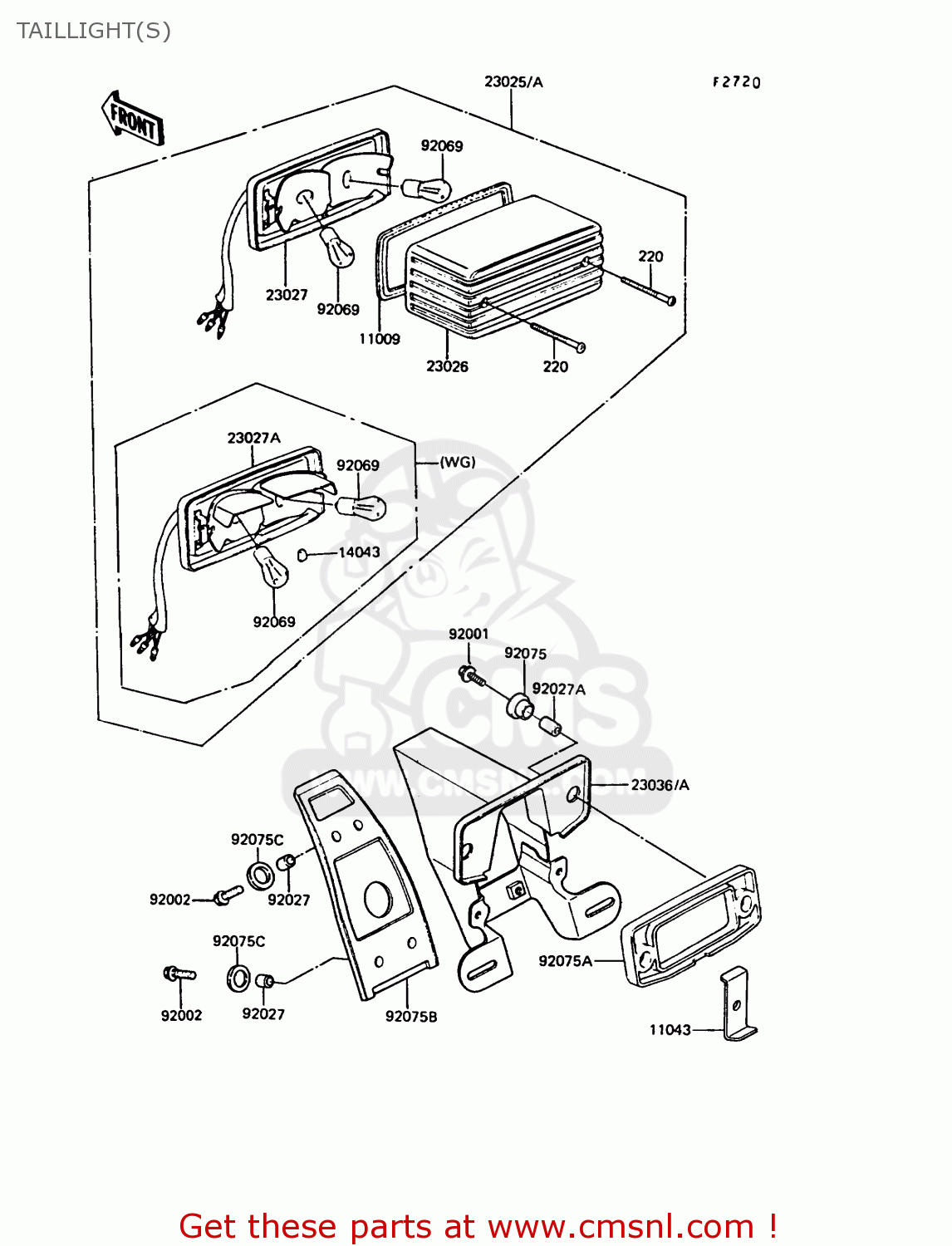

Taillight(s) diagram Z550G6 GT550 1989 EUROPE FG SP
TAILLIGHT(S) Z550G6 GT550 1989 EUROPE FG SP
×
prices are in EUR
ref
part #
description
quantity
220
220C0465
ref: 220
SCREW-PAN-CROS
€ 2.50
11009
110091221
ref: 11009
GASKET,TAIL LAMP (NAS)
€ 8.50
11043
110431006
ref: 11043
BRACKET-B,LICENSE PLA
€ 4.50
14043
140431004
ref: 14043
FILTER
€ 2.50
23025
230251040
ref: 23025
LAMP-TAIL
€ 175.00
23025A
230251134
ref: 23025A
LAMP-TAIL
€ 125.50
23026
230261075
ref: 23026
LENS,TAIL LAMP
€ 126.00
23027
230271026
ref: 23027
BODY-COMP-TAIL LAMP,B
€ 121.50
23027A
230271027
ref: 23027A
BODY-COMP-TAIL LAMP
€ 175.00
23036
230361047GB
ref: 23036
BRACKET-TAIL LAMP,P.B
€ 61.50
23036A
230361047M4
ref: 23036A
BRACKET-TAIL LAMP,L.P
€ 97.50
92001
920011568
ref: 92001
BOLT,6X22
€ 3.00
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92027A
92027169
ref: 92027A
COLLAR,6.8X10X16
€ 4.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92075
920751092
ref: 92075
DAMPER
€ 7.50
92075A
920751282
ref: 92075A
DAMPER,TAIL LAMP
€ 13.00
92075B
920751384
ref: 92075B
DAMPER,TAIL LAMP
€ 20.00
92075C
92075310
ref: 92075C
DAMPER,RUBBER
€ 2.50
