FRONT FORK
Z550G6 GT550 1989 EUROPE FG SP

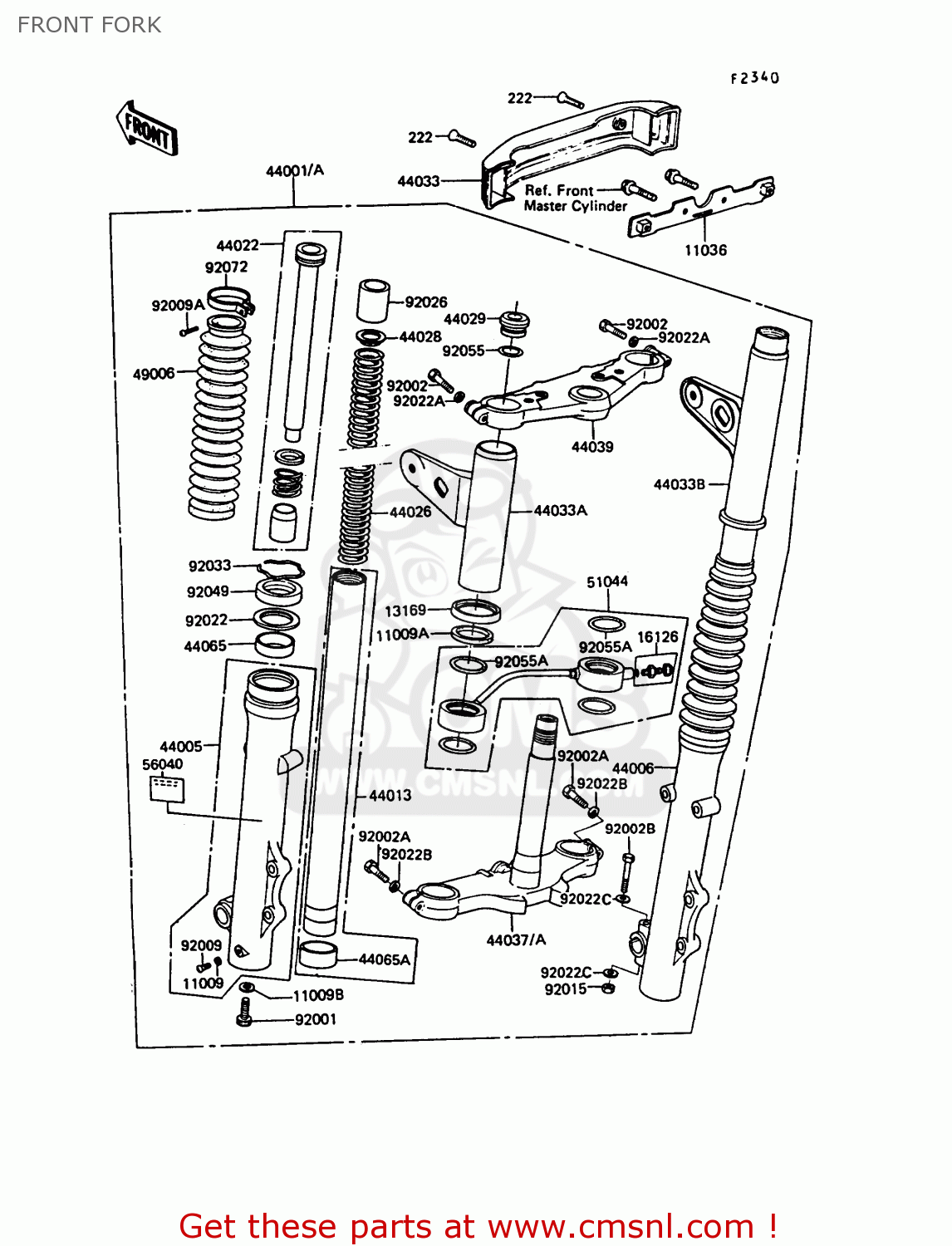

Front fork diagram Z550G6 GT550 1989 EUROPE FG SP
FRONT FORK Z550G6 GT550 1989 EUROPE FG SP
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045038
ref: 11009A
GASKET,FORK COVER (NAS)
€ 3.50
11009B
44045057
ref: 11009B
GASKET (NAS)
€ 3.00
11036
110361320
ref: 11036
BRACKET-A,FORK COVER
€ 19.00
13169
131691849
ref: 13169
PLATE,FORK COVER,LWR
€ 12.50
13169
131691849
ref: 13169
PLATE,FORK COVER,LWR
€ 12.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001
440011365
ref: 44001
FORK-FRONT
€ 2,427.50
44001A
440011445
ref: 44001A
FORK-FRONT,WG
€ 2,673.50
44005
440051143
ref: 44005
PIPE-LEFT FORK OUTER
€ 380.50
44006
440061143
ref: 44006
PIPE-RIGHT FORK OUTER
€ 345.00
44013
440131120
ref: 44013
PIPE-FORK INNER
€ 205.50
44022
440221093
ref: 44022
CYLINDER-FORK
€ 119.00
44026
440261201
ref: 44026
SPRING-FRONT FORK
€ 62.00
44028
44028033
ref: 44028
GUIDE-FORK SPRING
€ 6.00
44029
440291035
ref: 44029
SEAT-FORK SPRING
€ 16.50
44033
440331084
ref: 44033
COVER-FORK
€ 28.00
44033A
440331139
ref: 44033A
COVER-FORK,LH
€ 69.50
44033B
440331140
ref: 44033B
COVER-FORK,RH
€ 78.50
44037
440371093
ref: 44037
HOLDER-FORK UNDER
€ 209.00
44037A
440371105
ref: 44037A
HOLDER-FORK UNDER
€ 209.00
44039
440391062
ref: 44039
HOLDER-FORK UPPER
€ 238.50
44065
440651016
ref: 44065
BUSHING-FRONT FORK
€ 19.00
44065A
440651060
ref: 44065A
BUSHING-FRONT FORK,IN
€ 14.50
49006
490061096
ref: 49006
BOOT,FRONT FORK
€ 58.00
51044
510441026
ref: 51044
TUBE-ASSY,FRONT FORK
€ 146.00
56040
560401030
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92002
920021156
ref: 92002
BOLT,8X40
€ 4.00
92002A
920021157
ref: 92002A
BOLT,10X40
€ 4.50
92002B
920021299
ref: 92002B
BOLT,8X50
€ 5.50
92009
920091324
ref: 92009
SCREW,4X8
€ 2.50
92009A
920091345
ref: 92009A
SCREW,4X20
€ 3.00
92015
920151439
ref: 92015
NUT,U,8MM
€ 5.50
92022
920221275
ref: 92022
WASHER,FRONT FORK
€ 4.50
92022A
920221552
ref: 92022A
WASHER,SPRING,8MM
€ 2.50
222
222C0518
ref: 222
SCREW-CSK-RD-CROS
€ 2.50
92022B
920221553
ref: 92022B
WASHER,SPRING,10MM
€ 1.50
92022C
920221554
ref: 92022C
WASHER,PLAIN,8MM
€ 3.00
92026
920261142
ref: 92026
SPACER,FRONT FORK SPR
€ 6.00
92033
920331100
ref: 92033
RING-SNAP,FORK OIL SE
€ 9.50
92049
920491101
ref: 92049
SEAL OIL FRONT FORK
€ 16.50
92055
920551132
ref: 92055
RING-O,FORK SPRING SE
€ 4.00
92055A
920551140
ref: 92055A
RING-O,TUBE ASSY
€ 0.50
92072
920721168
ref: 92072
BAND,BOOT
€ 7.50
