FRONT HUB
Z550G3 GT550 1986 UNITED KINGDOM FG

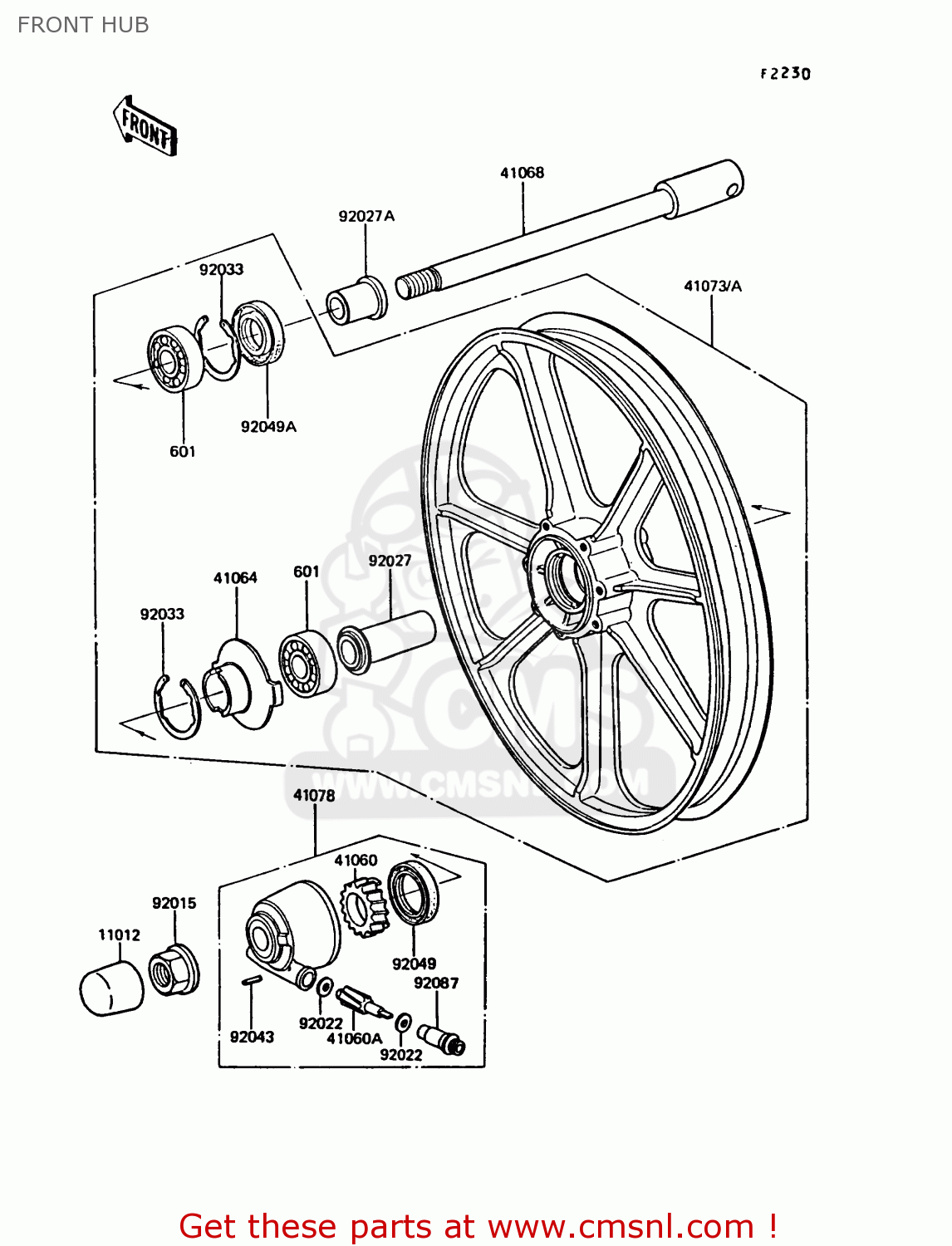

Front hub diagram Z550G3 GT550 1986 UNITED KINGDOM FG
FRONT HUB Z550G3 GT550 1986 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
601
601B6302UG
ref: 601
BEARING BALL
€ 29.00
41060
41059026
ref: 41060
GEAR,SPEEDOMETER
€ 27.00
41060A
410601016
ref: 41060A
PINION,SPEEDOMETER,9T
€ 21.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681009
ref: 41068
AXLE,FR,L=204
€ 44.50
41073A
41073113921
ref: 41073A
WHEEL-ASSY,FR,SOLID,F
€ 698.50
41078
410781013
ref: 41078
CASE-ASSY-METER GEAR
€ 120.00
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92022
41063001
ref: 92022
WASHER-THRST SPD PINI
€ 3.00
92027
920271223
ref: 92027
COLLAR,FR HUB L=55M/M
€ 5.50
92027A
920271225
ref: 92027A
COLLAR,FR AXLE L=30MM
€ 11.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92043
41082001
ref: 92043
PIN-SPRING
€ 2.50
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491058
ref: 92049A
OIL SEAL,BJN22425
€ 7.50
92087
920871002
ref: 92087
BUSHING-METER GEAR
€ 14.50
