CYLINDER/PISTON(S)

Z550G3 GT550 1986 UNITED KINGDOM FG

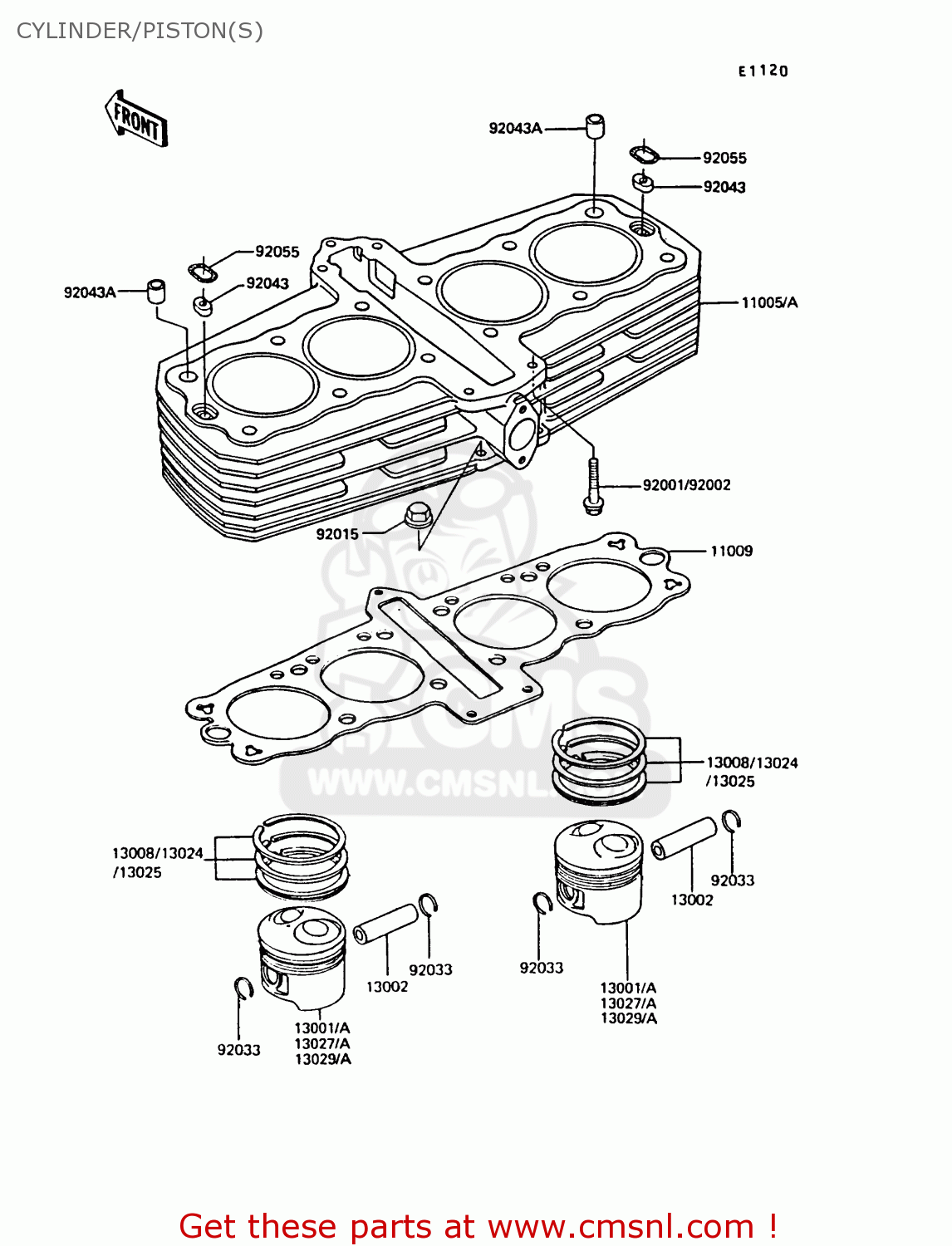

Cylinder/piston(s) diagram Z550G3 GT550 1986 UNITED KINGDOM FG

prices are in EUR

ref

part #

description

quantity

11005A

110051313
ref: 11005A

CYLINDER-ENGINE

€ 971.00

11009

110091294
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 26.50

13001A

130011121
ref: 13001A

PISTON-ENGINE,STD

€ 33.50

13002

130021012
ref: 13002

PIN-PISTON

€ 15.50

13008

130081009
ref: 13008

RING-SET-PISTON,STD

€ 54.50

13024

130241010
ref: 13024

RING-SET-PISTON LL,O/

€ 61.50

13025

130251010
ref: 13025

RING-SET-PISTON L,O/S

€ 64.50

13027A

130271053
ref: 13027A

PISTON-ENGINE LL,O/S

€ 31.50

13029A

130291055
ref: 13029A

PISTON-ENGINE L,O/S 0

€ 52.50

92002

920021104
ref: 92002

BOLT,6X28

€ 3.50

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92033

920331050
ref: 92033

RING-SNAP

€ 2.00

92043

920431059
ref: 92043

PIN,OIL LINE

€ 4.50

92043A

920431265
ref: 92043A

PIN,9.2X12X14

€ 4.50

92055

920551147
ref: 92055

RING-O,CYLINDER OIL L

€ 6.00
