FRAME FITTINGS

VN900D7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA / LT

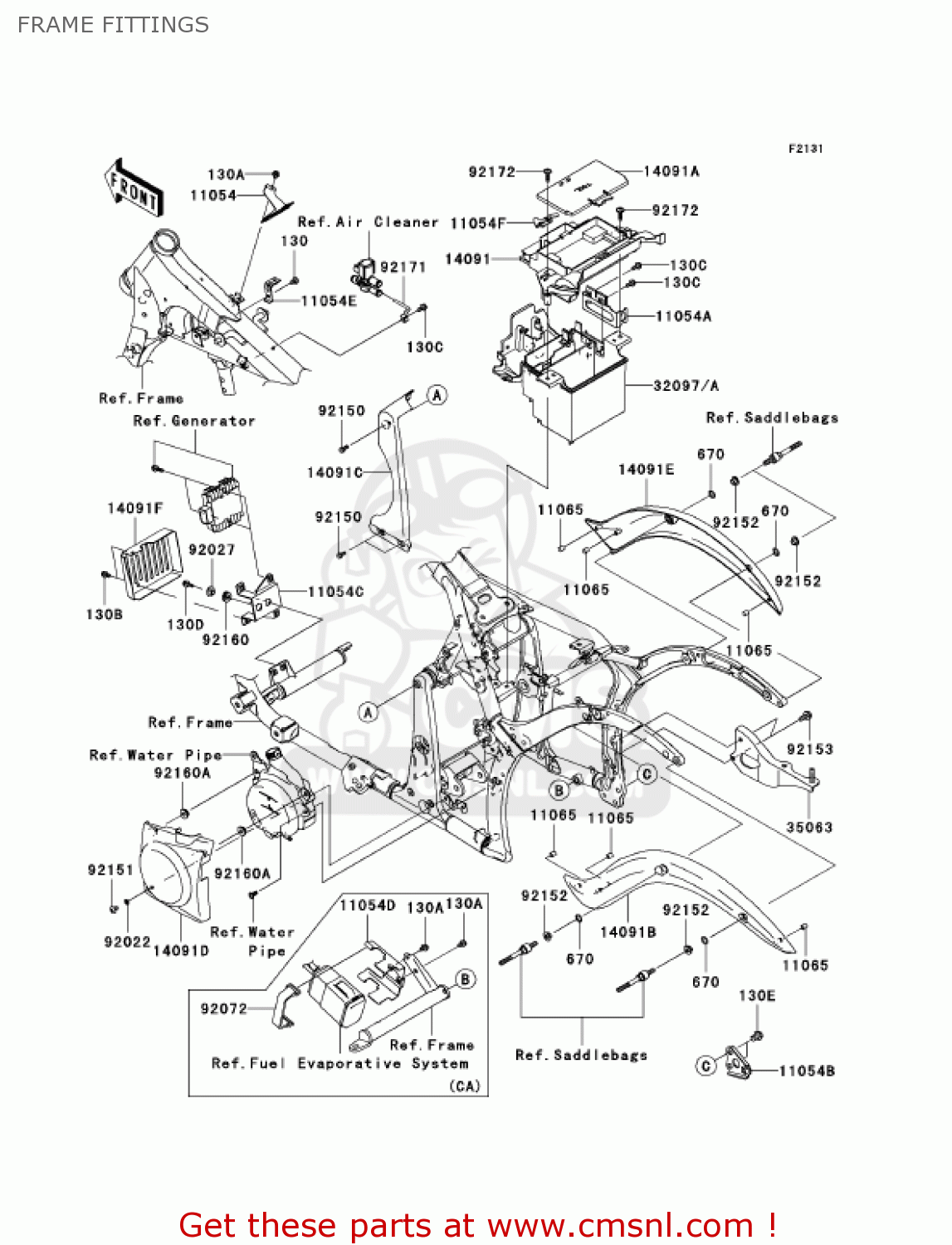

Frame fittings diagram VN900D7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA / LT

FRAME FITTINGS VN900D7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA / LT
FRAME FITTINGS VN900D7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA / LT
FRAME FITTINGS VN900D7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA / LT
prices are in EUR
ref
part #
description
quantity
130
130BA0610
ref: 130
BOLT-FLANGED,6X10
130BA0610
€ 0.50
130A
130L0610
ref: 130A
[CN,US
BOLT-FLANGED
€ 1.50
130A
130L0610
ref: 130A
[CA]
BOLT-FLANGED
€ 1.50
130B
130L0612
ref: 130B
BOLT-FLANGED
€ 1.50
130C
130L0614
ref: 130C
BOLT-FLANGED
130L0614
€ 1.50
130D
130L0620
ref: 130D
BOLT-FLANGED
130L0620
€ 2.00
130E
130L1014
ref: 130E
BOLT-FLANGED,10X14
€ 1.50
670
670B2012
ref: 670
O RING,12MM
670B2012
€ 1.00
11054
110540119
ref: 11054
BRACKET,FRONT COUPLER
€ 19.50
11054A
110540120
ref: 11054A
BRACKET,RELAY BOX
€ 13.50
11054B
110540122
ref: 11054B
BRACKET,MUFFLER
110540122
€ 7.50
11054C
110540124
ref: 11054C
BRACKET,REGULATOR
110540124
€ 16.00
11054D
110540147
ref: 11054D
[CA]
BRACKET,CANISTER
€ 12.00
11054E
110540736
ref: 11054E
BRACKET,BOOST SENSOR
€ 4.50
11054F
110540738
ref: 11054F
BRACKET,HELMET LOCK
110540738
€ 15.00
11065
110650156
ref: 11065
CAP
110650156
€ 1.50
14091
140910519
ref: 14091
COVER,BATTERY CASE&TO
€ 19.50
14091A
140910520
ref: 14091A
COVER,TOOL CASE
140910520
€ 5.00
14091B
140910521
ref: 14091B
COVER,FENDER,LH
€ 70.00
14091C
140910526
ref: 14091C
COVER,PIVOT
€ 8.50
14091D
140910629
ref: 14091D
COVER,RESERVOIR TANK
140910629
€ 55.00
14091E
140910638
ref: 14091E
COVER,FENDER,RH
140910638
€ 70.00
14091F
140910639
ref: 14091F
COVER,REGULATOR
€ 15.50
32097A
320970021
ref: 32097A
CASE-BATTERY
320970021
€ 42.00
35063
35063034211E
ref: 35063
STAY,MUFFLER,F.S.BLAC
35063034211E
€ 65.00
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
920271848
ref: 92027
COLLAR,L=7.4
920271848
€ 2.50
92072
920721384
ref: 92072
[CA]
BAND
920721384
€ 9.50
92150
921501689
ref: 92150
BOLT,FLANGED,6X14
921501689
€ 2.00
92151
921511940
ref: 92151
BOLT,SOCKET,6X12
921511940
€ 2.50
92152
921520381
ref: 92152
COLLAR
921520381
€ 3.50
92153
921531704
ref: 92153
BOLT,FLANGED,8X20
921531704
€ 2.00
92160
921601278
ref: 92160
DAMPER
921601278
€ 3.00
92160A
921601613
ref: 92160A
DAMPER
921601613
€ 2.50
92171
921710600
ref: 92171
CLAMP
€ 5.00
92172
921720137
ref: 92172
SCREW,6X26
921720137
€ 3.00
