CYLINDER/PISTON(S)

VN900D7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA / LT

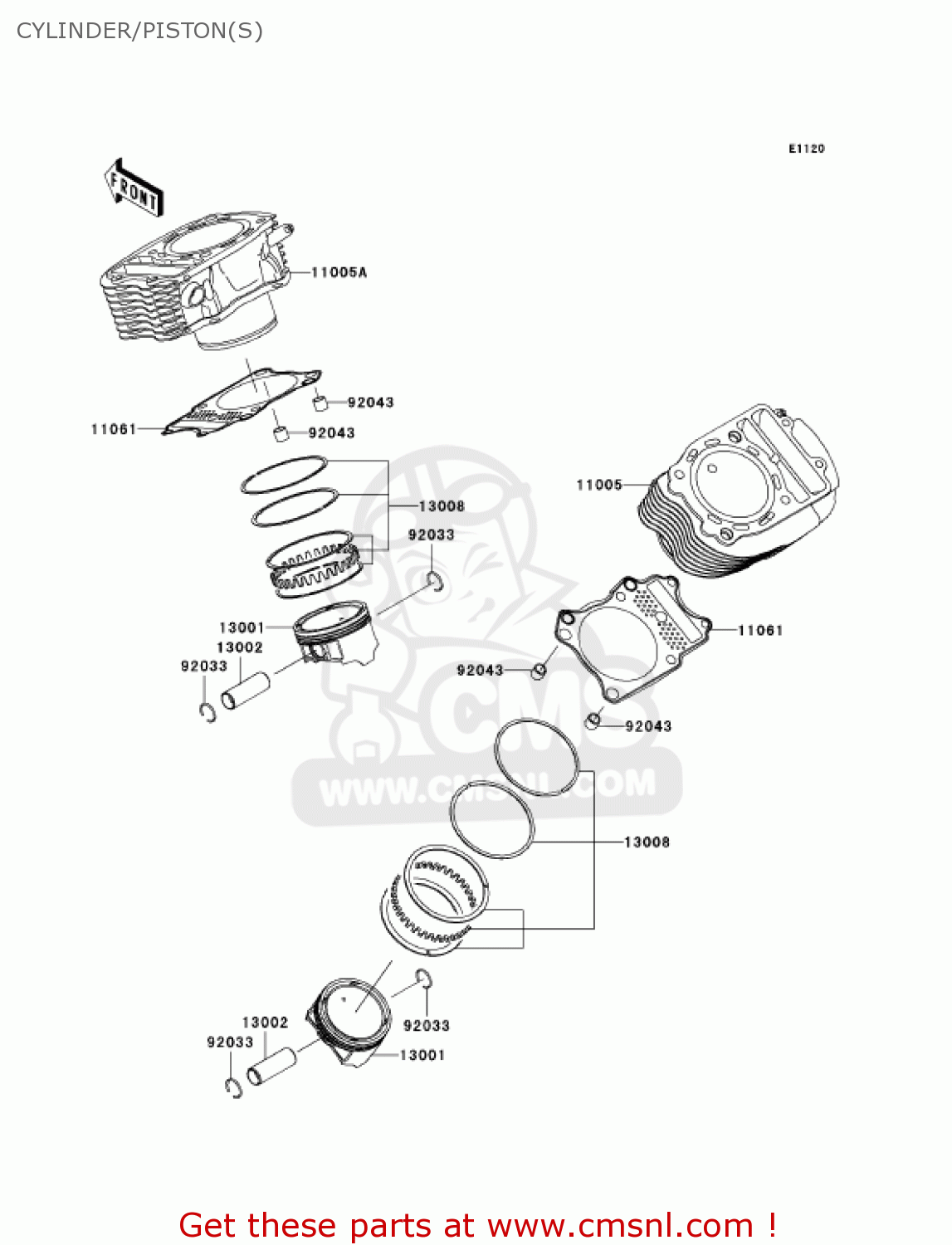

Cylinder/piston(s) diagram VN900D7F VULCAN 900 CLASSIC 2007 USA CALIFORNIA CANADA / LT

prices are in EUR

ref

part #

description

quantity

11005

110050062
ref: 11005

CYLINDER-ENGINE,RR

€ 818.50

11005A

110050085
ref: 11005A

CYLINDER-ENGINE,FR

€ 818.50

11061

110610206
ref: 11061

GASKET,CYLINDER BASE (NAS)

€ 12.50

13001

130010067
ref: 13001

PISTON-ENGINE

€ 92.50

13002

130020011
ref: 13002

PIN-PISTON

€ 11.50

13008

130080021
ref: 13008

RING-SET-PISTON

€ 52.00

92033

920331188
ref: 92033

RING-SNAP

€ 2.50

92043

920431266
ref: 92043

PIN,11X14X12.3

€ 1.00
