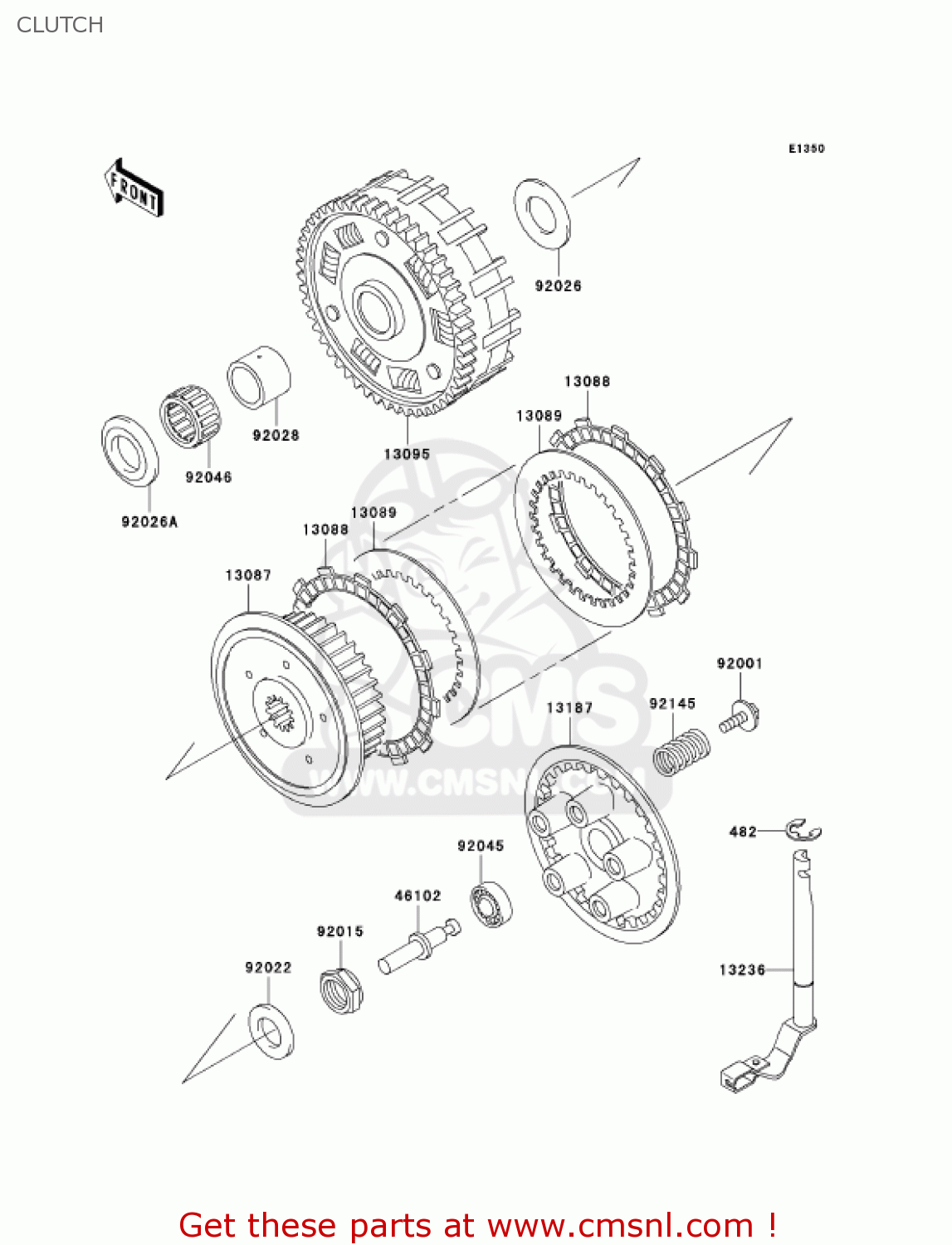

CLUTCH

ref

part #

description

quantity

482

482J0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

13087

13087042
ref: 13087

HUB,CLUTCH

€ 133.00

13088

130881133
ref: 13088

PLATE-FRICTION (NAS)

€ 12.50

13089

13089027
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 7.50

13095

130951375
ref: 13095

HOUSING-COMP-CLUTCH

€ 498.50

13187

131871006
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 58.00

13236

132361269
ref: 13236

LEVER-COMP,CLUTCH REL

€ 26.50

46102

461021374
ref: 46102

ROD,PULL

€ 13.50

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92015

920151555
ref: 92015

NUT,20MM

€ 9.00

92022

920221868
ref: 92022

WASHER

€ 6.50

92026

92026022
ref: 92026

SPACER,25.5X47X2.5

€ 6.50

92026A

92026116
ref: 92026A

SPACER,THRUST,T=5.5MM

€ 12.00

92028

92028178
ref: 92028

BUSHING,CLUTCH

€ 17.00

92045

920451235
ref: 92045

BEARING-BALL,6001C3ML

€ 15.50

92046

92046028
ref: 92046

BEARING-NEEDLE,KTV323

€ 20.50

92145

921451264
ref: 92145

SPRING,CLUTCH

€ 6.50

all assemblies
