CHASSIS ELECTRICAL EQUIPMENT

VN800E4 VULCAN 800 DRIFTER 2004 USA CALIFORNIA

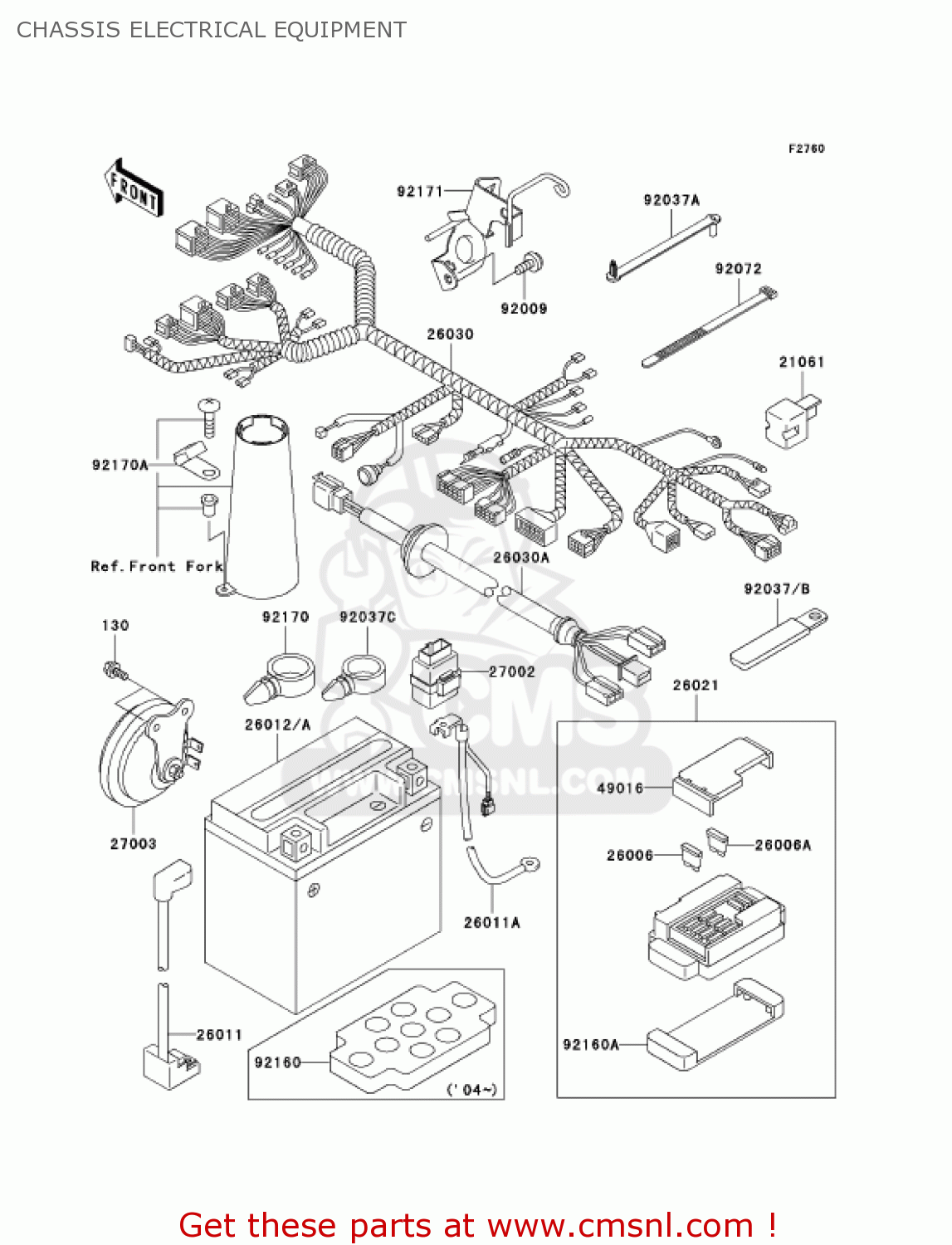

Chassis electrical equipment diagram VN800E4 VULCAN 800 DRIFTER 2004 USA CALIFORNIA

CHASSIS ELECTRICAL EQUIPMENT VN800E4 VULCAN 800 DRIFTER 2004 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT VN800E4 VULCAN 800 DRIFTER 2004 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT VN800E4 VULCAN 800 DRIFTER 2004 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111777
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 39.50
26011A
260111778
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 31.50
26012
260121330
ref: 26012
BATTERY,YTX12BS,12V10
€ 120.50
26021
260211096
ref: 26021
JUNCTION BOX
260211096
€ 112.00
26030
260301810
ref: 26030
HARNESS,MAIN
€ 207.00
26030A
260301819
ref: 26030A
HARNESS,RR
€ 92.50
27002
270021111
ref: 27002
RELAY-ASSY,SIGNAL LAM
€ 95.50
27003
270031417
ref: 27003
HORN
€ 61.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92009
920091662
ref: 92009
SCREW
920091662
€ 2.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371290
ref: 92037A
CLAMP,CARBURETOR
920371290
€ 4.50
92037B
920371539
ref: 92037B
CLAMP,L=45
920371539
€ 3.00
92037C
920371827
ref: 92037C
CLAMP,HOSE
920371827
€ 5.00
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
92160
921601635
ref: 92160
DAMPER,BATTERY
€ 21.00
92160A
921601650
ref: 92160A
DAMPER,JUNCTION BOX
921601650
€ 9.50
92170
921701067
ref: 92170
CLAMP,HOSE
921701067
€ 5.00
92170A
921701900
ref: 92170A
CLAMP
€ 4.00
92171
921711087
ref: 92171
CLAMP,HARNESS
€ 13.50
