REAR WHEEL/CHAIN

VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA

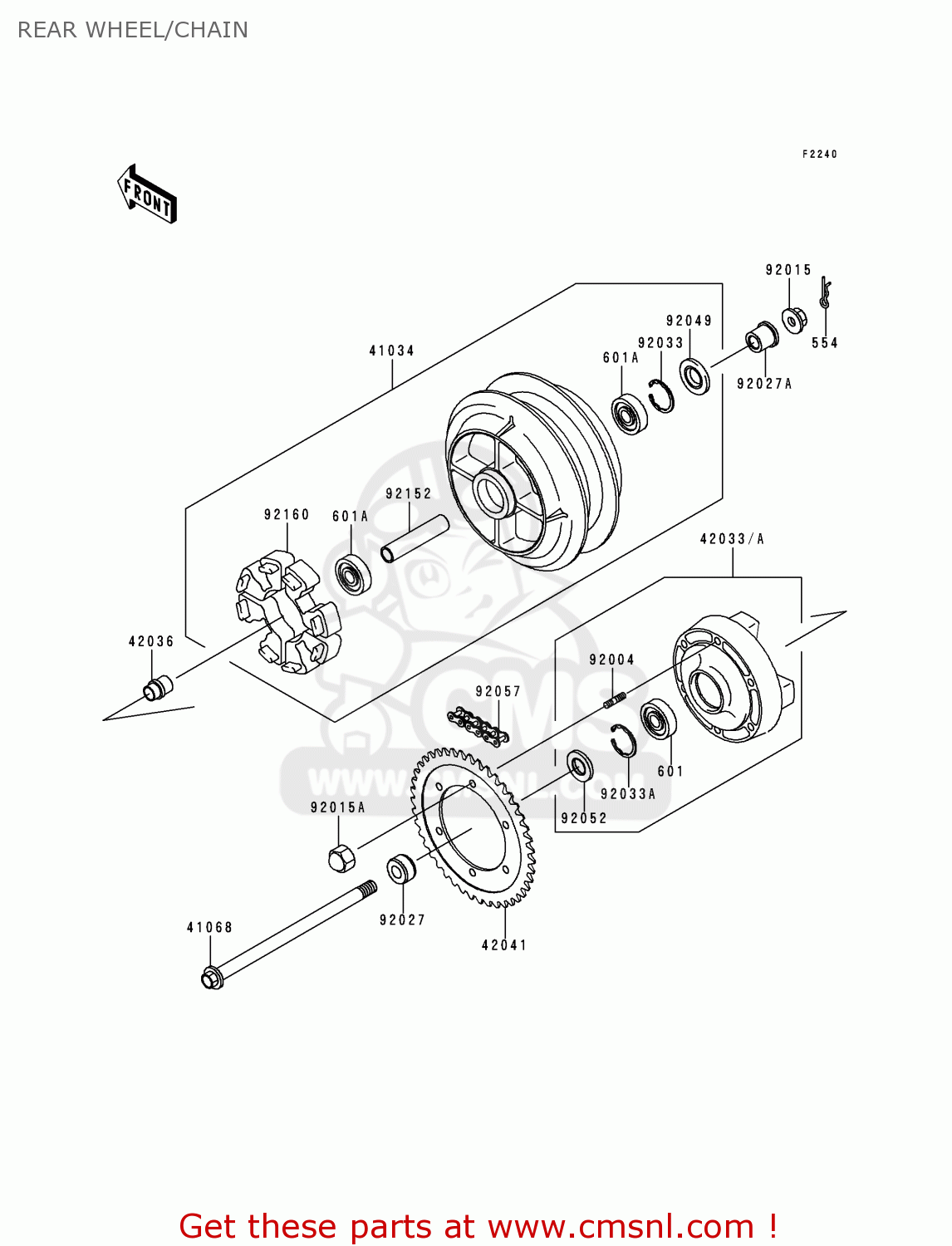

Rear wheel/chain diagram VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA

REAR WHEEL/CHAIN VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
554
554A1000
ref: 554
PIN-SNAP,10MM
554A1000
€ 1.00
601
601B6205UG
ref: 601
BEARING-BALL,#6205UG
601B6205UG
€ 27.00
601A
601B6303UU
ref: 601A
BEARING-BALL,6303LLUC
601B6303UU
€ 30.50
41034
410341299
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 679.50
41068
410681365
ref: 41068
AXLE,RR
€ 59.50
42033A
420331204
ref: 42033A
COUPLING-ASSY,RR HUB
€ 194.50
42036
420361146
ref: 42036
SLEEVE,RR HUB,L=33
420361146
€ 34.00
42041
420411519
ref: 42041
SPROCKET-HUB,40T
€ 69.00
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
920151946
ref: 92015
NUT
920151946
€ 8.50
92015A
920151961
ref: 92015A
NUT,CAP,10MM
920151961
€ 6.50
92027
920271321
ref: 92027
COLLAR,REAR AXLE,LH,L
920271321
€ 17.00
92027A
920271875
ref: 92027A
COLLAR,RR AXLE,L=28
920271875
€ 16.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571284
ref: 92057
CHAIN,112L
920571284
€ 215.00
92152
921521117
ref: 92152
COLLAR,RR HUB,L=101
€ 19.50
92160
921601697
ref: 92160
DAMPER,SHOCK,RR HUB
921601697
€ 16.00
