HEADLIGHT(S)

VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA

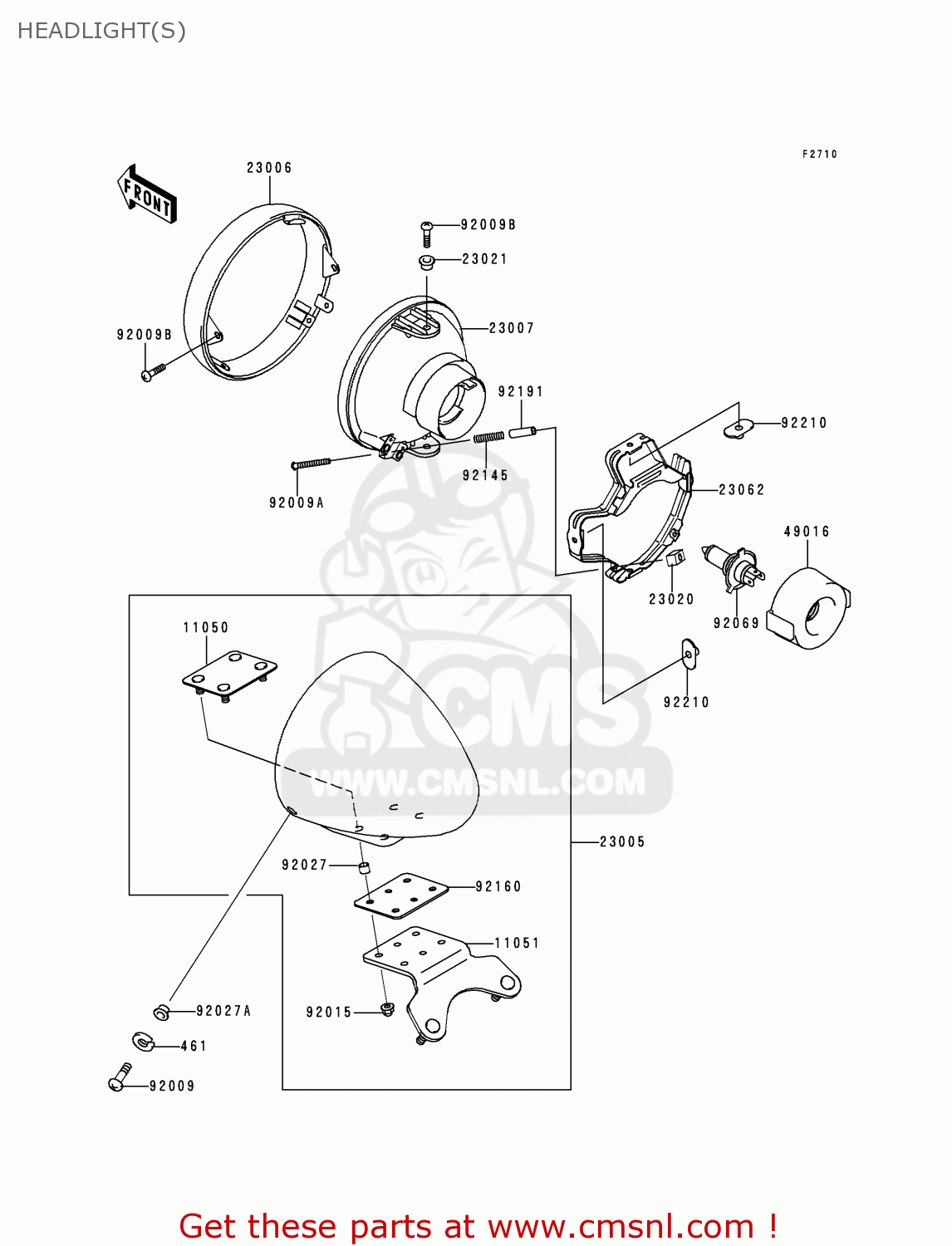

Headlight(s) diagram VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA

HEADLIGHT(S) VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA
HEADLIGHT(S) VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA
HEADLIGHT(S) VN800C2 VULCAN 800 DRIFTER 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
461K0500
€ 0.50
11050
110501978
ref: 11050
BRACKET,HEAD LAMP BOD
€ 44.00
11051
110511085
ref: 11051
BRACKET,HEAD LAMP BOD
€ 19.00
23005
23005117210
ref: 23005
BODY-COMP-HEAD LAMP,B
23005117210
€ 237.00
23006
230061079
ref: 23006
RIM-LAMP
€ 75.50
23007
230071359
ref: 23007
LENS-COMP,HEAD LAMP
230071359
€ 148.00
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
23062
230621131
ref: 23062
BRACKET-COMP,HEAD LAM
€ 40.00
49016
490161203
ref: 49016
COVER-SEAL,SOCKET
490161203
€ 12.00
92009
920091693
ref: 92009
SCREW,5X16
920091693
€ 2.50
92009A
920091816
ref: 92009A
SCREW
920091816
€ 3.50
92009B
920091879
ref: 92009B
SCREW,5X16
920091879
€ 1.00
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92027
92027103
ref: 92027
COLLAR
92027103
€ 2.50
92027A
920271503
ref: 92027A
COLLAR,HEAD LAMP,BLAC
920271503
€ 2.50
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92145
921451268
ref: 92145
SPRING,HEAD LAMP LENS
921451268
€ 3.00
92160
921601960
ref: 92160
DAMPER
€ 6.00
92191
921911217
ref: 92191
TUBE
921911217
€ 1.50
92210
922101060
ref: 92210
NUT
922101060
€ 1.50
