TAILLIGHT(S)

VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST

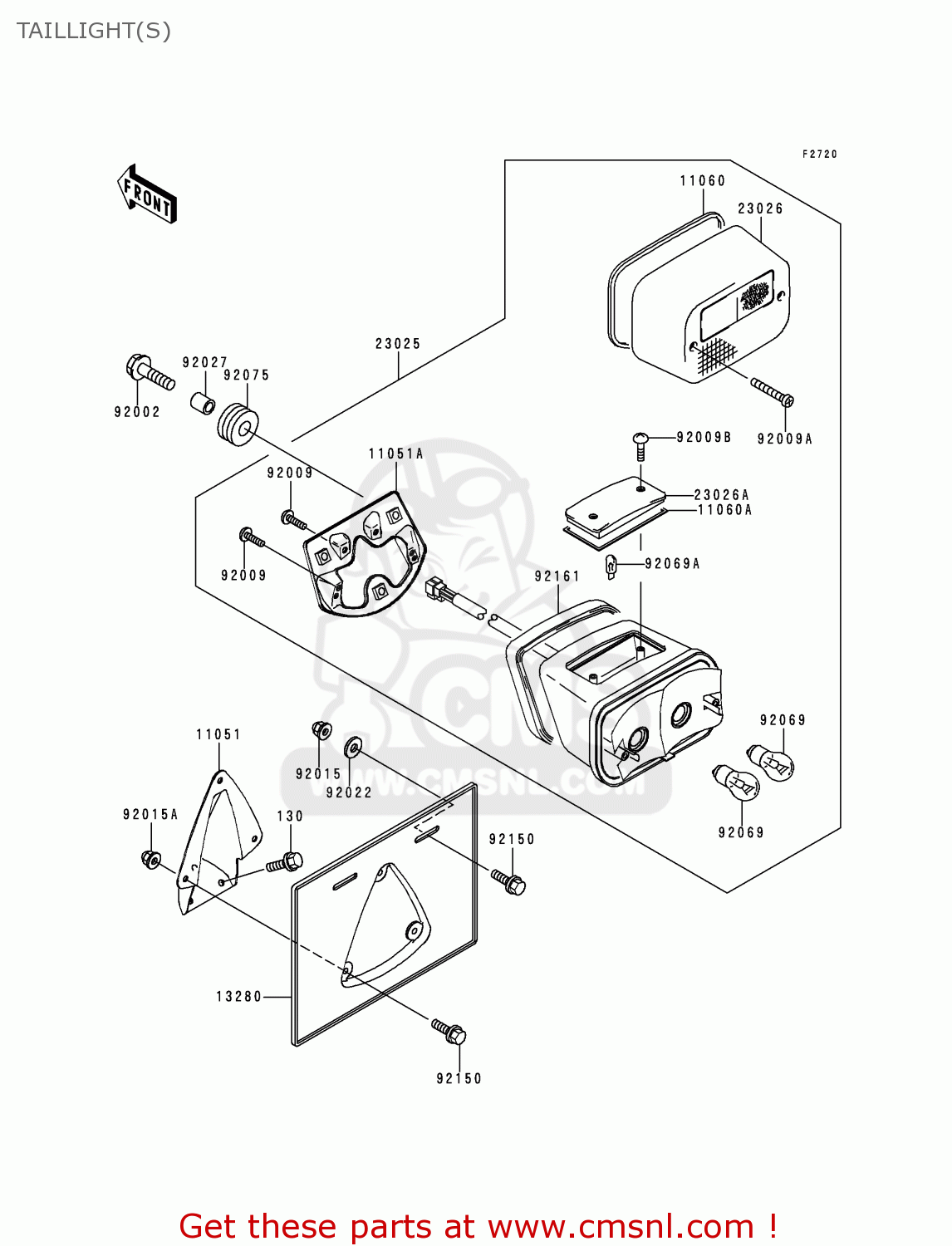

Taillight(s) diagram VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST

TAILLIGHT(S) VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST
TAILLIGHT(S) VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST
TAILLIGHT(S) VN800B5 VN800 CLASSIC 2000 EURO UK FR NL AR FG IS IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130V0610
ref: 130
BOLT-FLANGED,6X10
130V0610
€ 0.50
11051
110511553
ref: 11051
BRACKET,LISENSE HOLDE
110511553
€ 61.50
11051A
110511554
ref: 11051A
BRACKET,TAIL LAMP
110511554
€ 8.00
11060
110601948
ref: 11060
GASKET,TAIL LAMP (NAS)
€ 5.00
11060A
110601949
ref: 11060A
GASKET,LICENSE LENS (NAS)
110601949
€ 2.00
13280
132801151
ref: 13280
HOLDER,LICENSE PLATE
132801151
€ 16.50
23025
230251299
ref: 23025
LAMP-TAIL
€ 280.50
23026
230261225
ref: 23026
LENS,TAIL
230261225
€ 54.50
23026A
230261226
ref: 23026A
LENS,LICENSE
230261226
€ 6.50
92002
920021262
ref: 92002
BOLT,6X22
920021262
€ 2.00
92009
920091140
ref: 92009
SCREW,TAPPING,4X14
920091140
€ 2.50
92009A
920091911
ref: 92009A
SCREW,TAPPING,4X50
€ 1.00
92009B
920091912
ref: 92009B
SCREW,TAPPING,4X16
920091912
€ 0.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151385
ref: 92015A
NUT,CAP,6MM
920151385
€ 2.50
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92069A
920691016
ref: 92069A
BULB,12V 5W
920691016
€ 4.00
92075
92075209
ref: 92075
DAMPER RUBBER
92075209
€ 3.00
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
92161
921611100
ref: 92161
DAMPER,TAIL LAMP
€ 12.00
